AI Shapes Confident Wrist Care
The integrated AI driven analyzes live ultrasound images to provide real-time feedback on probe positioning, technique, and to identify anatomical landmarks.A wrist ultrasound mainly visualizes the flexor tendons (FDP and FDS), pronator quadratus (PQ) muscle, and radius bone, which are key anatomical structures in the forearm's volar (palm) side. The FDP and FDS are the deep and superficial flexor tendons, respectively; the PQ is a deep muscle that lies over the radius and ulna; and the radius is the larger of the two forearm bones on the thumb side. This imaging technique is used to assess for injuries and conditions affecting these structures, such as tendon or nerve damage.

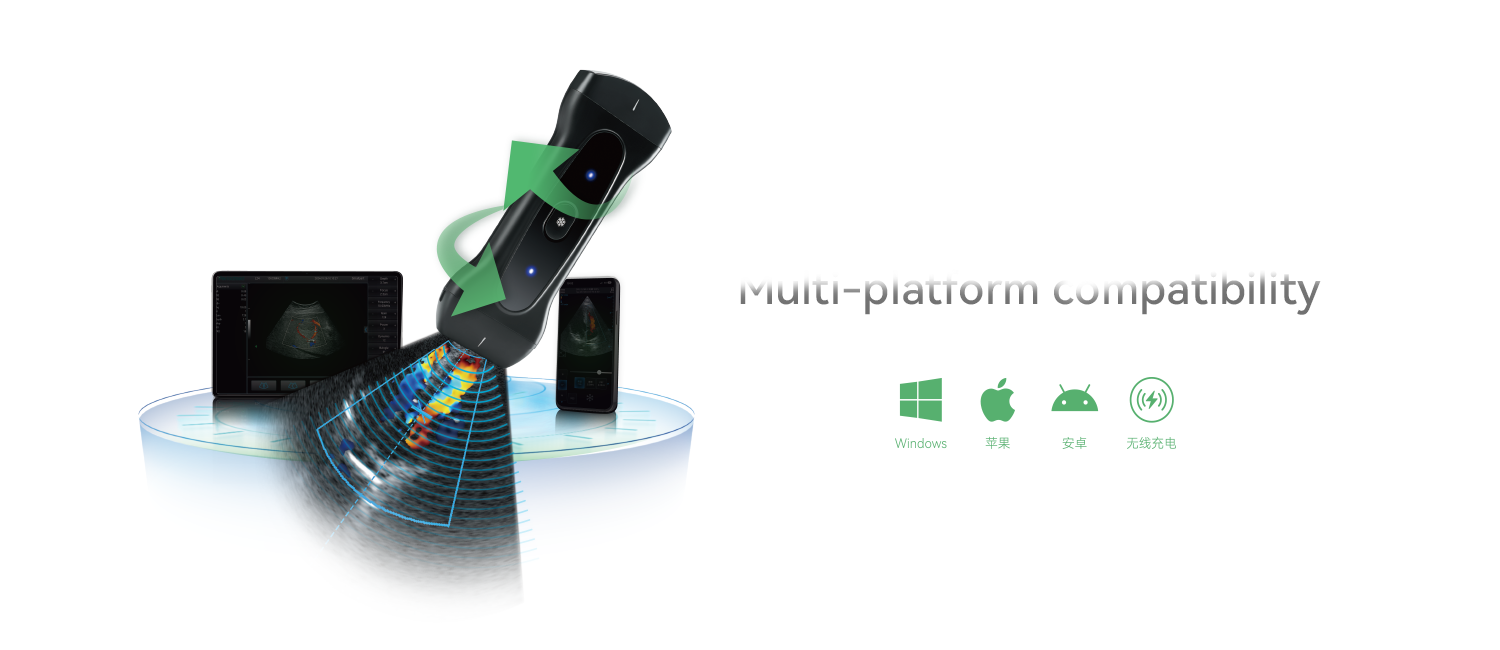

Seamless Connectivity for Modern Healthcare
Aura series enables seamless workflow with its compatibility, freeing providers from cords/fixed setups for flexible care. It is compatible to Android, iOS, and Windows devices, simplifying access to its capabilities. For on-the-spot urgent care assessments or critical setting monitoring, its portability + connectedness ensures caregivers have needed tools timely—boosting care efficiency.

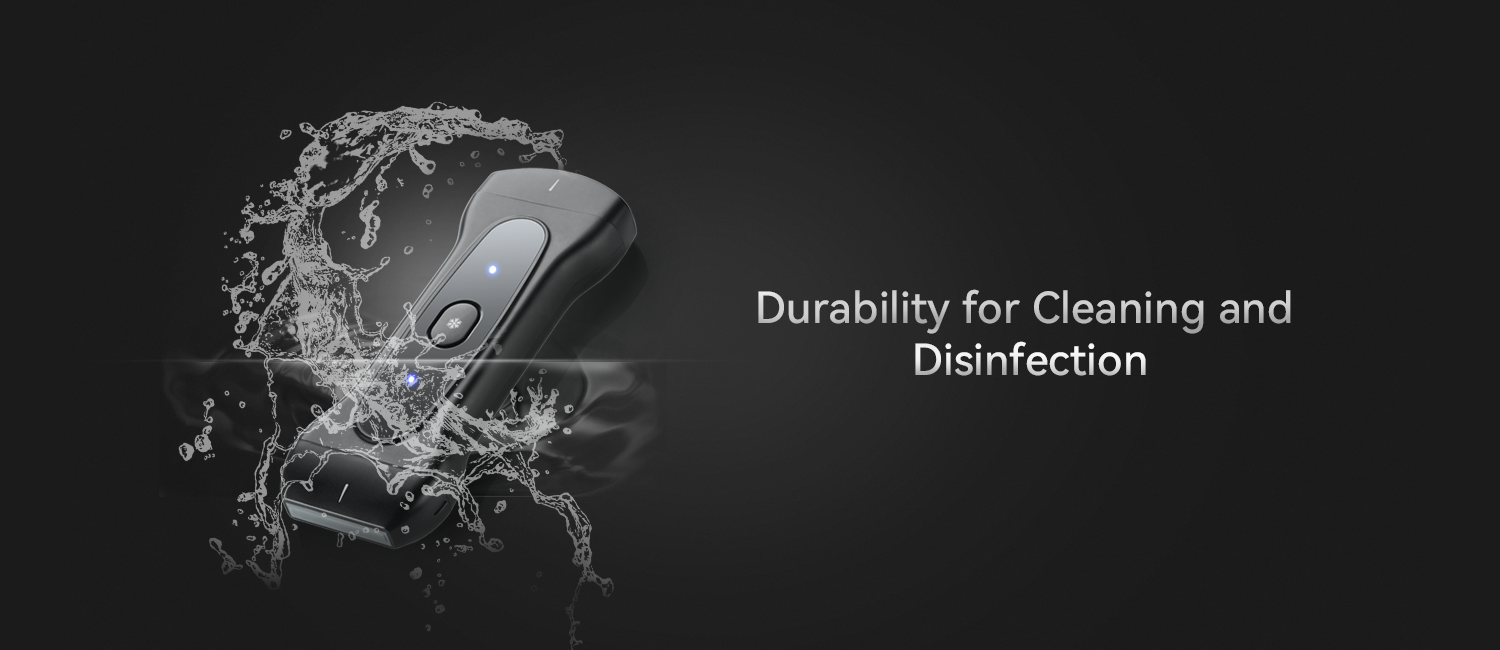

Durable for Cleaning and Disinfection
Aura series excels in durability for cleaning and disinfection—ideal for healthcare settings. It’s cable-free, so it can be easily wrapped in a sterile cover to avoid contamination. With an IPX7 waterproof and dustproof rating, the device is fully immersible, making thorough disinfection simple and effective. This design ensures it stays reliable even after frequent cleaning, supporting safe, hygienic care.

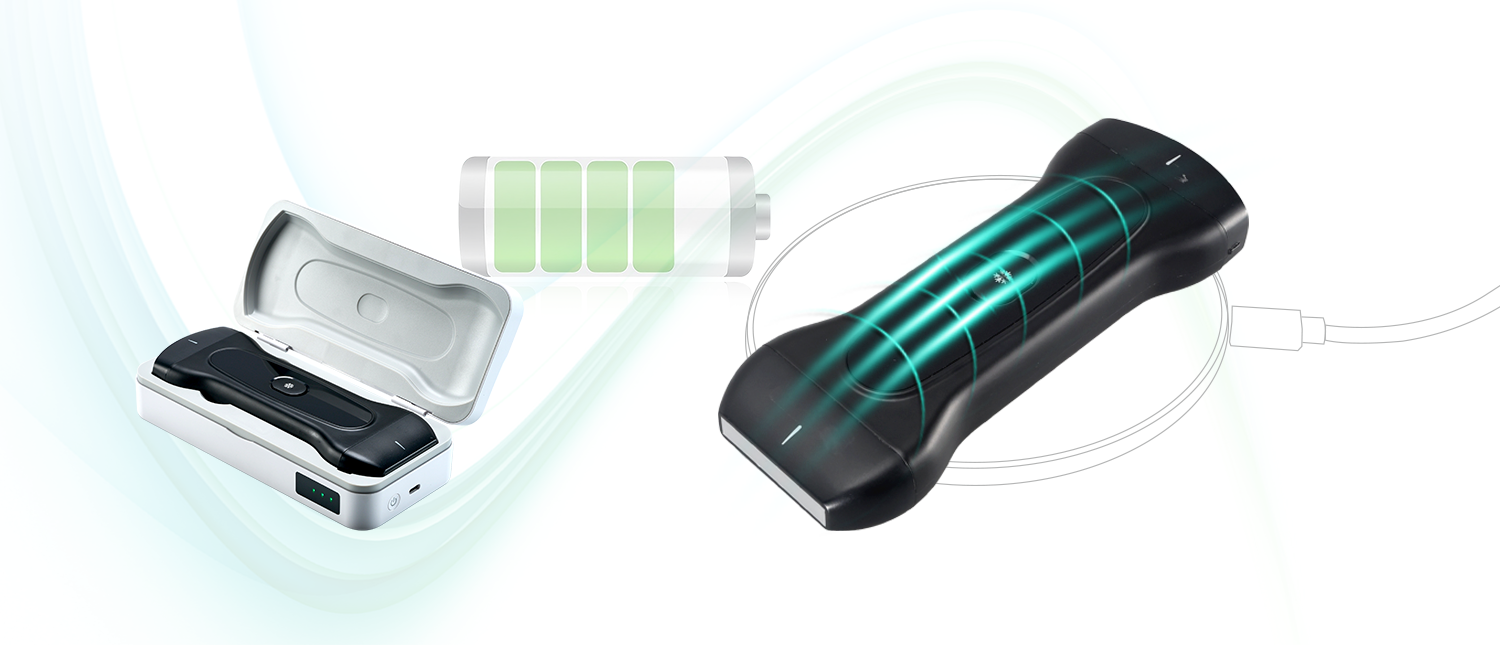

Wireless Charge in a Small Case
Aura series boasts a standout accessory—a compact “small capsule” that packs big power. It serves dual purposes: not only as a protective case to shield Aura device from scratches or impacts in busy medical settings but also as a portable charger, enabling wireless charging on the go. The case keeps Aura running for a full day with a single charge, ensuring uninterrupted use during long shifts. It also supports fast wireless charging, cutting down on waiting time when power is low. This makes it highly adaptable to diverse scenarios—whether in sports medicine for on-field injury assessments, clinics for daily patient checks, or emergency situations where quick charge is needed.

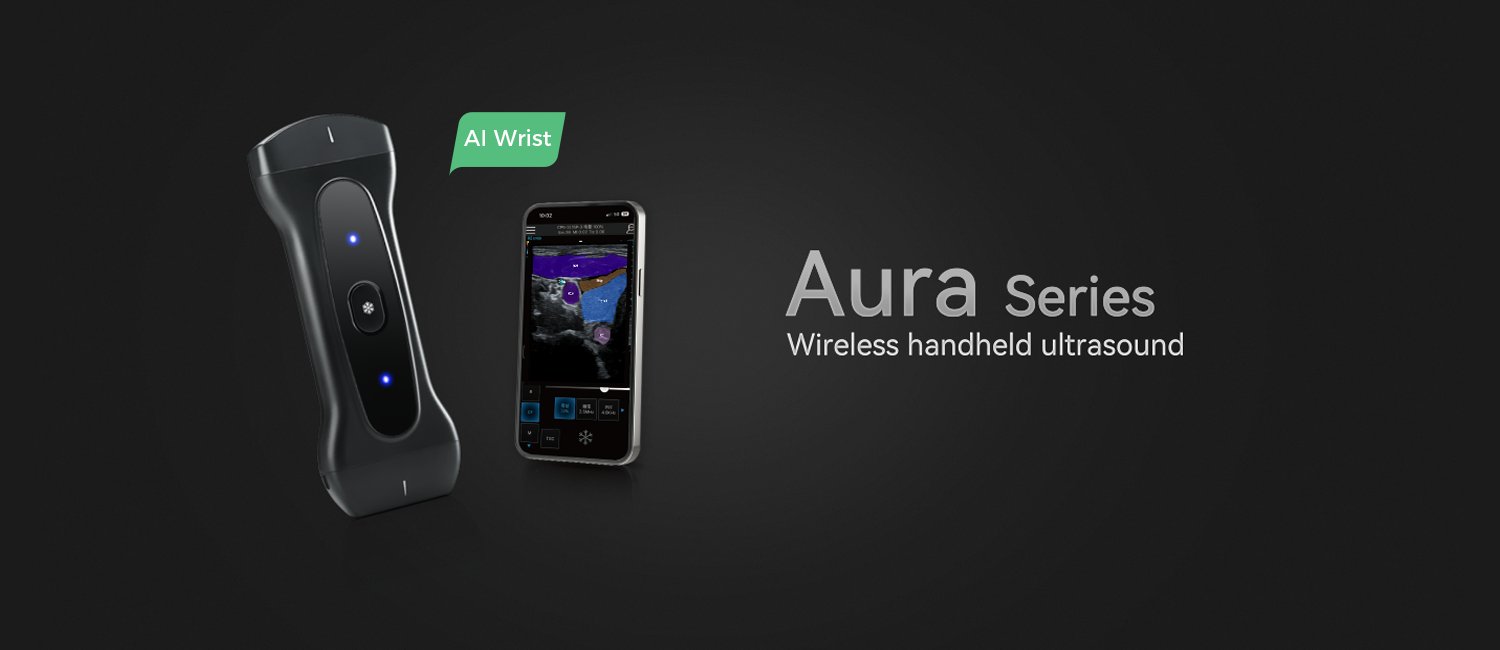

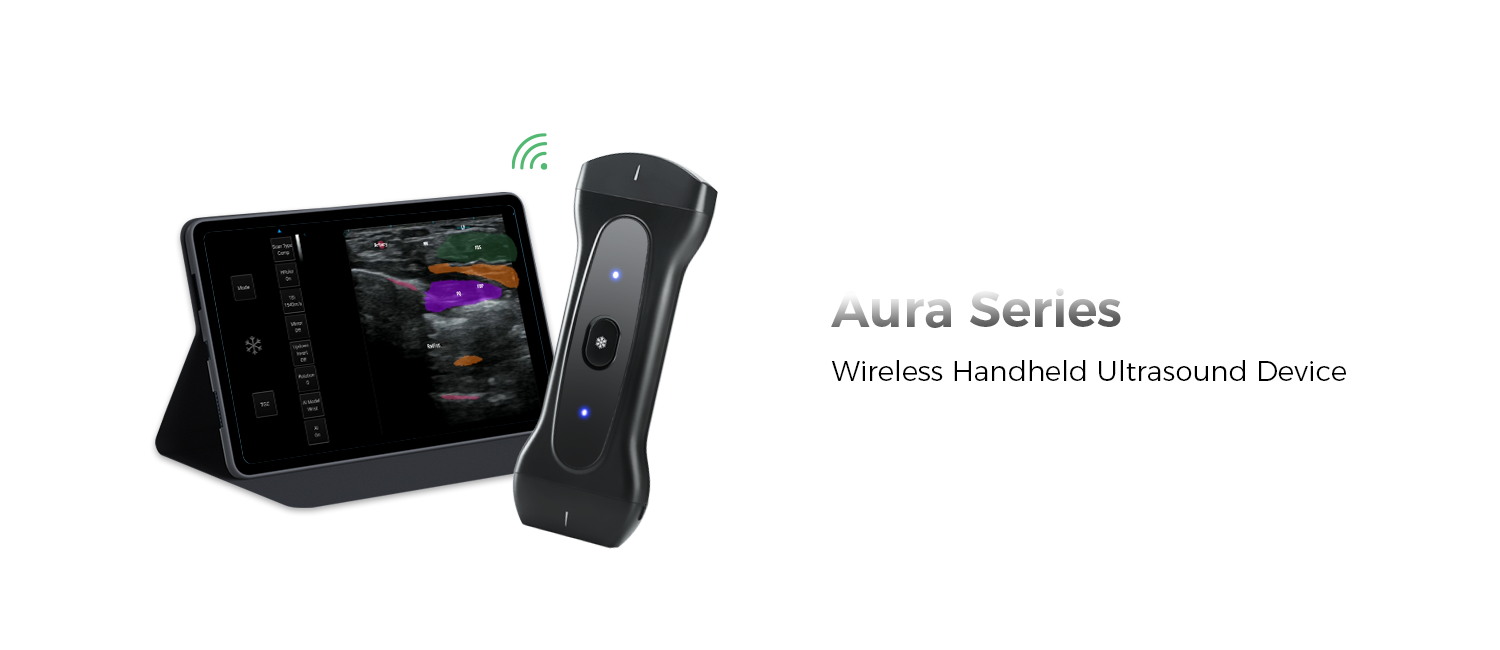

AI is rapidly evolving and is being integrated into portable ultrasound devices to make ultrasound imagings easier to read. Aura AI Device keeps portability in mind to make ultrasound scanning quick and easy.






AI Ultrasound Enhances Wrist Care
A wrist ultrasound mainly visualizes the flexor tendons (FDP and FDS), pronator quadratus (PQ) muscle, and radius bone, which are key anatomical structures in the forearm's volar (palm) side. The FDP and FDS are the deep and superficial flexor tendons, respectively; the PQ is a deep muscle that lies over the radius and ulna; and the radius is the larger of the two forearm bones on the thumb side. This imaging technique is used to assess for injuries and conditions affecting these structures, such as tendon or nerve damage.

Convex | Linear | Phased Array | |
Frequency: | 2.5 / 3.5 / 4.0 / 5.0 / 6.0 / H3.6 / H4.0 / H5.0 / H6.0MHz | 5.0 / 7.5 / 9.0 / 10.5 / 12 / H10 / H12MHz | 2.5 / 3.5 / 4.0 / 5.0 / 6.0 / H3.6 / H4.0 / iH3.6 / iH4.0MHz |
| Depth: | 40-300 | 20-150 | 40-300 |
Gain: | 1-100% | 1-100% | 1-100% |
Dynamic Range: | 36db-120db | 36db-120db | 36db-120db |
Focus Number: | 1 | 1 | 1 |
Spot Reduction: | On/Of | On/Of | On/Of |
PW Measurement Range: | ±15cm / ±120cm | ±5cm / ±100cm | ±15cm / ±160cm |
| CF Measurement Range: | ±8cm / ±76cm | ±3cm / ±48cm | ±6cm / ±62cm |
| Mode: | B / CF / PW / M / PDI / DPDI | B / CF / PW / M / PDI / DPDI / Needle Enchancement | B / CF / PW / M / PDI / DPDI |
TGC: | 8 Segments | 8 Segments | 8 Segments |
Battery: | 3200mA | 3200mA | 3200mA |
Element Channel: | 128 64 | 128 64 | 128 64 |
Connection Terminal: | Android / iOS / Windows | Android / iOS / Windows | Android / iOS / Windows |
Charging Time: | Wireless charging 30 Minutes to 43% 60Minutes to 100% | Wireless charging 30 Minutes to 43% 60Minutes to 100% | Wireless charging 30 Minutes to 43% 60Minutes to 100% |
Weight: | 212g | 212g | 212g |
Optional: | Wireless charge box | Wireless charge box | Wireless charge box |
