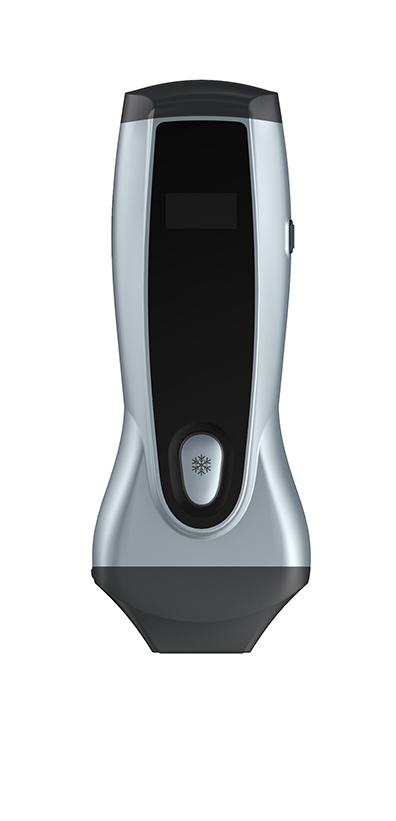

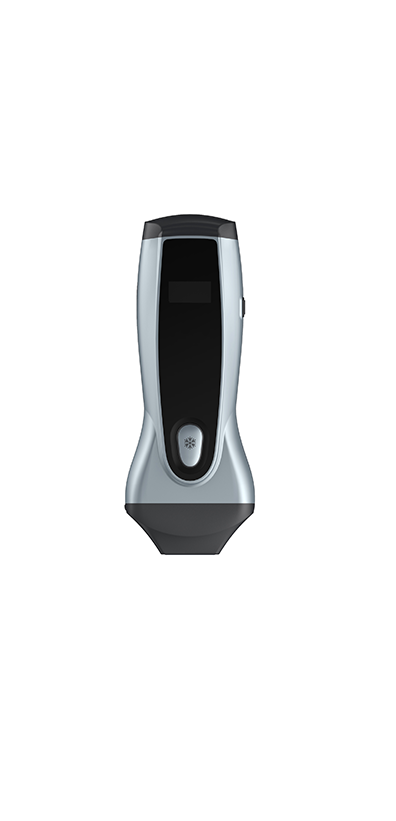

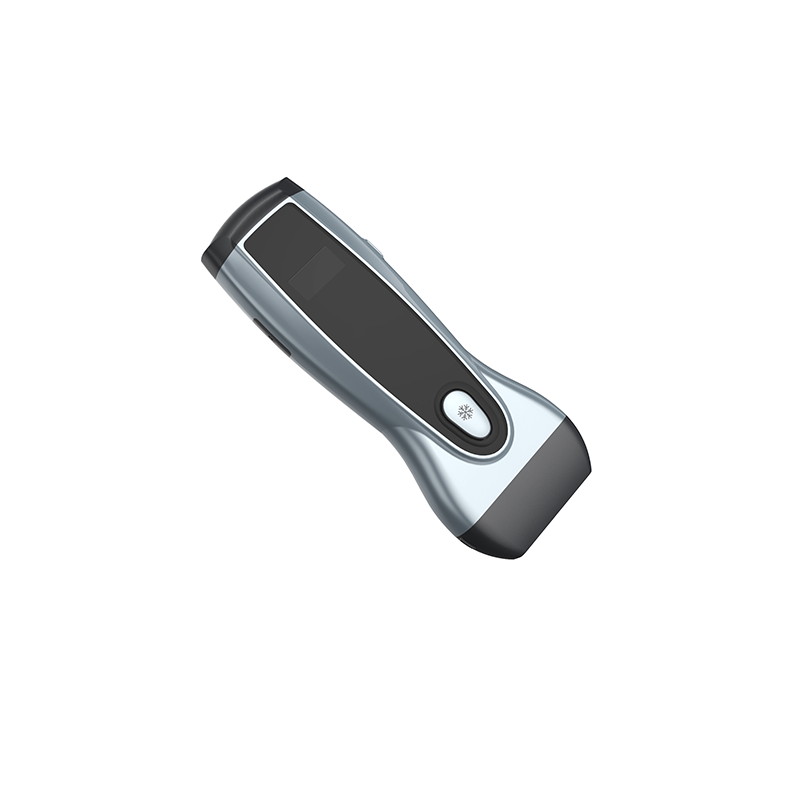

As Portable As Your Phone | PIU1C
PIU1C prioritizes both portability and efficiency with weight of only 212g. Sports medicine physicians can bring it for ultrasound diagonosis and get real-time imaging of musculoskeletal and other soft tissues to evaluate injuries like tendon tears, ligament sprains, and muscle strains. Its compact size fits in doctor’s bags and pockets, ensuring ready availability for non-invasive diagnostics anytime, anywhere.

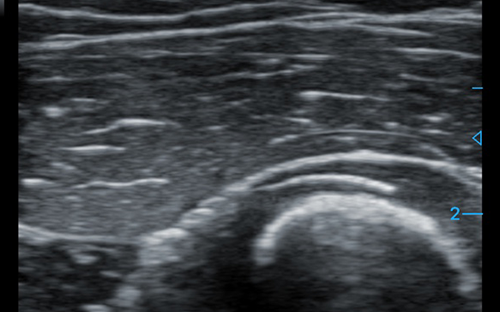

PIU1C adopts linear probe that boasts high frequency and resolution, ideal for detailed imaging of superficial tissues. Its wide applications include musculoskeletal (MSK) care (diagnosing sports injuries like muscle strains), vascular disease diagnosis, pain management, emergency FAST exams and needle biopsies.

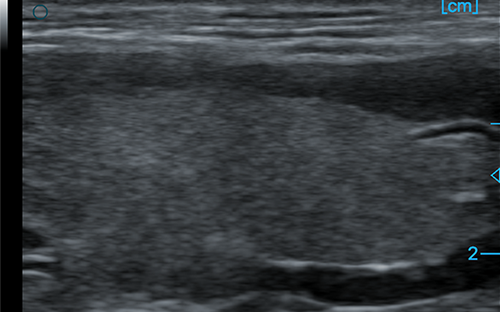

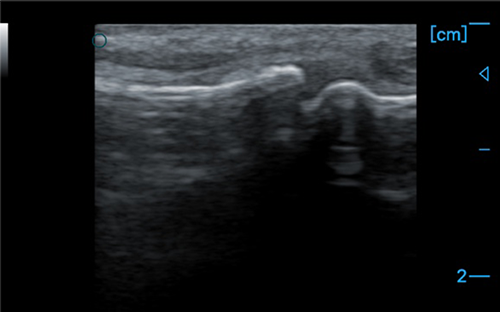

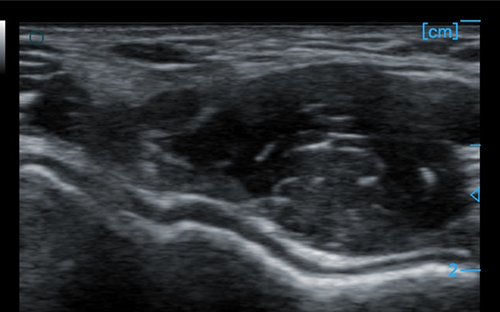

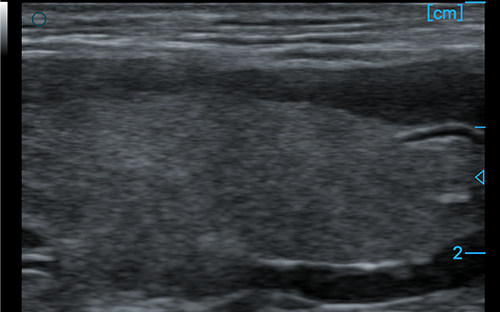

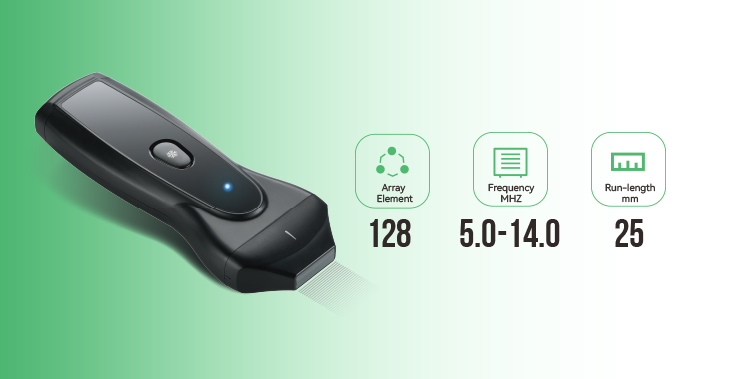

PIU1C ensures robust performance and accurate imaging in sports medicine MSK ultrasound. It has 128 element channels for detailed imaging by capturing more scan data. Wide frequency range from 5.0 to H14 adaptes to different needs: lower frequencies for deep structures, higher for superficial tissue details. Scanning depth ranging from 20mm to 150 mm covers tissues from skin surface to deeper organs.

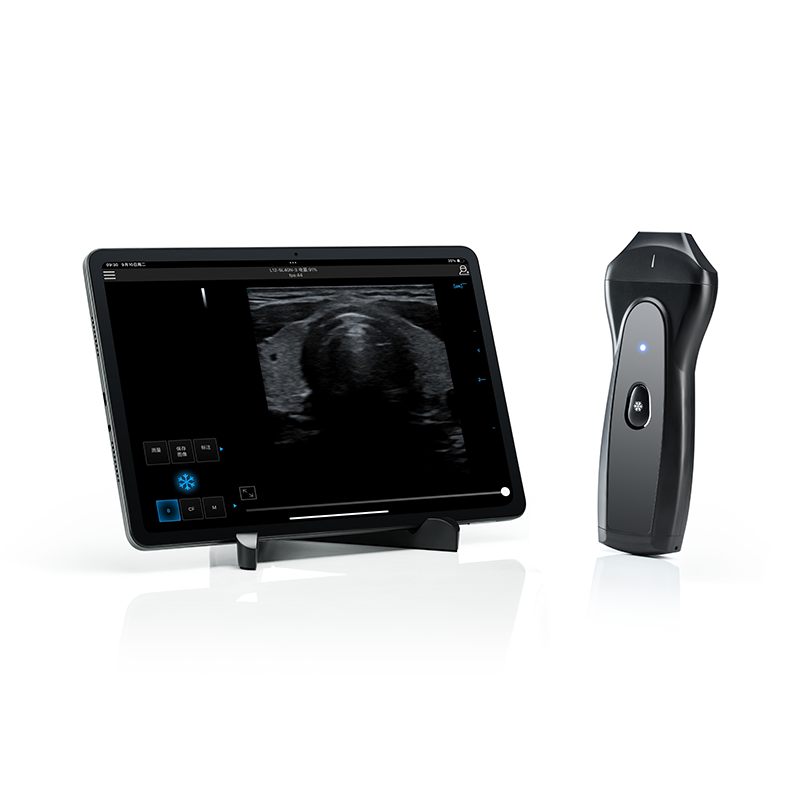

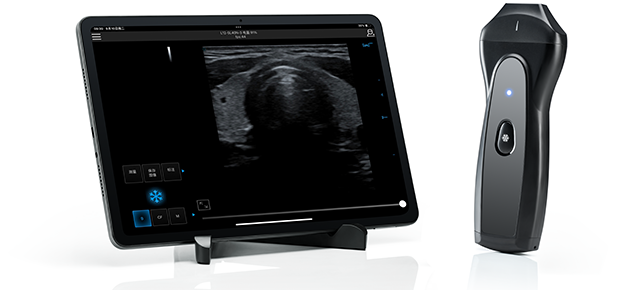

Our wireless sports medicine ultrasound system supports Windows, Android, and iOS, integrating with clinicians’ existing devices (tablets/laptops) for flexible operation. Its protection case can work as a wireless fast charger, not only safeguarding against damage, but also wirelessly fast charging the device so that it is always ready without cable hassle.
Element array： | 128 64 |
Transducer types: | Linear probe |
| Language Support： | English，Arabic， Chinese，French， German， Indonesian， Italian， Portuguese，Russian，Spanish |
Storage formats： | DICOM |
Image formats: | BMP, JPG |
Storage devices： | Hard drive image storage |
Waterproof: | IPX7 |
Depth: | 30-150 |
| Frequency: | Linear array5-14 MHz |

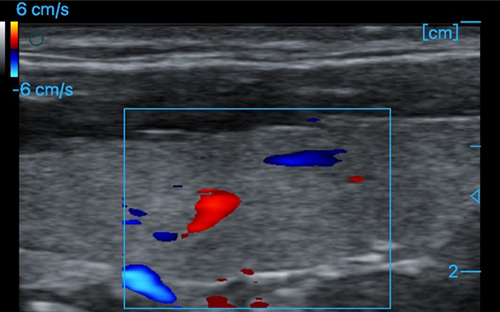

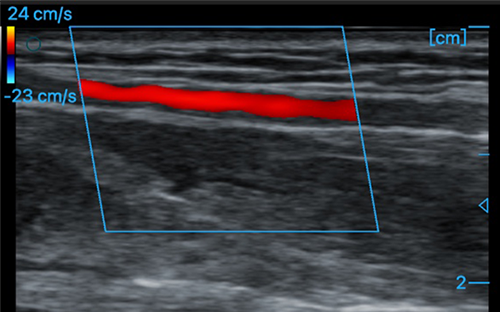

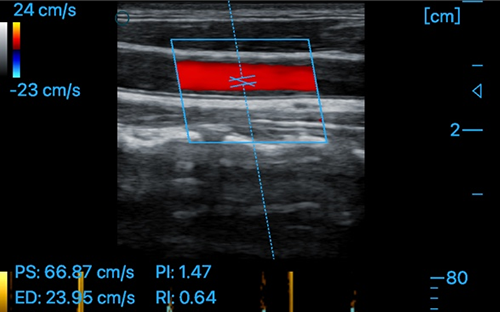

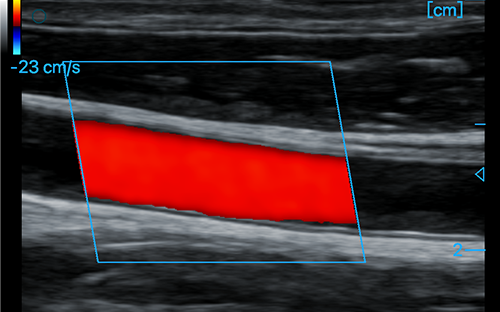

| Mode: | B, CF, M, Color M, PW, PDI, DPDI, Needle Enhancement |
| Gain: | 1-100% |
| Dynamic: | 36db-120db |
| Focus Number: | 1 |
| Spot Reduction: | -On/Off |
| TGC: | 8 Segments |
| Battery: | 3200mA |
| Connection Terminal: | Android iOS Windows |
| Charging Time: | 30Minutes to 43% / 60Minutes to 100% |
| Weight: | 212g |

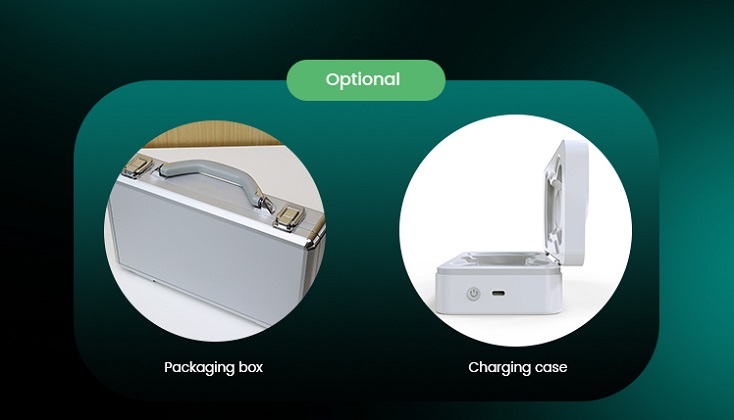

| Optional: | Wireless charge box |
