Wireless Handheld Ultrasound

Wireless&Handheld Color Ultrasound System PIU1B

PIU1B

All for Flexible Ultrasound

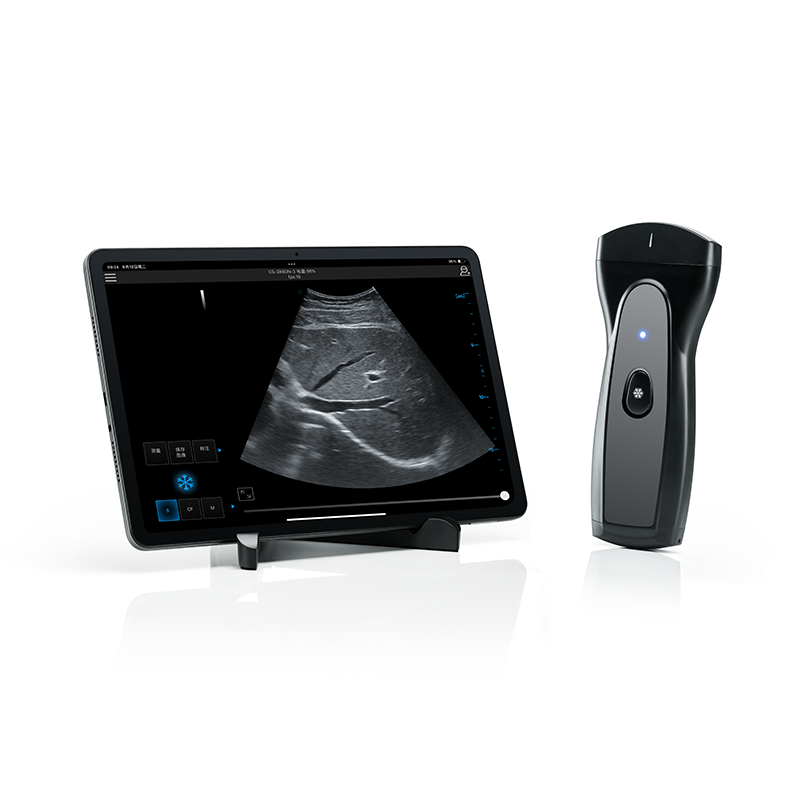

PIU1B Handheld Ultrasound

Green line

PIU1B is designed with portability and user-friendliness at its core. It empowers healthcare professionals across different locations—whether in village clinics, primary hospitals, or during home visits. What sets it apart is its ergonomic design, not only ensuring easy handling and reducing hand fatigue during prolonged use, but also optimizes patient comfort, making the diagnostic process more pleasant.

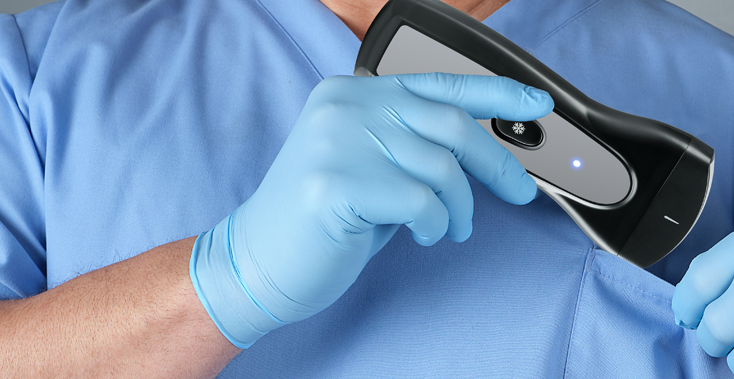

  • Doctor holding PIU1B



    Harmonic Imaging Technology

    PIU1B delivers exceptional imaging quality for healthcare professionals anytime, anywhere, thanks to its Harmonic Imaging Technology (THI). This advanced technology leverages the second harmonics generated by the tissue boundary layer, which significantly boosts contrast resolution, helping clinicians identify subtle abnormalities more accurately and support reliable diagnostic decisions.

    •

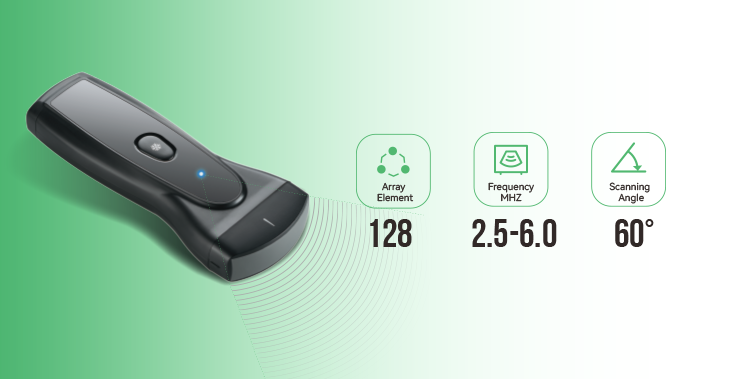

  • Wideband Convex Probe and Its Applications

    PIU1B has wideband convex probe that features wide scanning range for deep scanning and detection of heart, abdomens and other deep tissues. It is ideal for OB/GYN, urology, gastroenterology, cardiac diseases, and abdominal applications. Lightweight appearance enables fast and accurate diagnosis, meeting the practical needs of frontline healthcare settings.

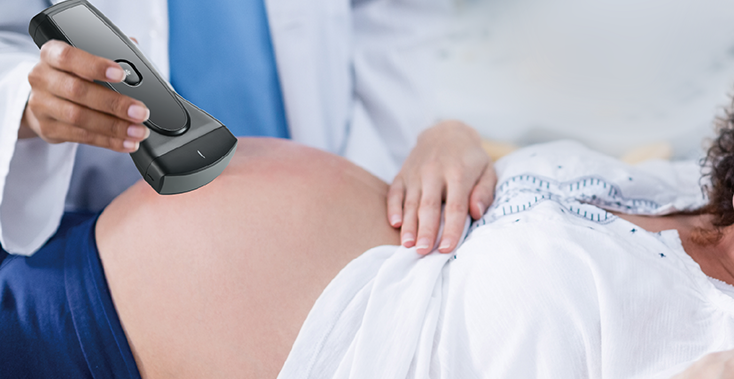

    Piu1B applications

    •

  • Waterproof PIU1B



    Key features

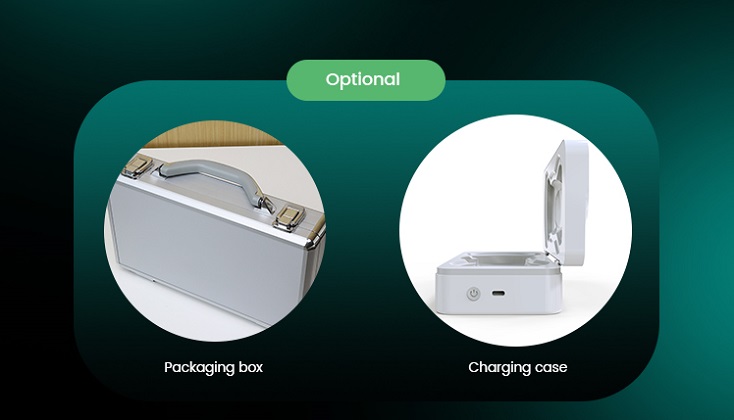

    128 element channels with robust performance. Frequency ranges from 2.5 to H6.0. Scanning depth ranges from 40 to 300 mm. Support Windows, Android, and IOS. Lightweight design of just 212g. Protective case and wireless portable charger in one. IPX7 Waterproof design enables the device to withstand daily handling.

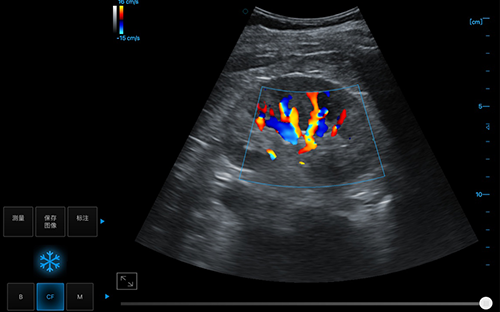

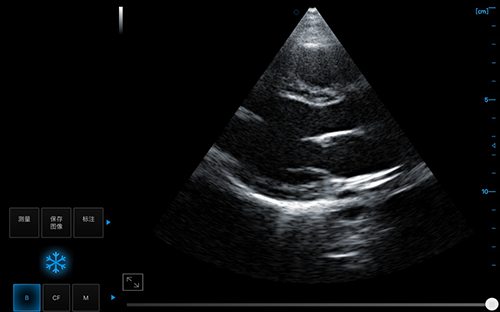

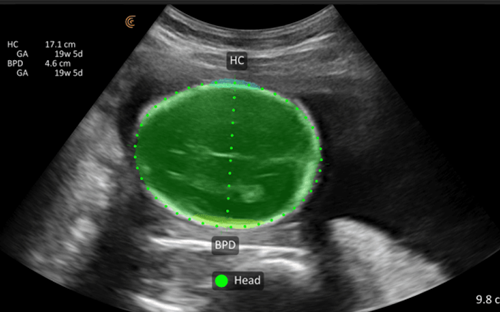

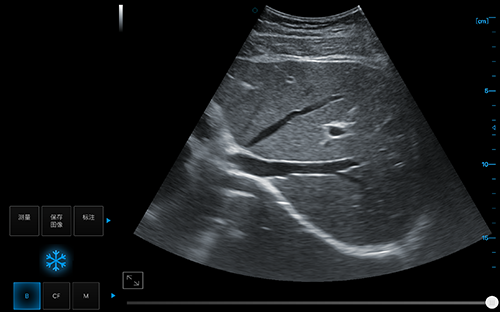

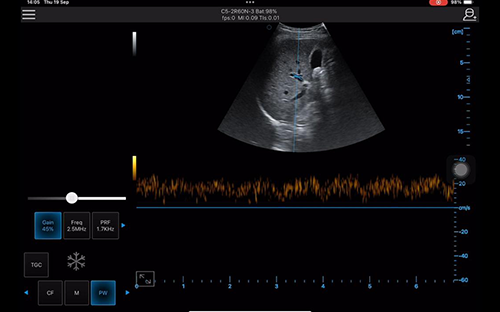

Ultrasound Imaging

  • 1b
  • 2a1b000
  • 2a1b
  • 2a1b00
  • 2a1b0000
  • Ultrasound Imaging

PIU Specification

Element Channel：

128 64

Gain：

Liner 1-100%

Dynamic Range：

Liner 36db-120db

Focus Number：

Liner 1

Spot Reduction:

Linear On/Off

PW Measurement Range：

Linear ±5cm / ±100cm

CF Measurement Range:

Linear ±3cm / ±48cm

Mode:

Linear B / CF / PW / M / PDI / DPDI / Needle Enchancement

Frequency:Linear array 5.0 / 7.5 / 9.0 / 10.5 / 12 / H10 / H12MHz
TGC:8 Segments

Battery：

3200mA

Connection Terminal：

Android / iOS / Windows

Charging Time：

Wireless charging 30 Minutes to 43% 60Minutes to 100%

Weight：

212g
