Clinic-Ready Wireless Solution with FDA Clearance | PIU1E

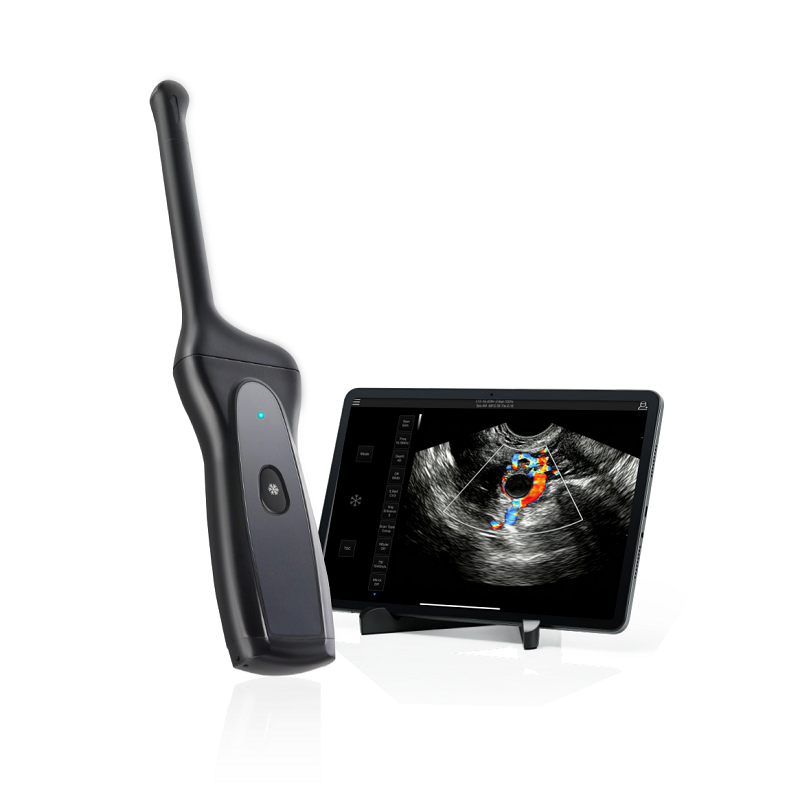

Designed specifically as a wireless transvaginal ultrasound for gynecology clinic environments, the PIU1E eliminates cables and bulky consoles. This screen‑free probe streams real‑time, high‑definition pelvic images directly to your tablet or phone via internal WiFi—no external network needed. With FDA 510(k) clearance, it meets strict U.S. safety standards. For OB/GYN practitioners and clinic distributors, this compact device delivers hospital‑grade imaging without compromising space or workflow efficiency.
As a true handheld pelvic ultrasound probe for OB/GYN, the PIU1E offers zero cable drag, allowing one‑handed scanning at any angle during speculum exams or bedside evaluations. Images transmit wirelessly, so your eyes remain on your patient—not on a distant cart screen. Its ergonomic, warm‑to‑touch contour respects female anatomy, while silent, swift operation replaces clumsy cable management with composed professionalism—perfect for high‑volume gynecology clinics and hospital obstetric wards.
Infection control is effortless. The probe’s smooth surface allows rapid cleaning between patients. It connects instantly to Android, iOS, and Windows devices already used in your gynecology clinic. Wireless charging reaches 43% in 30 minutes and 100% in 60 minutes, keeping the probe ready for back‑to‑back OB/GYN consultations. This plug‑and‑play connectivity eliminates scheduling delays, making it an ideal handheld pelvic ultrasound probe for OB/GYN teams who need reliable, portable imaging at a moment’s notice.

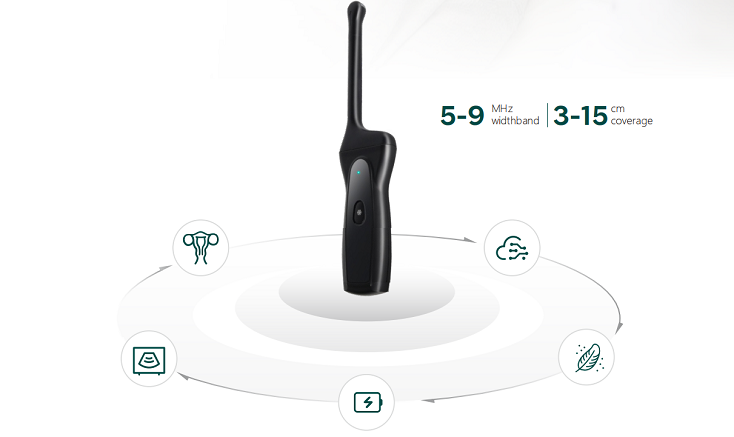

Image quality sets this wireless transvaginal ultrasound for gynecology clinic apart. Eight‑segment TGC, gain from 1‑100%, and a 36‑120dB dynamic range adapt to obese patients, thin endometrium, or tiny ovarian cysts. One‑click speckle reduction enhances border definition. With frequencies from 5.0 to H9.0 MHz and a 30‑150mm depth range, you can confidently evaluate follicles, polyps, and endometrial layers—critical for fertility monitoring and routine gynecological checkups.
This probe covers the full spectrum of women’s health. In reproductive centers, it tracks follicular growth and assesses ovarian reserve. In gynecology outpatient clinics, it performs early pregnancy screening and uterine lesion detection. During interventional procedures, it guides follicle aspiration and pelvic punctures. For mobile OB/GYN outreach, it enables rapid bedside emergency diagnosis. Modes include B, CF, PW, M, PDI, DPDI, and Pierce—making it the most versatile handheld pelvic ultrasound probe for OB/GYN practice.

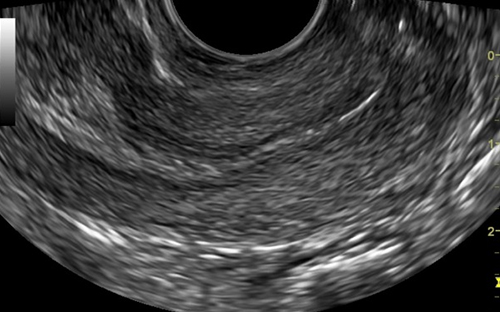

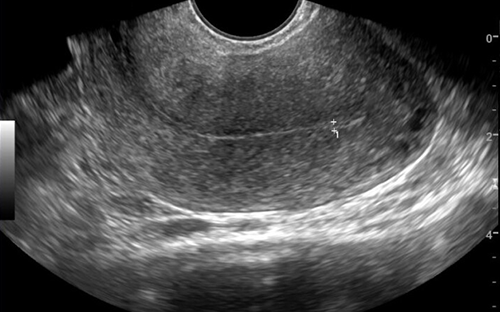

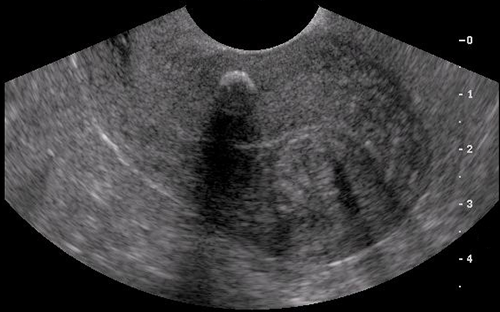

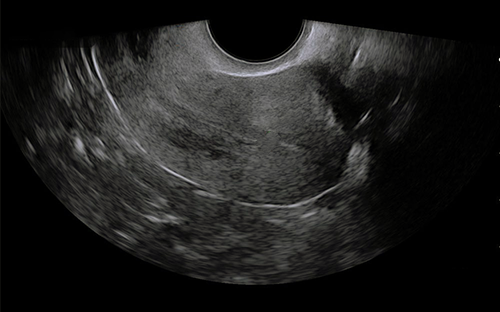

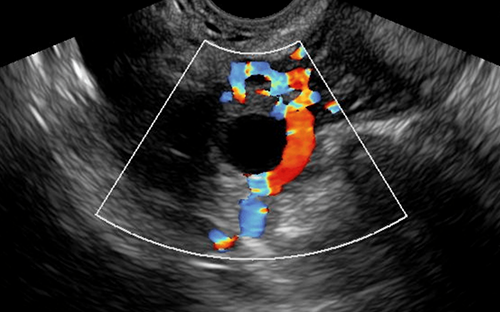

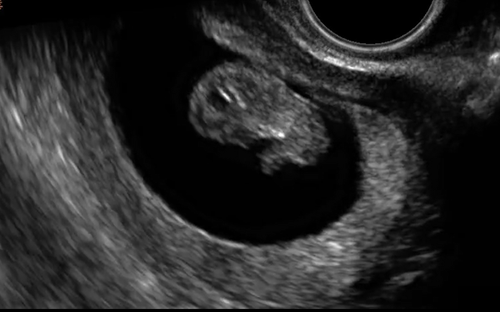

PIU1E turns clinical suspicion into visual certainty. Powered by 128‑element channels and a 32‑channel terminal, it delivers crisp, high‑contrast images of the fertilized egg, endometrium, and uterine wall—as shown in the sample scans below. For physicians and distributors seeking a portable, FDA‑cleared wireless transvaginal ultrasound for gynecology clinic use, the PIU1E provides the resolution and reliability needed for confident daily diagnoses in any OB/GYN setting.
Frequency: | 5.0/6.5/8.0/9.0/H8.0/H9.0 MHz |
Gain： | 1-100% |
| Dynamic Range： | 36db-120db |
Focus Number： | 1 |
Spot Reduction: | On/Off |
PW Measurement Range： | ±13cm / ±130cm |
CF Measurement Range: | ±3cm/ ±33cm |
Mode: | B/CF/PW/M/PDI/DPDI/Pierce |
| Element Channel： | 128 32 |
| TGC: | 8 Segments |
Battery： | 3000mA |
Connection Terminal： | Android / iOS / Windows |
Charging Time： | Wireless charging 30minutes to 43% ; 60minutes to 100% |
Weight： | 220g |
Depth： | 30-150mm |
