Wireless Handheld Ultrasound

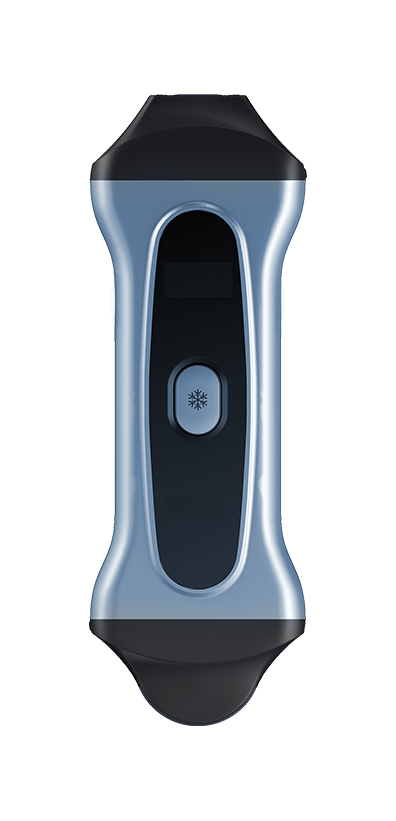

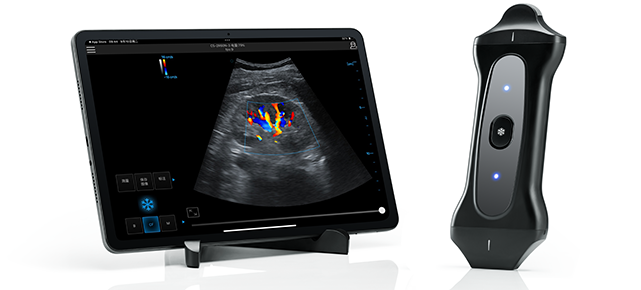

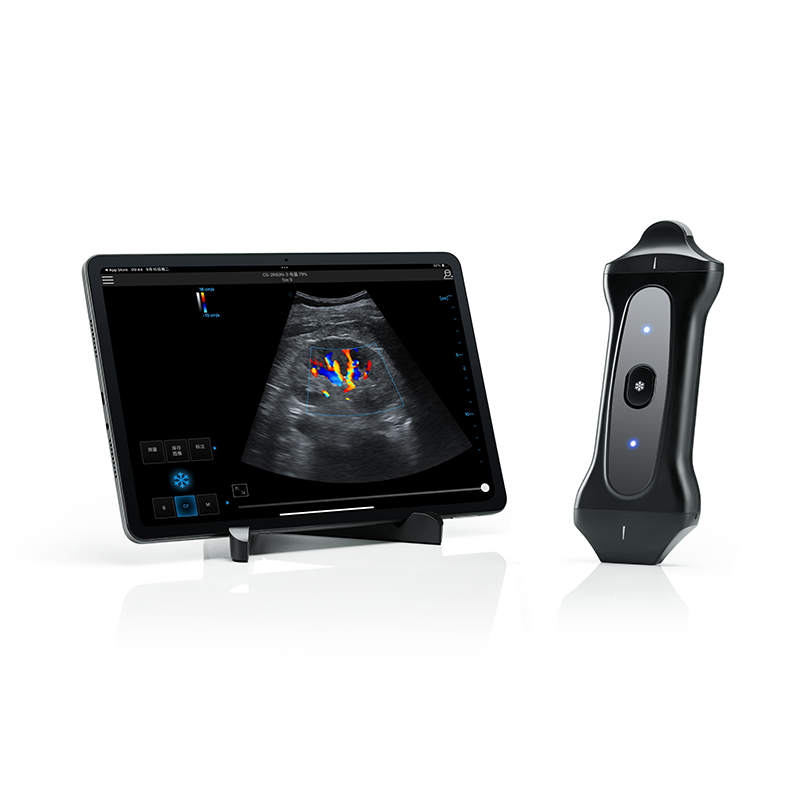

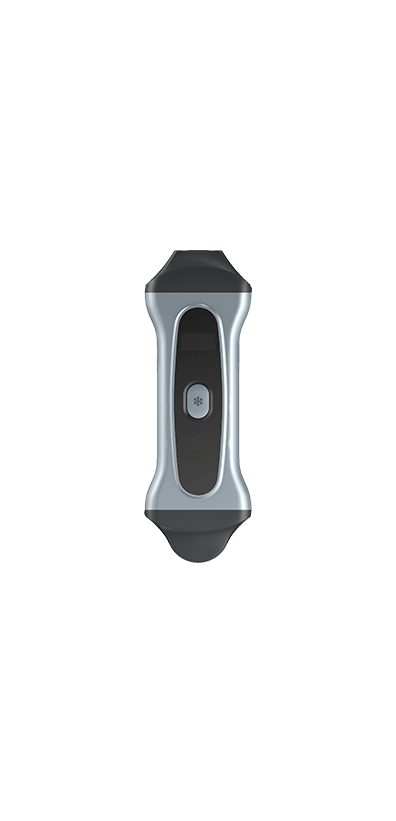

Wireless&Handheld Color Ultrasound System PIU2B

What's New at A Glance

1
Convex Probe

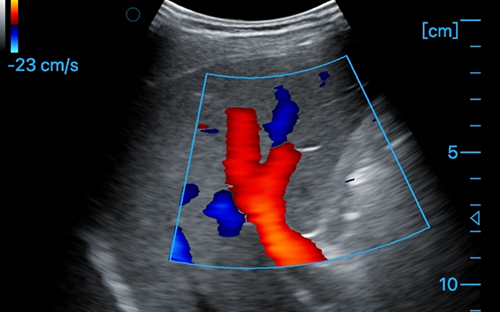

Color Mode Liver 3

凸阵探头-彩色多普勒模式-肝脏 Convex Probe-Color Mode-Liver 3
Convex Probe

Color Mode Liver

凸阵探头-彩色多普勒模式-肝脏 Convex Probe-Color Mode-Liver
Convex Probe

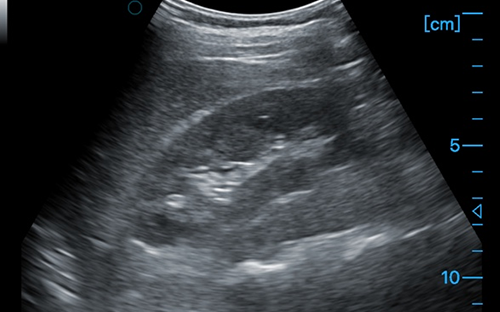

Color Mode Kidney 1

凸阵探头-彩色多普勒模式-肾脏 Convex Probe-Color Mode-Kidney 1

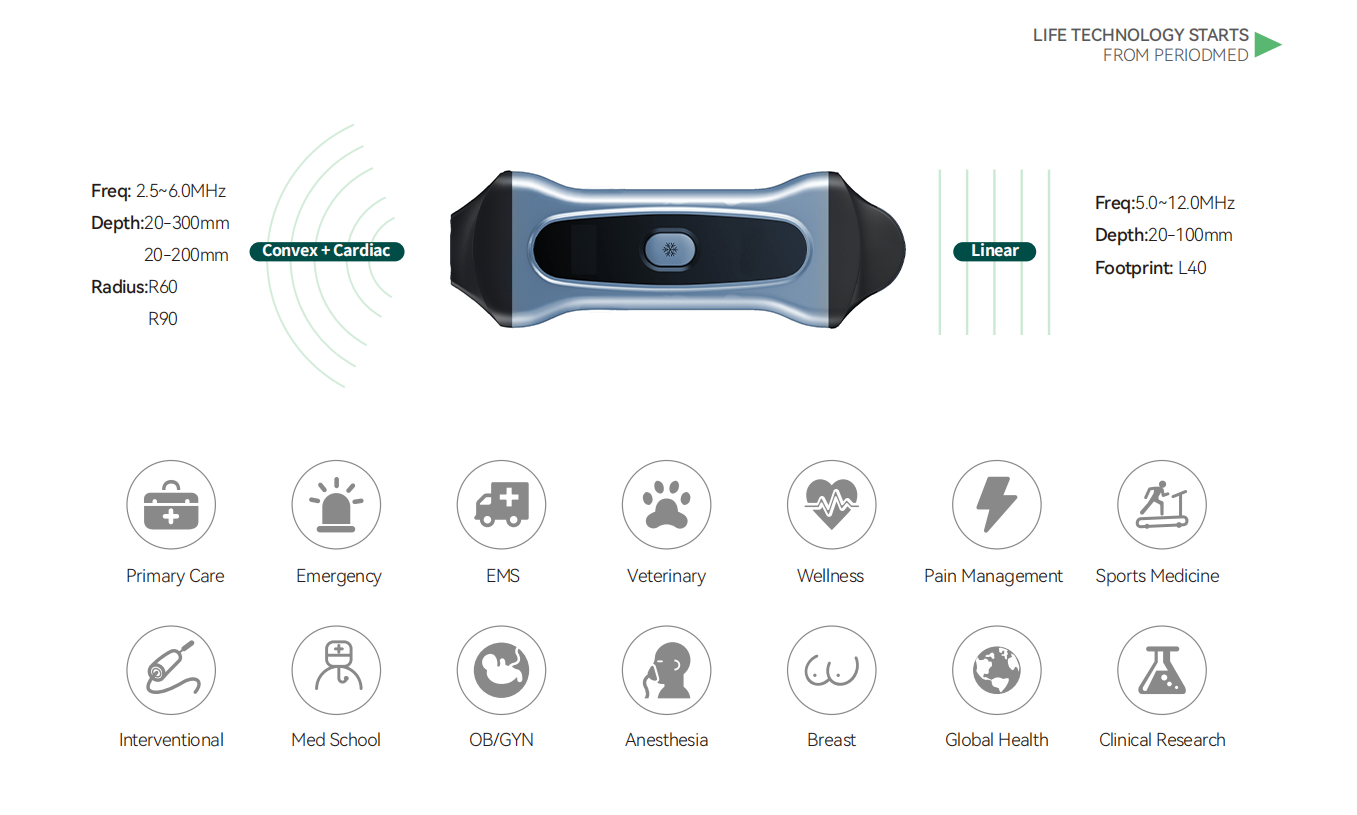

Left socket

For more insights of lesions

01
Convex Probe

Color Mode Kidney 2

凸阵探头-彩色多普勒模式-肾脏 Convex Probe-Color Mode-Kidney 2
Linear Probe

B Mode Carotid

人：线阵探头，B模式，颈动脉 Linear Probe，B Mode，Carotid
Linear Probe

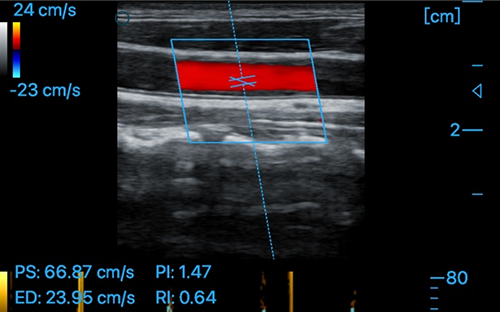

Color Mode Carotid

人：线阵探头，彩色多普勒模式，颈动脉 Linear Probe，Color Mode，Carotid
Linear Probe

Color Mode Carotid1

线阵探头-彩色多普勒模式-颈动脉 Linear Probe-Color Mode-Carotid1
Right socket

For more insights of lesions

02
Linear Probe

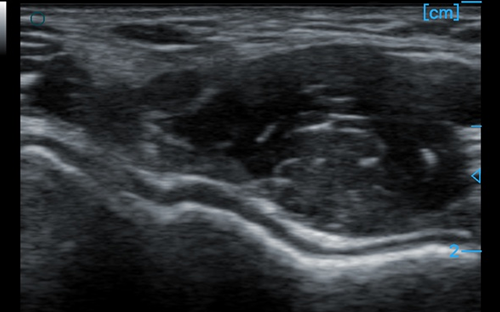

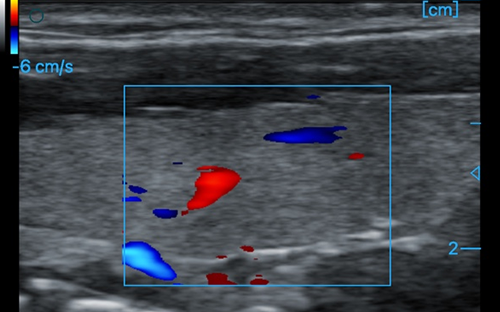

Color Mode Thyroid3

线阵探头-彩色多普勒模式-甲状腺 Linear Probe-Color Mode-THyroid3

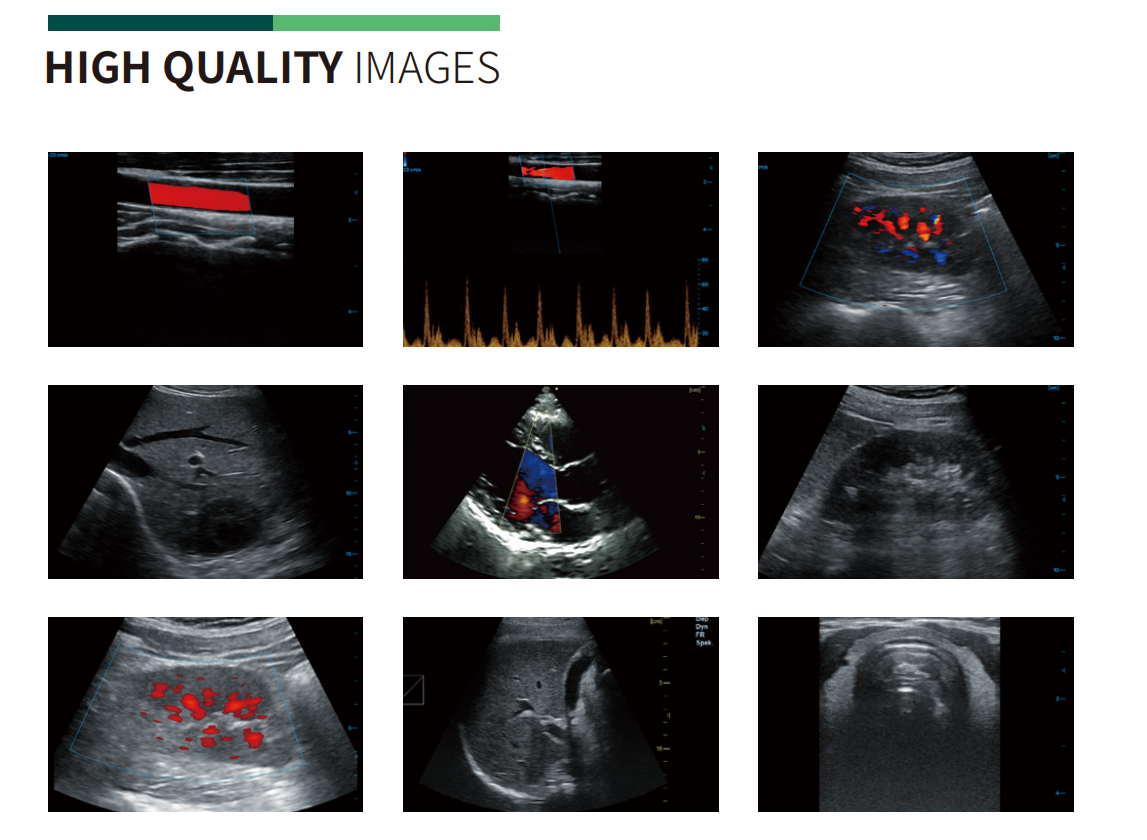

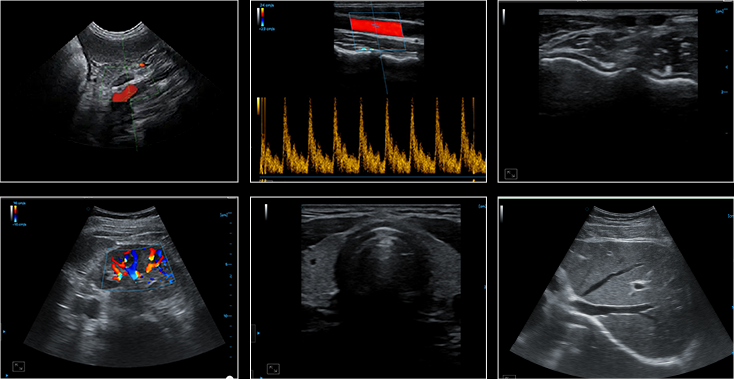

Ultrasound General imaging Images
  • 凸阵探头-彩色多普勒模式-肝脏 Convex Probe-Color Mode-Liver 3

    Convex Probe-Color Mode-Liver 3

  • 凸阵探头-彩色多普勒模式-肝脏 Convex Probe-Color Mode-Liver

    Convex Probe-Color Mode-Liver

  • 凸阵探头-彩色多普勒模式-肾脏 Convex Probe-Color Mode-Kidney 1

    Convex Probe-Color Mode-Kidney 1

Ultrasound Carotid Images
  • 人：线阵探头，B模式，颈动脉 Linear Probe，B Mode，Carotid

    Linear Probe-B Mode-Carotid

  • 人：线阵探头，脉冲多普勒模式，颈动脉 Linear Probe，PW Mode，Carotid

    Linear Probe-PW Mode-Carotid

  • 线阵探头-彩色多普勒模式-颈动脉 Linear Probe-Color Mode-Carotid3

    Linear Probe-Color Mode-Carotid3

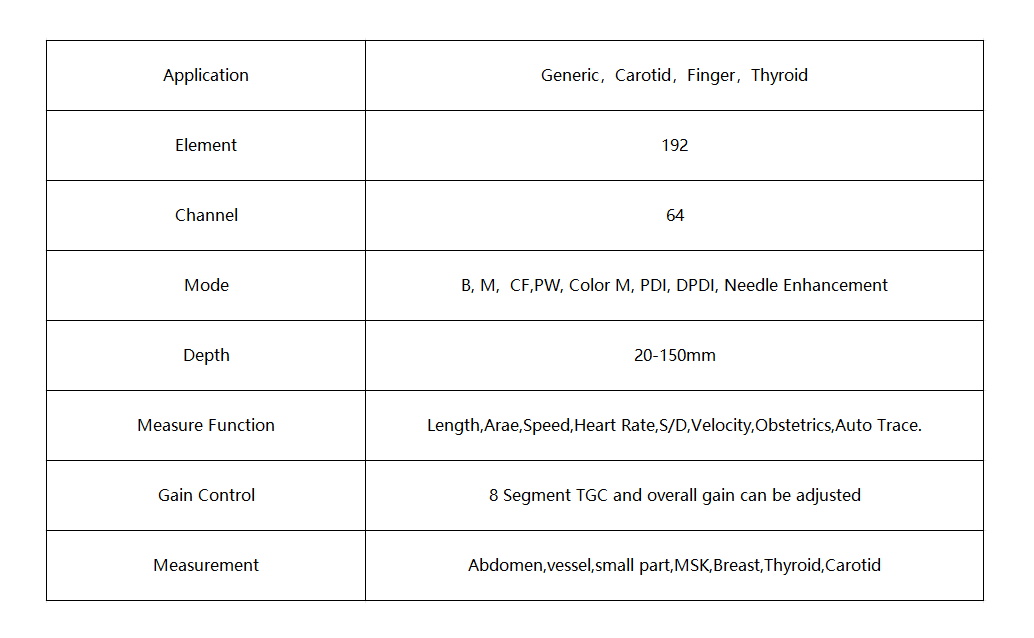

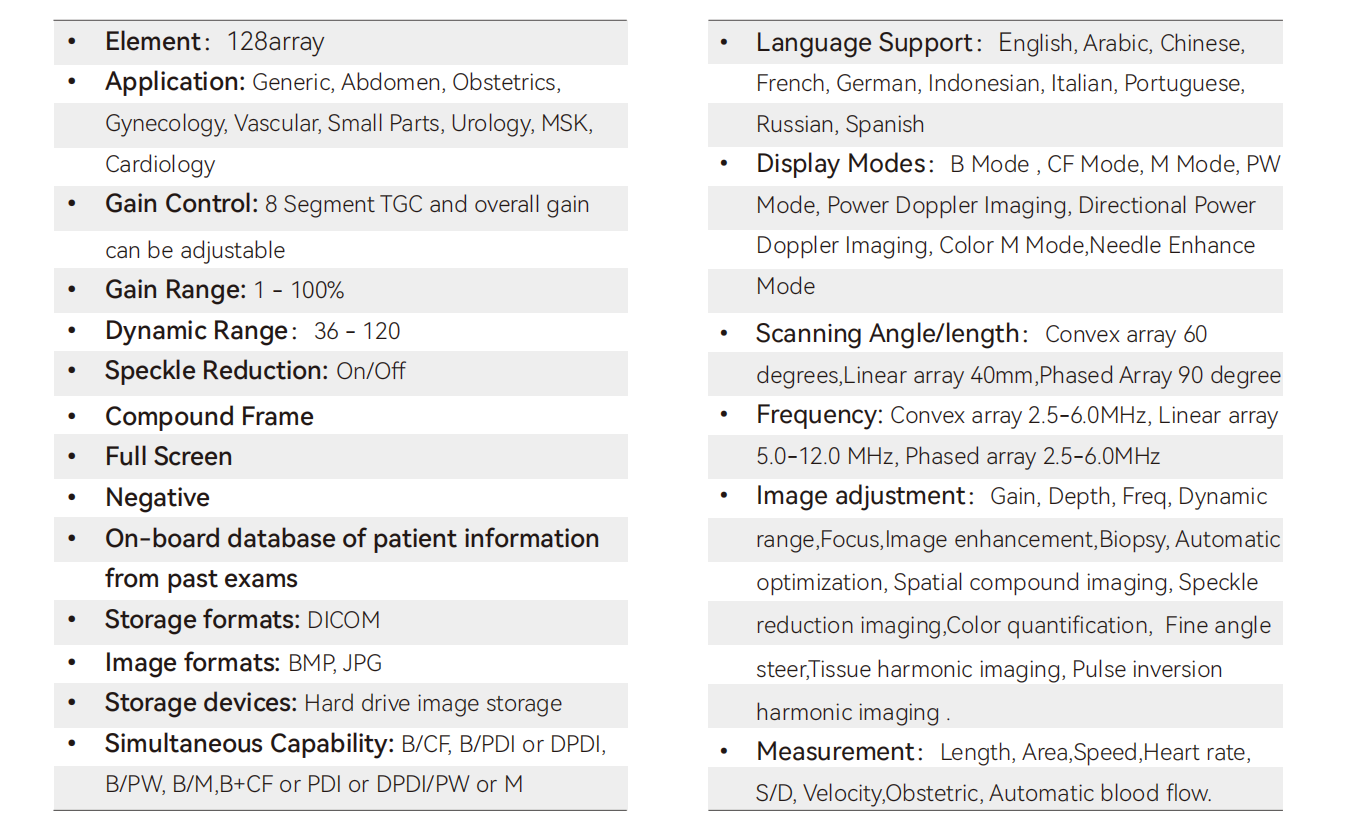

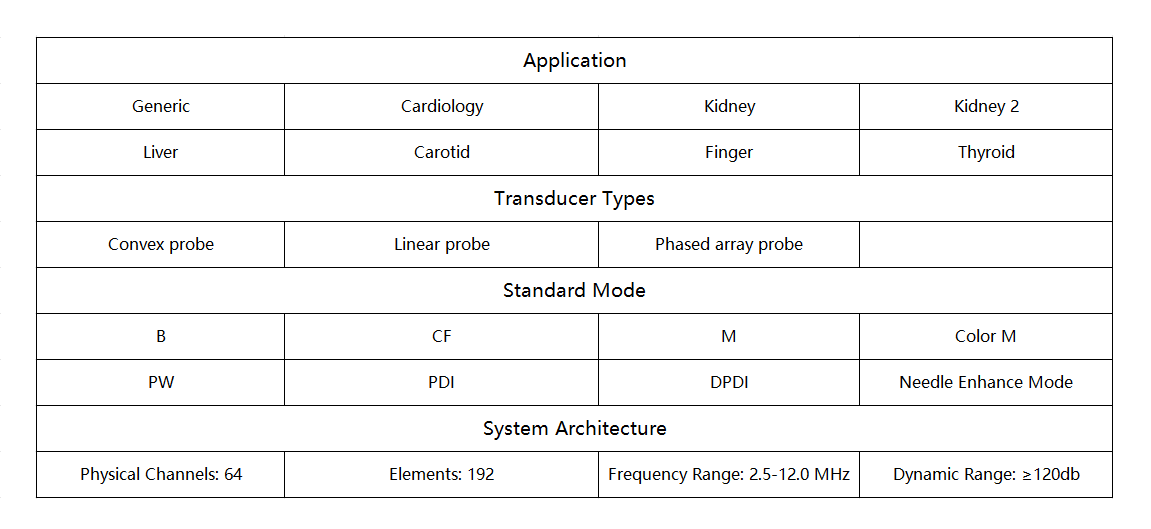

PIU2B Specification

Element：

128array

Gain Control：

8 Segment TGC and overall gaincan be adjustable

Gain Range：1 - 100%

Dynamic Range：

36 - 120

Speckle Reduction：

On/Of

Storage formats：

DICOM

Image formats:

BMP, JPG

Storage devices：

Hard drive image storage

Simultaneous Capability:

B/CF, B/PDI or DPDI,B/PW, B/M,B+CF or PDI or DPDI/PW or M

Scanning Angle/length:

Convex array 60degrees,Linear array 40mm,Phased Array 90 degree

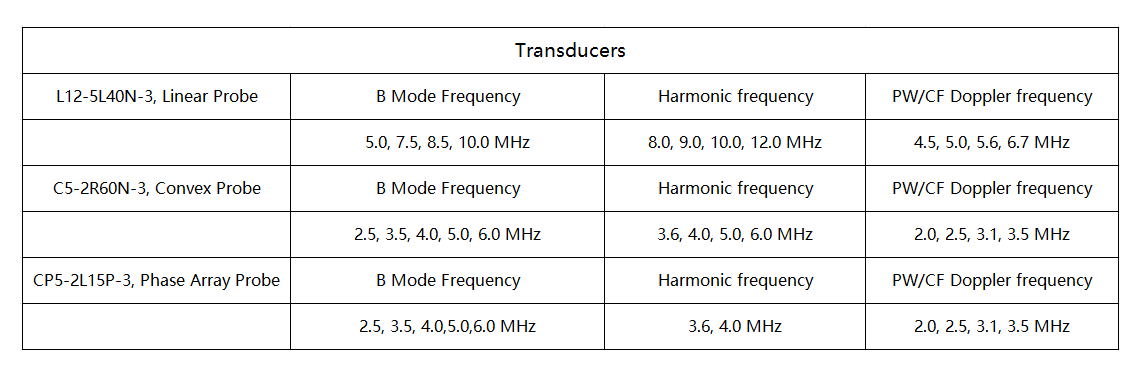

Frequency:Convex array 2.5-6.0MHz, Linear array5.0-12.0 MHz, Phased array 2.5-6.0MHz
Measurement:Length, Area,Speed,Heart rate,S/D, Velocity,Obstetric, Automatic blood flow
1

Various Probe

Ensuring A Better User Experience

Monitor：0.96 Inch OLED

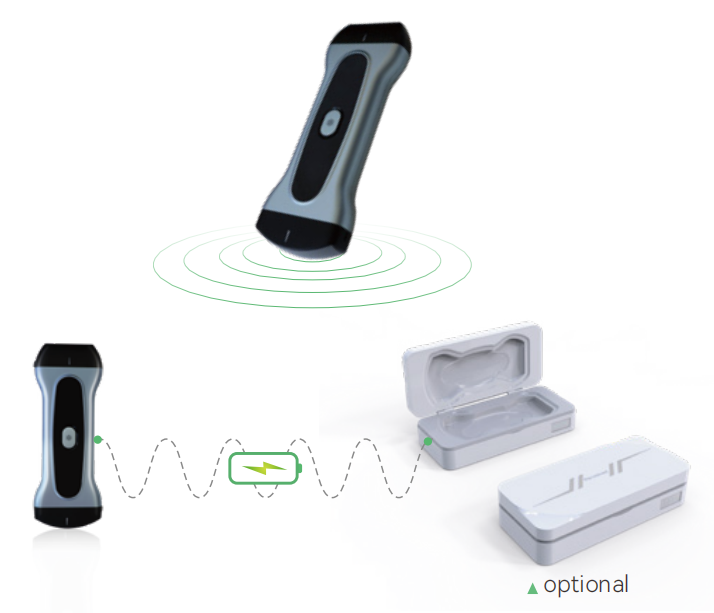

Battery：Removable big capacity lithium battery

Display Mode：B，2B，CFM，PW

Measure Function：OB,distance，area of a circle,Velocity,blood flow measure,fetal heart,heart rate

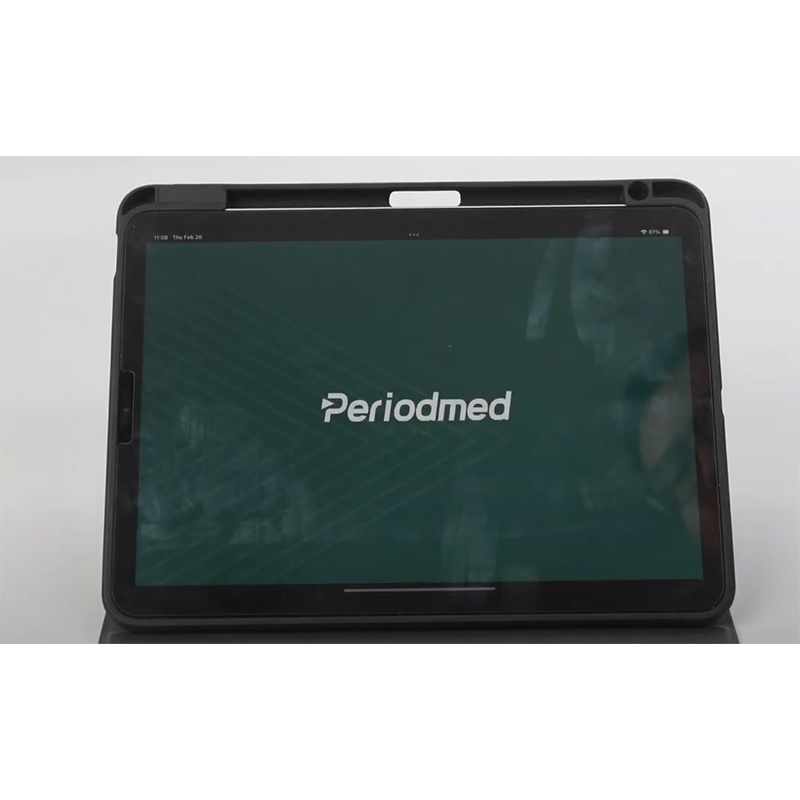

Video
