PE-VE3C
Standard 12 leads
5 inch
Manual/Auto/R-R/Store
AC Filter: 50Hz/60Hz EMG Filter:25Hz/45Hz Anti-Drift Filter: 0.15Hz(adaptive)
AC: 110 ~ 240V, 50Hz/60Hz
USB / UART ports

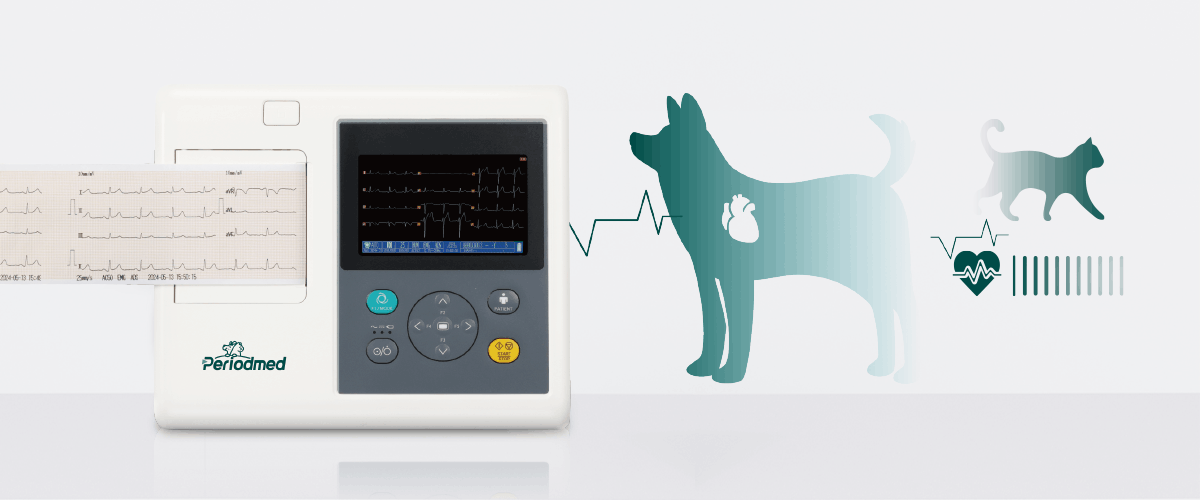

The PE-VE3C animal ECG device is engineered with high-precision digital filtering and automatic baseline correction, which powerfully offsets baseline drift, AC power interference and myoelectric noise generated by restless pets with thick fur.
It features an ultra-wide frequency response from 0.01Hz to 300Hz, successfully capturing delicate high-frequency cardiac signals that are critical for evaluating small companion animals.
The 5-inch display presents real-time waveforms sharply, helping vets identify hidden heart abnormalities before anesthesia administration for routine sterilization and cosmetic procedures.
Equipped with both 110–230V universal global AC power input and an embedded rechargeable lithium-ion battery, this ECG machine breaks the limitation of fixed wall sockets.
It can operate independently during farm breeding stock physical examinations, stray animal rescue field surgeries and mobile vet house calls.

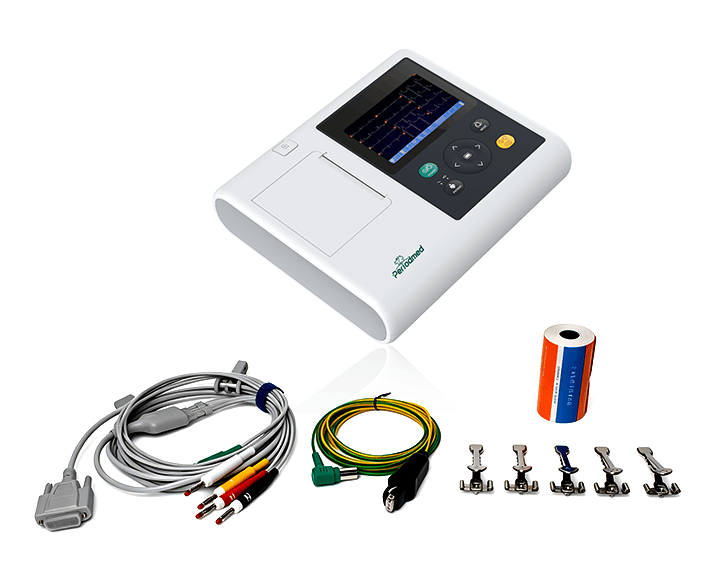

Built-in USB and UART interfaces allow easy data export to flash drives for offline archiving, while the integrated thermal printer instantly prints clear ECG curves to attach directly into each pet’s preoperative medical file for complete clinical record keeping.
Loaded with multi-language operating options, the PE-VE3C eliminates language barriers for veterinary practitioners across Southeast Asia, Latin America, Europe and other overseas markets.
It supports connection with various external peripherals to upgrade workflow efficiency in busy small animal practices.

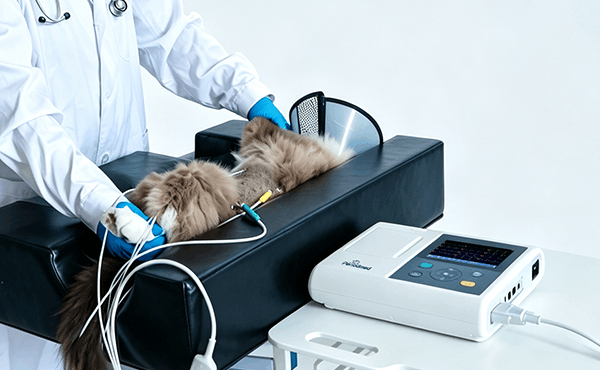

Its compact body with streamlined mechanical buttons delivers straightforward manipulation, so even junior veterinary nurses can finish standard 3-channel ECG collection proficiently during batch preoperative cardiac screening of hospitalized dogs and cats every working day.
| Lead | Standard 12 leads |
| Lead acquisition | 12 leads synchronously acquisition |
| Work mode | MAN, AUTO, R‑R, STOR |
| Filter | AC Filter:50Hz|60Hz/OffEMG Filter:25Hz|45Hz/Off |
| Common Mode Rejection | Common Mode Rejection |
| Input circuit | Floating: Protection against Defibrillator effect |
| Input Impedance | ≥2.5MΩ (10Hz) |
| Electrode DC current | ≤0.1μA |
| Input dynamic range | ±5mVp‑p DC bias voltage 2+620mV |
| Current leakage | <10μA |
| Calibrating voltage | 1mV+5% |
| Lag | <0.5mm |
| Sensitivity | 2.5,5,10,20,40, mm/mV (+3%) |
| Paper speed | 6.25, 12.5, 25, 50mm/s (+3%) |
| System error | < +5% or < +40uV |
| Inter‑channel Interference | <2% |
| System Noise | <30u Vp‑p |
| HR range | 30‑300 BPM (+1 BPM ) |
| Amplitude | 2mV‑250mV |
| Width | 0.1ms‑2.0ms |
| Sampling rate | 4000Hz/ channel |
| AC Power | AC100V‑240V, 50/60Hz, power60VA |
| USB Laser Printer | |
| Recording way | Thermal dot matrix recording |
| Recording format | 1ch,3ch,3ch+(3‑channel ECG)3ch++,6ch,6ch+,12ch(12‑channel ECG) |
| Paper Specification | 80mm×20m, Roll paper (3‑channel ECG) 210mm×30m, Roll paper (12‑channel ECG) |
| Communication interface | USB,UART |
| AC Power | AC100V‑240V,50/60Hz,power60VA |
| Dimensions and weight | (3‑channel ECG): 136mm x 116mm x35mm,1.4kg. (12‑channel ECG): 320mm x 234mm x85mm,2.8kg. |
