PE-VE3B
Standard 12 leads
YES, 5 inch touch screen
Manual/Auto/R-R/Store
AC Filter: 50Hz/60Hz EMG Filter:25Hz/45Hz Anti-Drift Filter: 0.15Hz(adaptive)
AC: 110 ~ 240V, 50Hz/60Hz
USB / UART ports

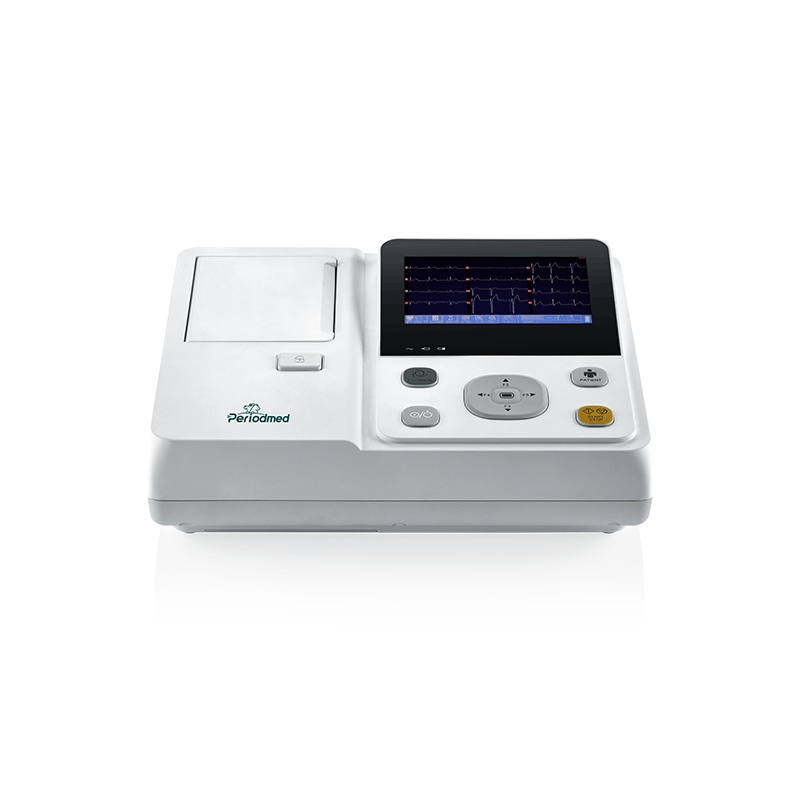

Equipped with a responsive 5-inch touch screen, the PE-VE3B vet ECG machine realizes simple parameter setting and clear real-time waveform observation for dogs, cats and various exotic animals.

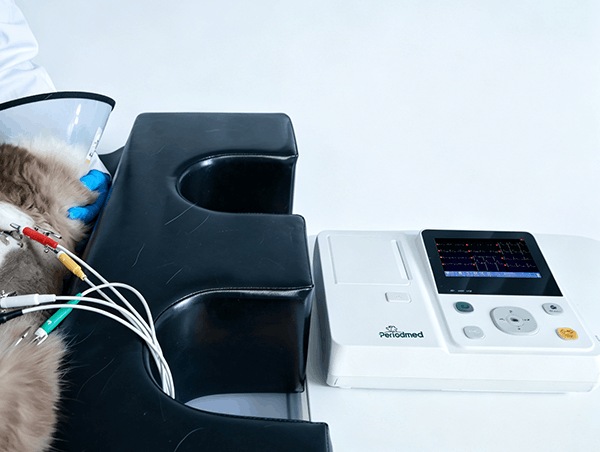

It adopts high-precision digital filtering technology with automatic baseline adjustment to effectively eliminate motion interference caused by restless and furry pets during detection.
Standard 12-lead synchronous acquisition captures complete cardiac electrical signals, while the built-in thermal printer outputs delicate and continuous ECG traces for intuitive clinical analysis of arrhythmia, cardiomyopathy and potential perioperative heart risks before surgical anesthesia.
This professional animal electrocardiograph supports MAN, AUTO and R-STOR working modes to meet diversified scanning demands from routine physical screening to comprehensive preoperative cardiac function assessment.

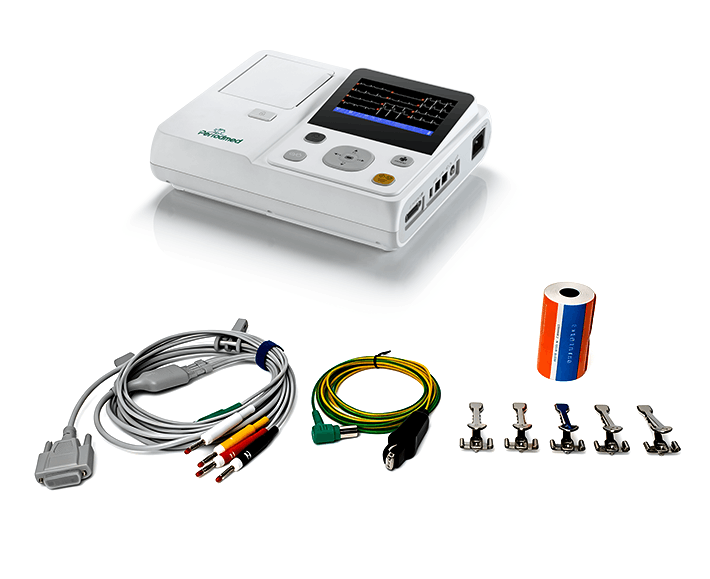

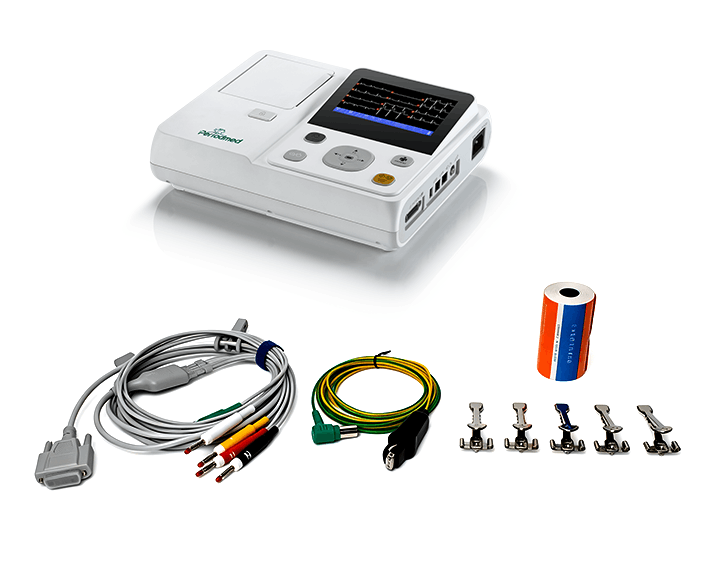

It reserves multiple external ports to connect a keyboard, mouse, card reader and external laser printer for flexible diversified report output.
Stable anti-defibrillation circuit design ensures safety in emergency resuscitation scenarios, and strict technical indicators such as ultra-low system noise and high common-mode rejection greatly improve test accuracy on furry animals with thick fur and unstable body posture during long-time examinations.

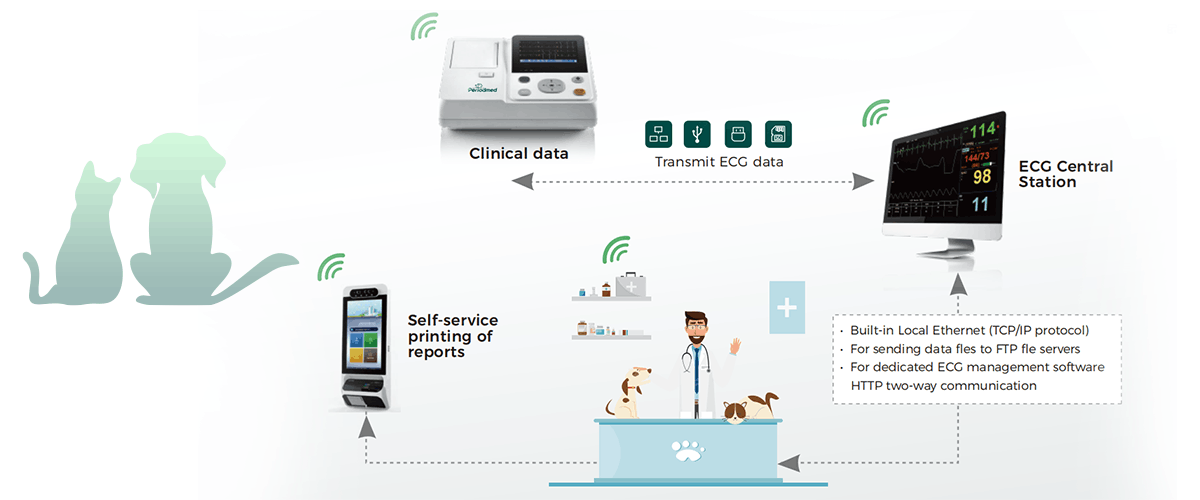

Built-in Wi-Fi and local Ethernet TCP/IP communication modules enable seamless ECG file uploading to FTP servers and dedicated central ECG workstation management software.
It supports HTTP two-way data interaction, allowing veterinarians to store, retrieve, classify and compare massive historical electrocardiogram records digitally instead of stacking bulky paper rolls in limited office space.
Batch electronic archiving fully standardizes pet medical documents, complies with strict overseas veterinary regulatory record requirements, and greatly reduces manual filing and physical storage costs for chain animal hospitals and large comprehensive pet medical centers.

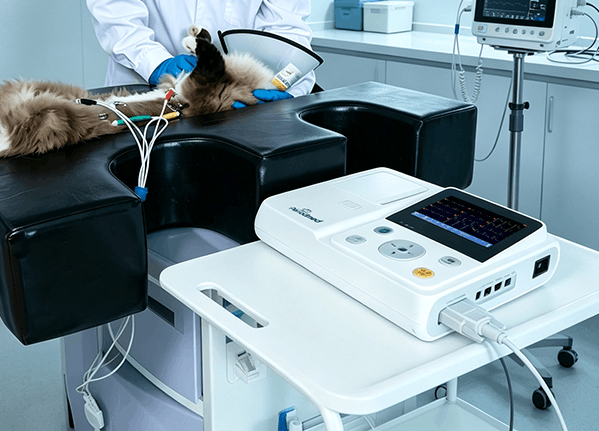

Available in two lightweight body sizes for 3-channel and 12-channel testing modes, the machine weighs merely 1.4kg or 2.8kg for easy placement on consultation desks, examination tables and mobile visiting trolleys for off-site services.
With wide AC input of 100V–240V 50/60Hz, it perfectly fits power supply standards across Southeast Asia, Latin America, Europe, the Middle East and other global target markets.
It acts as a core reliable cardiac inspection device for general pet clinics, veterinary teaching laboratories, animal quarantine stations and large-scale breeding farm periodic herd health screening projects.
| Lead | Standard 12 leads |
| Lead acquisition | 12 leads synchronously acquisition |
| Work mode | MAN, AUTO, R‑R, STOR |
| Filter | AC Filter:50Hz|60Hz/OffEMG Filter:25Hz|45Hz/Off |
| Common Mode Rejection | Common Mode Rejection |
| Input circuit | Floating: Protection against Defibrillator effect |
| Input Impedance | ≥2.5MΩ (10Hz) |
| Electrode DC current | ≤0.1μA |
| Input dynamic range | ±5mVp‑p DC bias voltage 2+620mV |
| Current leakage | <10μA |
| Calibrating voltage | 1mV+5% |
| Lag | <0.5mm |
| Sensitivity | 2.5,5,10,20,40, mm/mV (+3%) |
| Paper speed | 6.25, 12.5, 25, 50mm/s (+3%) |
| System error | < +5% or < +40uV |
| Inter‑channel Interference | <2% |
| System Noise | <30u Vp‑p |
| HR range | 30‑300 BPM (+1 BPM ) |
| Amplitude | 2mV‑250mV |
| Width | 0.1ms‑2.0ms |
| Sampling rate | 4000Hz/ channel |
| AC Power | AC100V‑240V, 50/60Hz, power60VA |
| USB Laser Printer | |
| Recording way | Thermal dot matrix recording |
| Recording format | 1ch,3ch,3ch+(3‑channel ECG)3ch++,6ch,6ch+,12ch(12‑channel ECG) |
| Paper Specification | 80mm×20m, Roll paper (3‑channel ECG) 210mm×30m, Roll paper (12‑channel ECG) |
| Communication interface | USB,UART |
| AC Power | AC100V‑240V,50/60Hz,power60VA |
| Dimensions and weight | (3‑channel ECG): 136mm x 116mm x35mm,1.4kg. (12‑channel ECG): 320mm x 234mm x85mm,2.8kg. |
