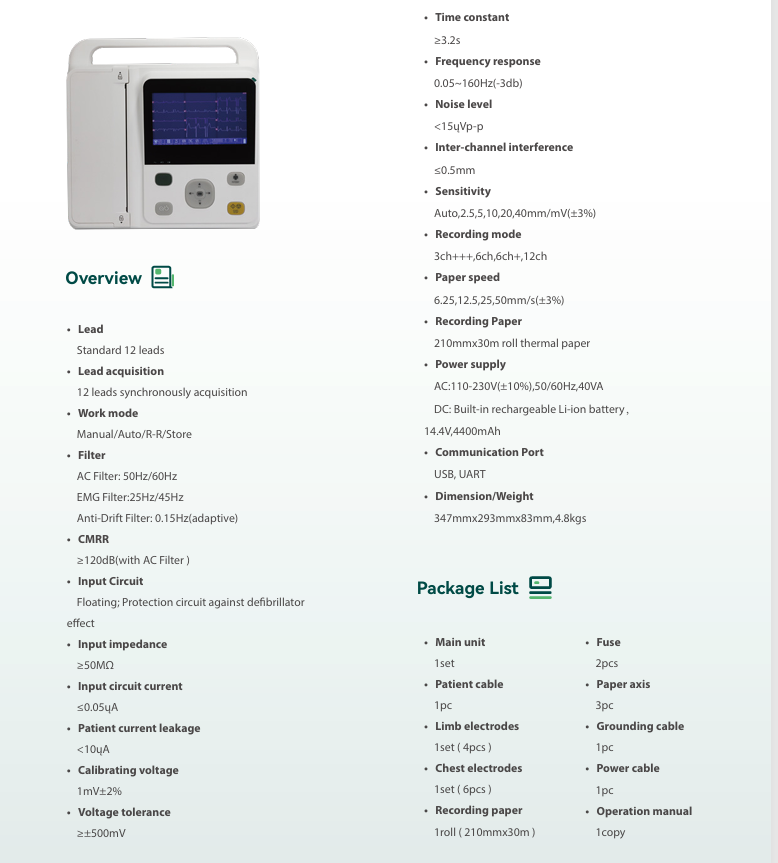

PE-E12C
YES
7-inch touch screen
Manual/Auto/R-R/Store
AC Filter: 50Hz/60Hz EMG Filter:25Hz/45Hz Anti-Drift Filter: 0.15Hz(adaptive)
110 ~ 240V, 50Hz/60Hz
built-in rechargeable 14.4v 4400mAh

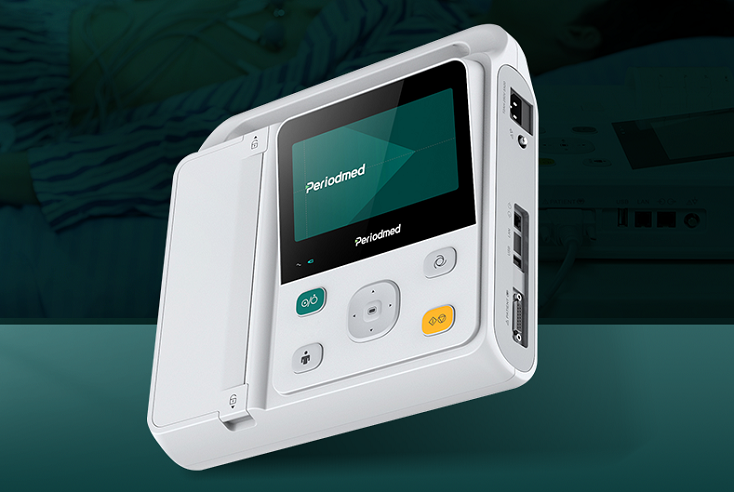

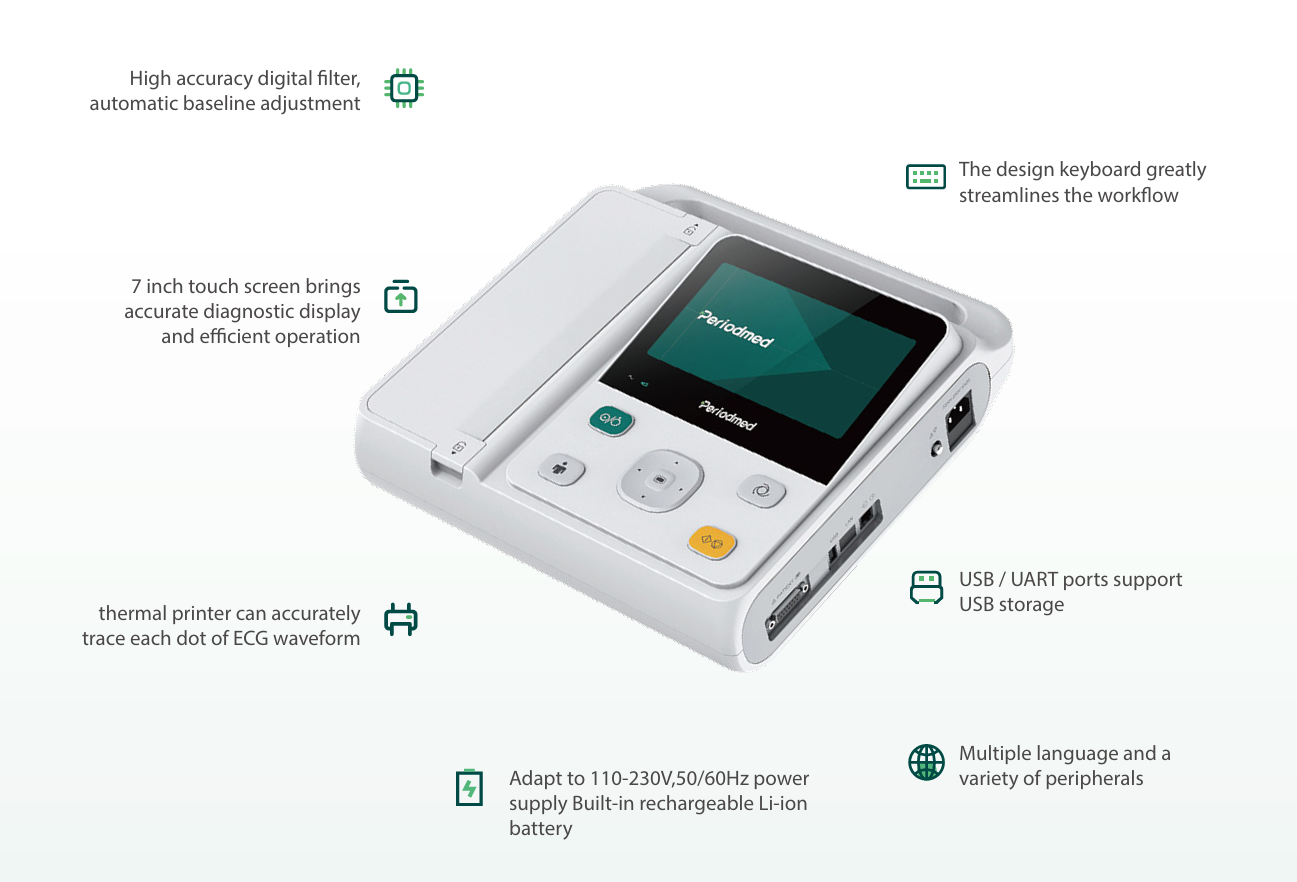

● PE-E12C ECG machine prioritizes accuracy and ease of use for medical office, ICU, CCU and more departments. It is a high-accuracy digital filter and automatic baseline adjustment ensure reliable ECG data.
● Its 7-inch touchscreen delivers accurate diagnostic displays for efficient operation, while the designed keyboard greatly streamlines workflow. It supports USB/UART ports for storage and has a thermal printer that traces every ECG waveform dot precisely.
● With multiple languages, compatibility with 110-230V/50-60Hz power, and a built-in rechargeable Li-ion battery, it adapts to diverse clinical needs.
● The ECG machine’s features overview highlights key practical functions. It enables simultaneously 12 leads acquisition, capturing comprehensive cardiac data for accurate assessments.
● Its applicable range covers both adults and pediatric patients, fitting diverse clinical scenarios. For global usability, it supports multiple languages including Simplified Chinese, English, Ukrainian, German, Italian, and Polish.
● Additionally, it has built-in protection against defibrillator, ensuring device safety and reliability during critical cardiac procedures.
● The ECG machine stands out with its robust Automatic Measurement and Diagnosis function. It automatically measures and diagnoses ECG waveform parameters, delivering key data like heart rate along with automatic diagnostic conclusions.
● For added flexibility, ECG parameters can be recorded either manually or automatically—adapting to different clinical needs.
● By streamlining parameter processing and reducing manual work, this feature significantly eases doctors’ workload, boosting efficiency in routine cardiac assessments.

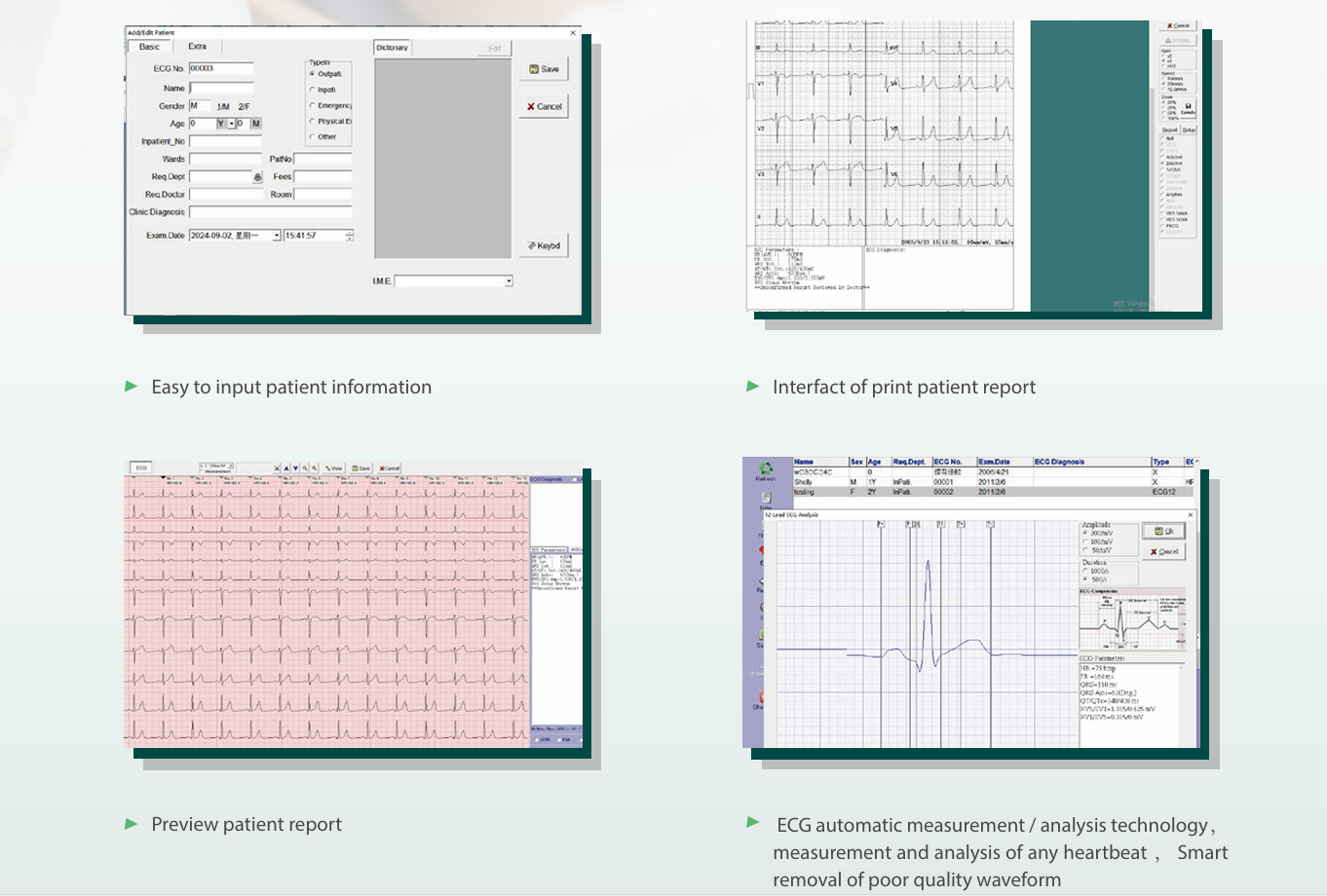

● The ECG machine simplifies patient information input, reducing operational complexity for clinicians.
● It also offers a dedicated interface to print patient reports and a preview function, enabling quick verification before output. Equipped with ECG automatic measurement/analysis technology, it can measure and analyze any heartbeat accurately.
● Plus, its smart feature removes poor-quality waveforms, ensuring the reliability of ECG data and further enhancing workflow efficiency in clinical practice.
