Small Parts Desktop Ultrasound Machine

DL151A

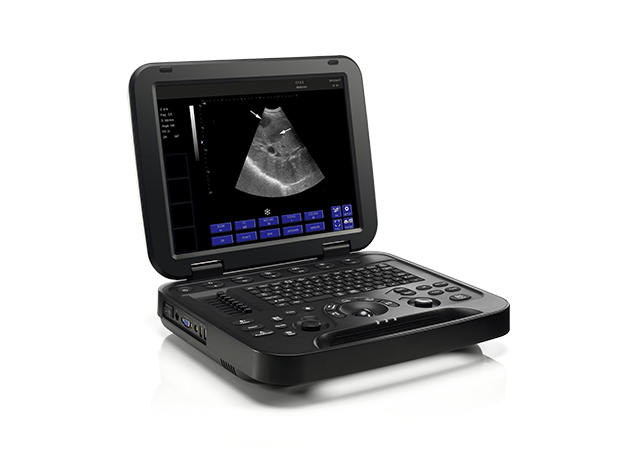

Black and White Ultrasound Machine|PU-DL151A

Desktop Small Parts Ultrasound Machine

Green line

PU-DL151A redefines small parts ultrasound scanning efficiency in diagnostic imaging with its thoughtful design and reliable performance. Crafted for seamless clinical use, this desktop ultrasound device combines a user-centric ergonomic silicone keyboard with a robust ARM chip architecture—delivering stable, consistent performance in a streamlined, powerful package. Our classic black-and-white ultrasound machine works seamlessly for small parts ultrasound, while core hardware features are engineered to support accurate, efficient diagnostics.









  • 画板 1 拷贝

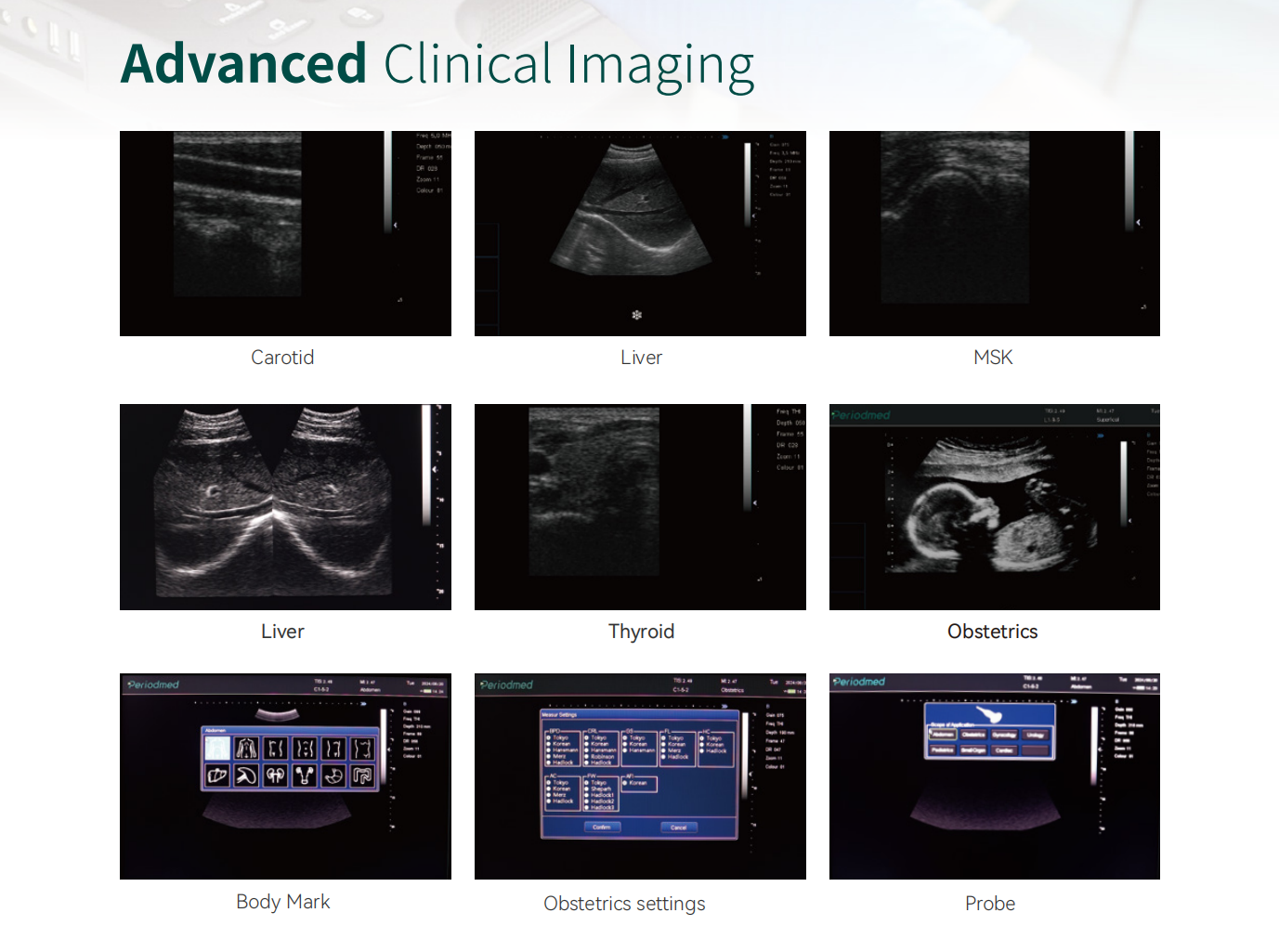

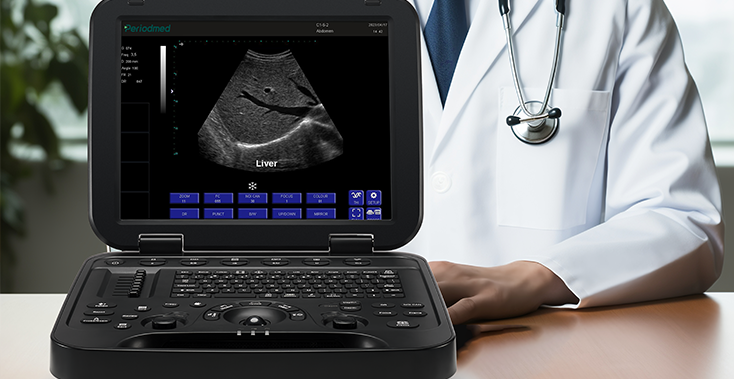

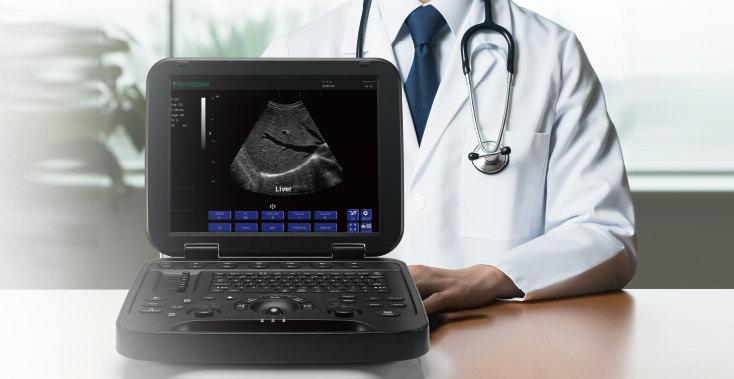

    Clear Visualization of Small Parts Ultrasound Imaging

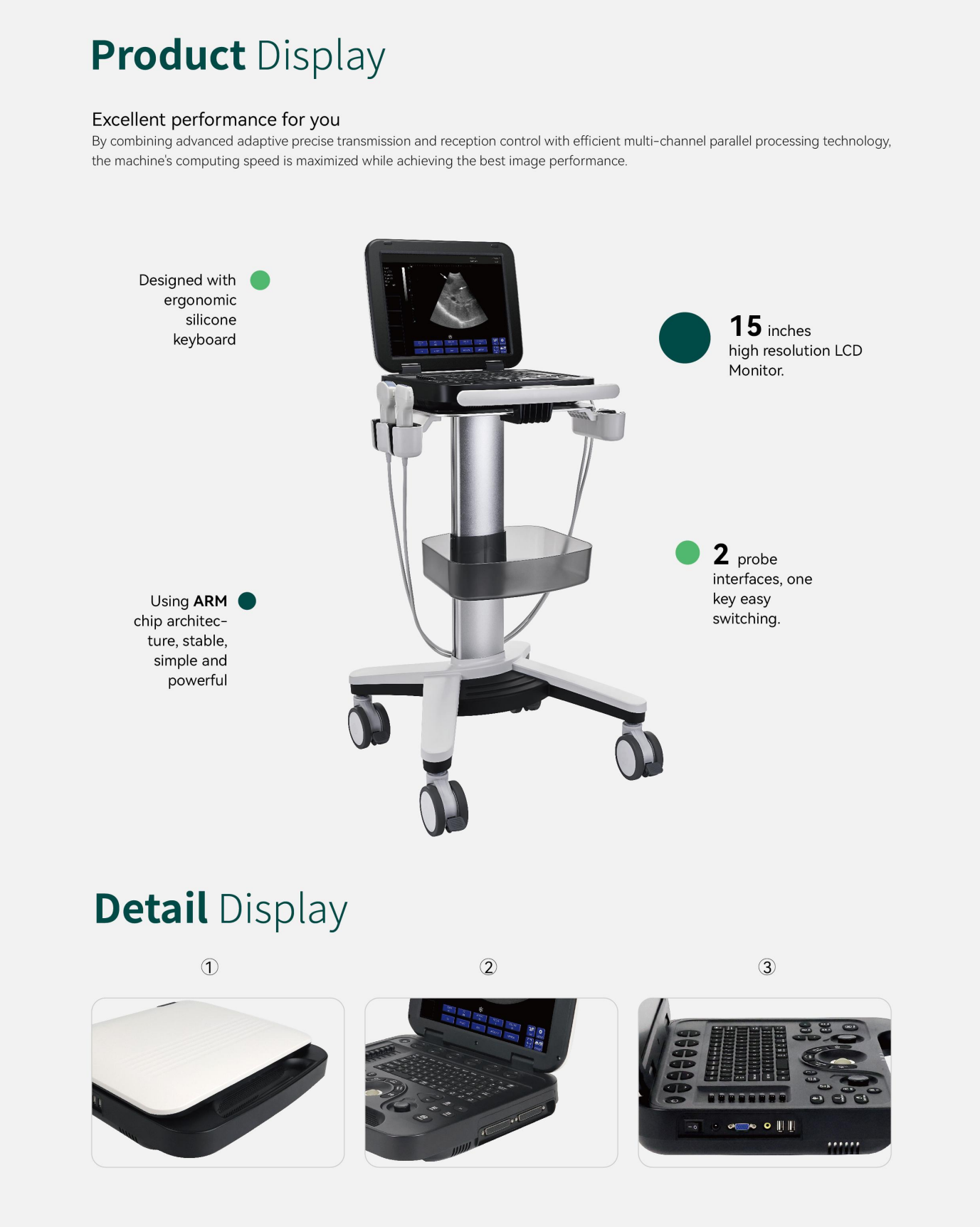

    At the heart of its usability is a 15-inch high-resolution LCD monitor, providing crisp, clear visualization of ultrasound imaging to help doctors quickly identify key anatomical details. Complementing this is a dual-probe interface system with one-key easy switching, eliminating cumbersome setup steps and minimizing downtime between patient scans. Whether in a busy clinic or a specialized department, PU-DL151A balances simplicity and functionality to meet daily clinical needs.

    •

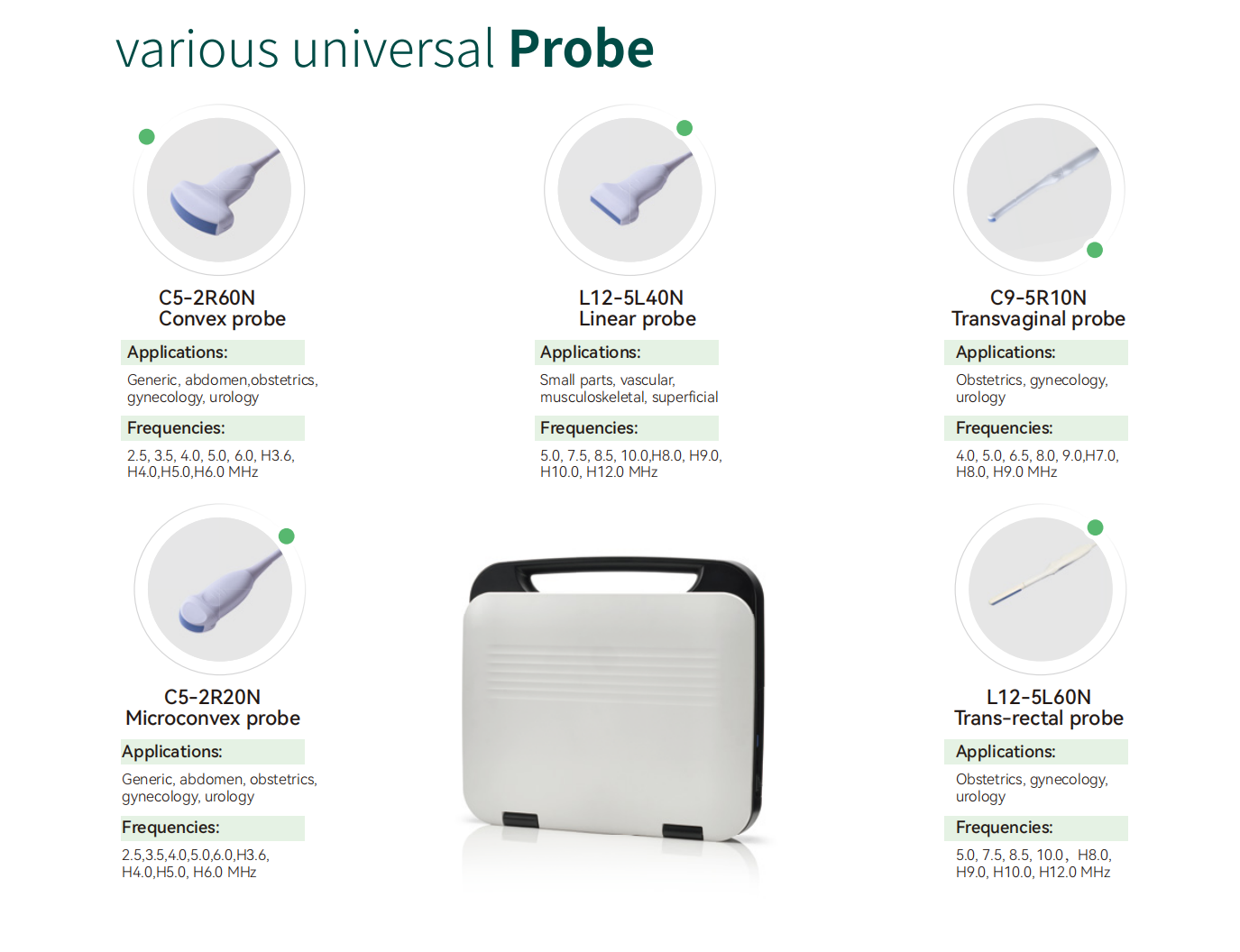

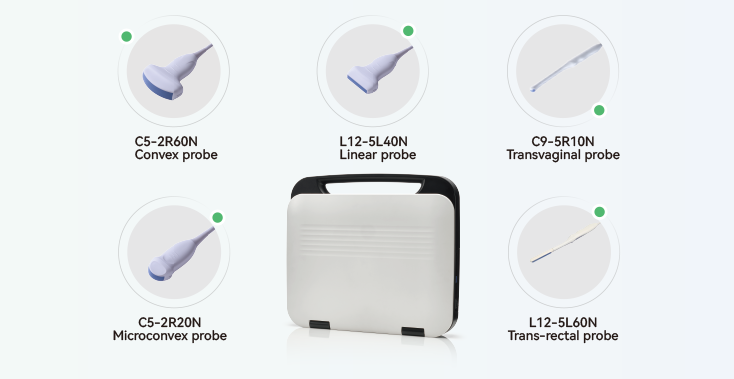

  • Transducers for Small Parts Ultrasound

    PU-DL151A is a small parts ultrasound machine using high-frequency sound waves and specialized transducers to create detailed images of superficial body structures like the thyroid, testes, breasts, and musculoskeletal areas, allowing for the diagnosis of conditions such as lumps, inflammation, or tears. The image is clear and the operation is convenient with the powerful image post-processing functions.



    画板 1 拷贝 3

    •

  • 画板 1 拷贝 2

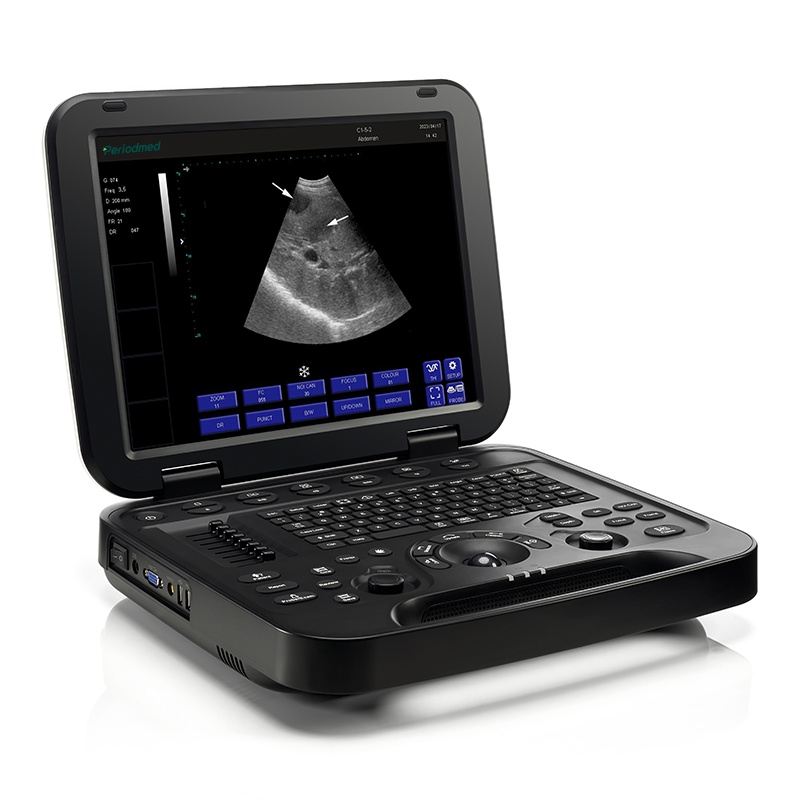

    Portable Small Parts Ultrasound Device

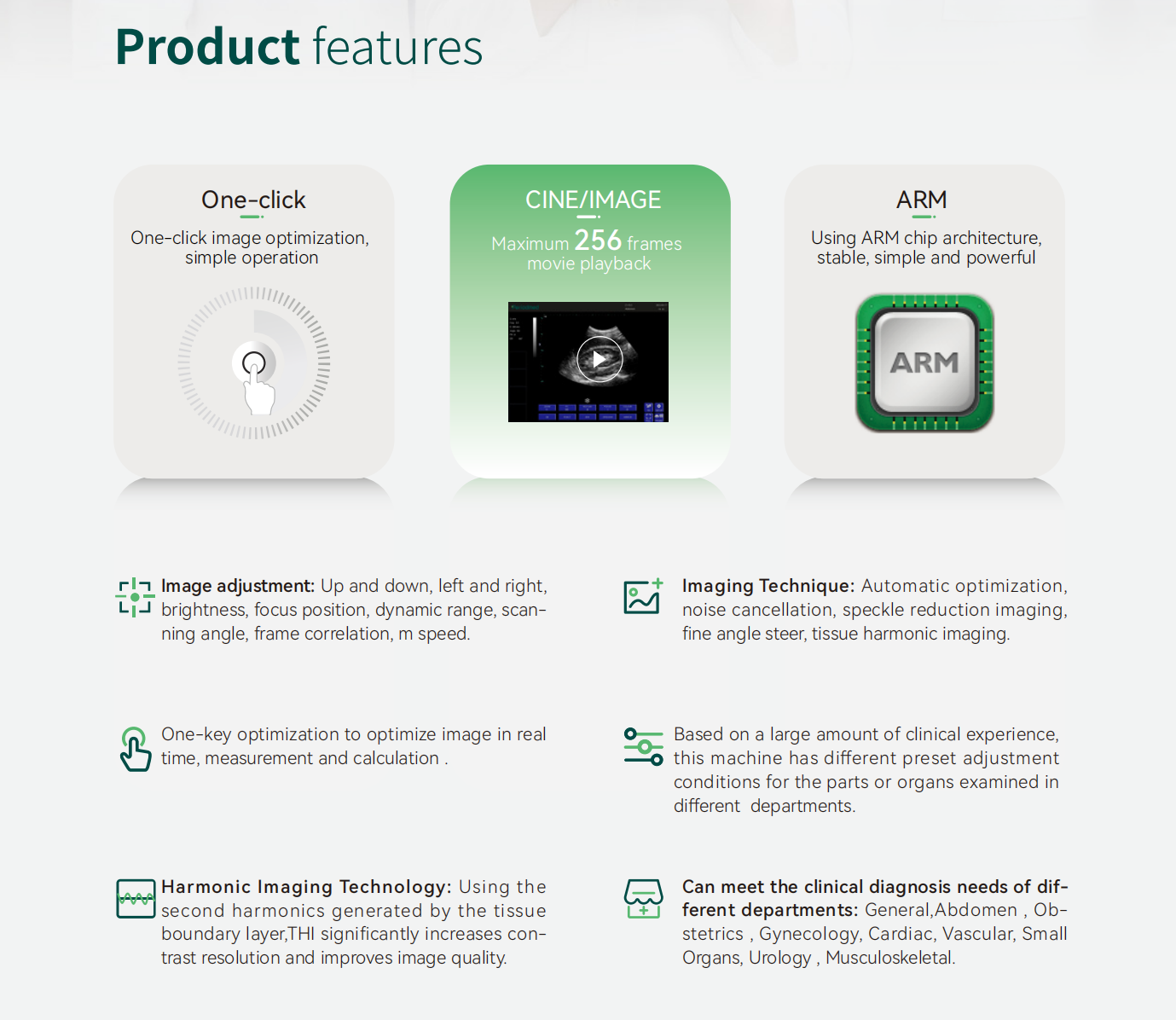

    Image adjustment: Up and down, left and right, brightness, focus position, dynamic range, scanning angle, frame correlation, m speed. Automatic optimization, noise cancellation, speckle reduction imaging, fine angle steer, tissue harmonic imaging. One-key optimization to optimize image in real time, measurement and calculation. Using the second harmonics generated by the tissue boundary layer, THI significantly increases contrast resolution and improves image quality.

    •

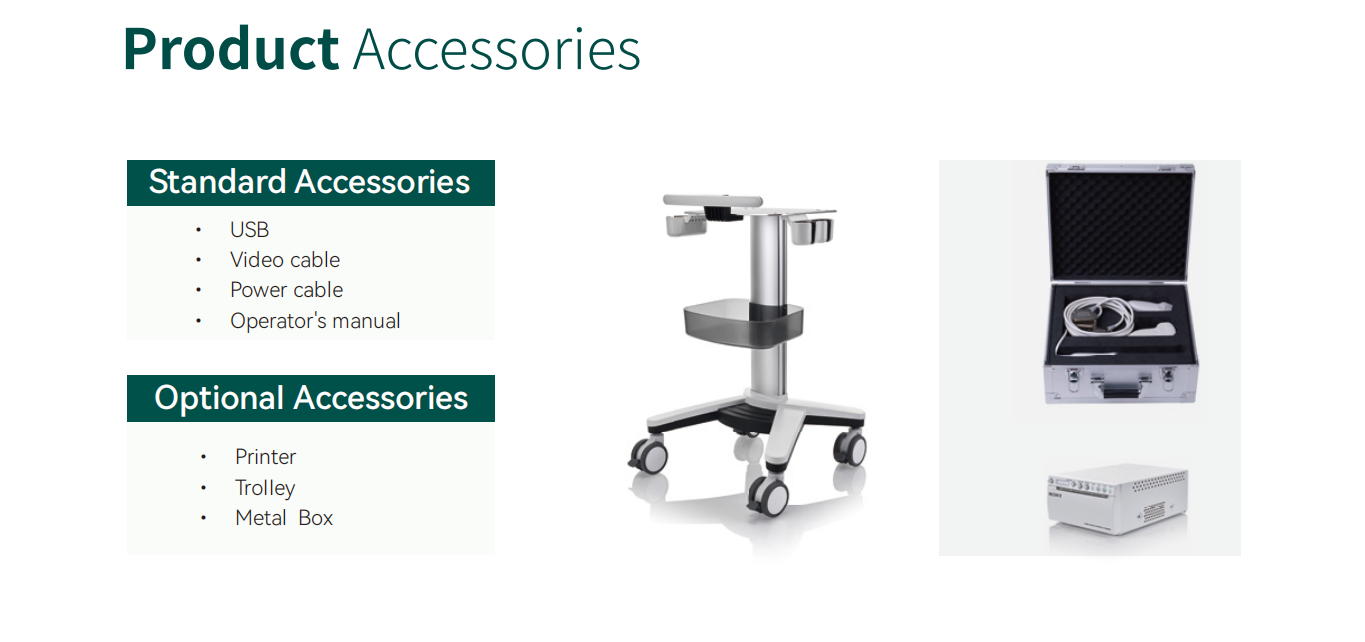

    • Product Accessories

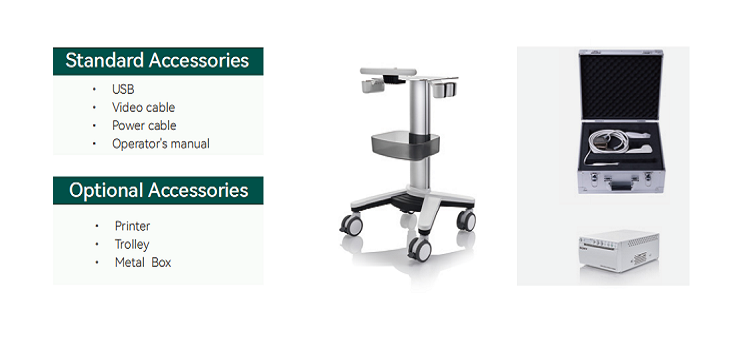

      To meet both basic operational needs and personalized application scenarios, PU-DL151A offers a complete set of standard accessories and optional expansion accessories, ensuring flexibility and practicality. Standard accessories include USB, video cable, power cable, operator's manual, and optional accessories include printer, trolley, and metal box.

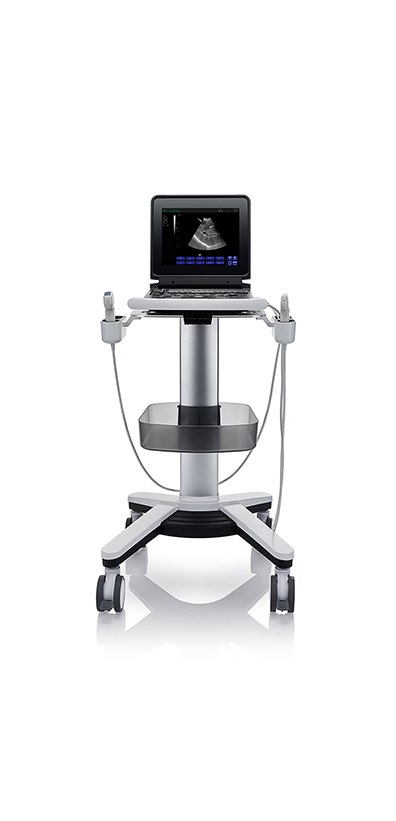

      Trolley and accessories

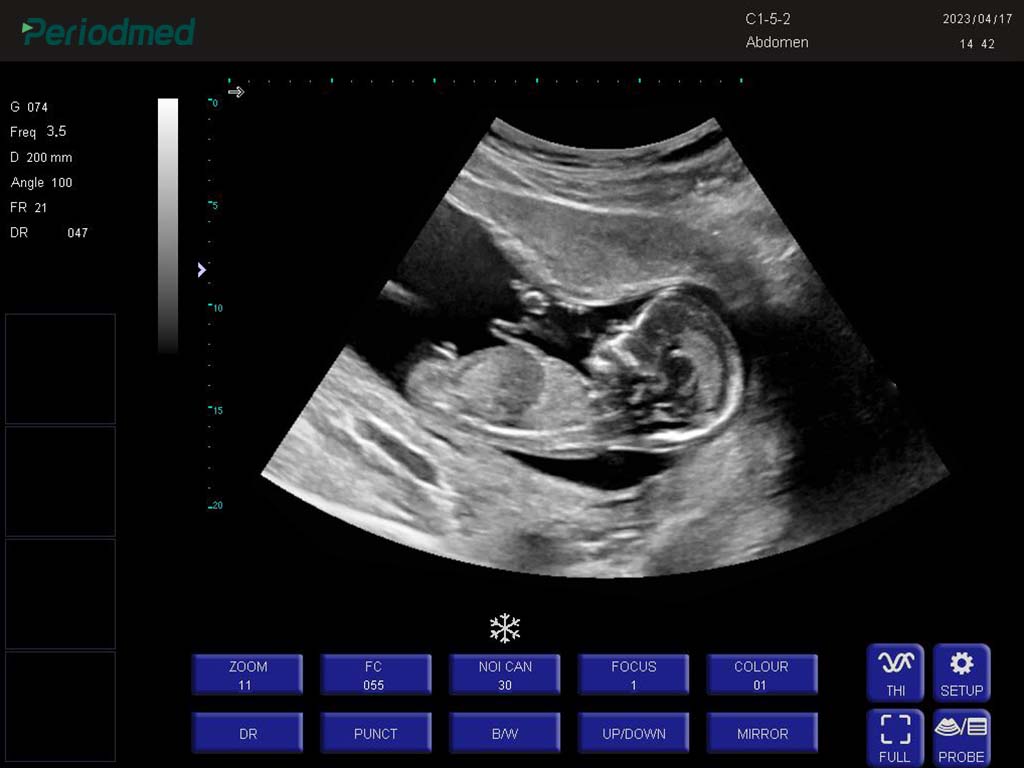

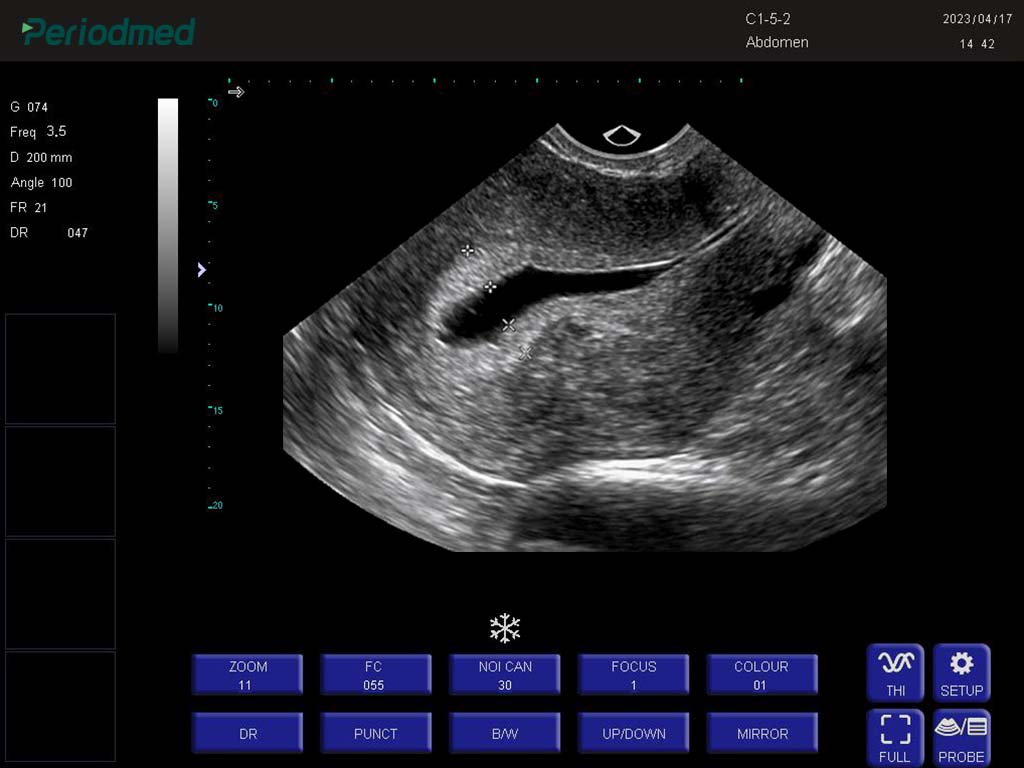

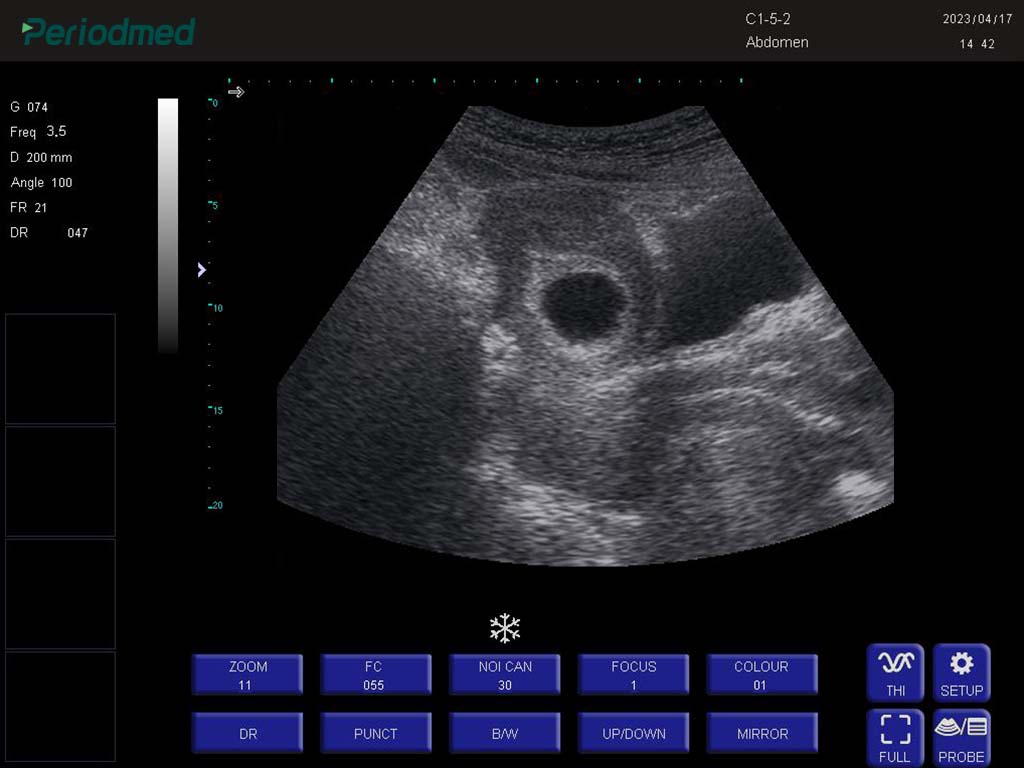

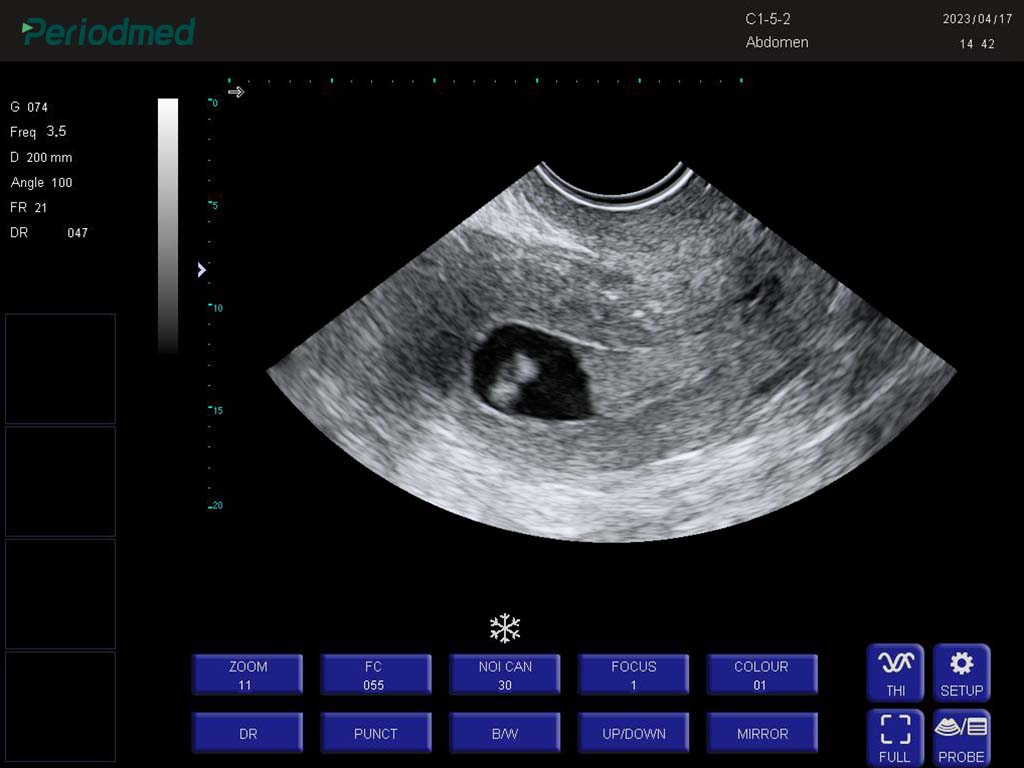

Ultrasound Obstetrics and gynecology Images

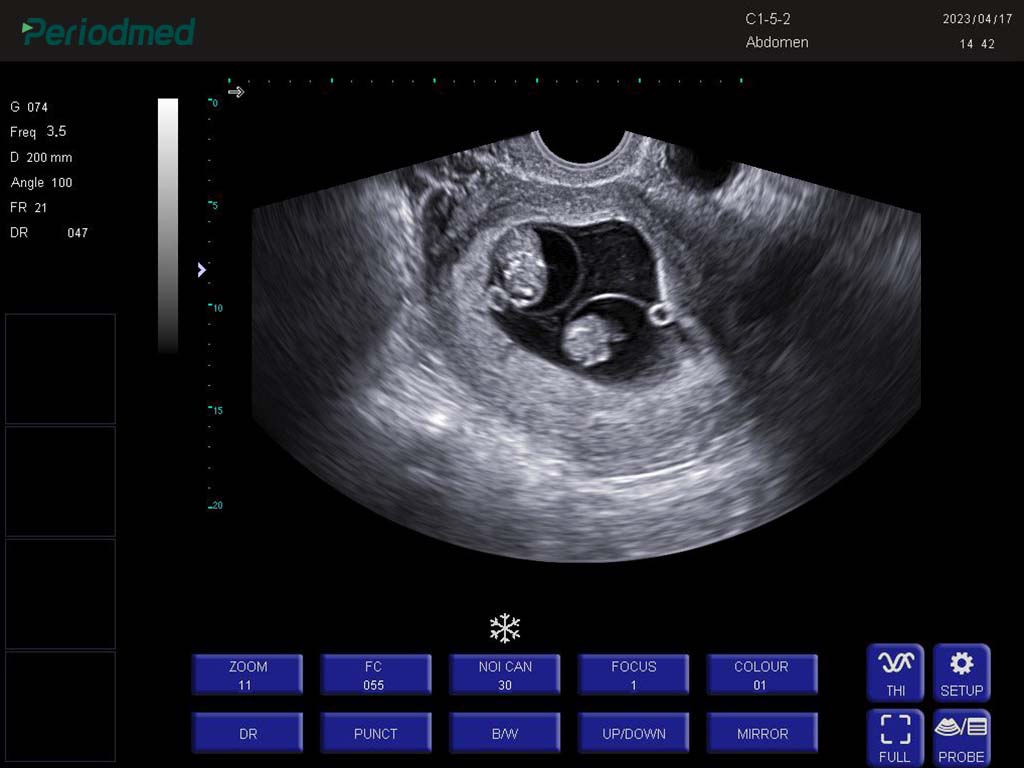

  • Trans-vaginal Probe-B Mode-Uterus 2
  • Trans-vaginal Probe-B Mode-Uterus 4
  • Convex Probe-B Mode-Abdomen
Ultrasound Obstetrics and gynecology Images
  • Trans-vaginal Probe-B Mode-Uterus 4
  • Trans-vaginal Probe-B Mode-Uterus1
  • Trans-vaginal Probe-B Mode-Uterus5

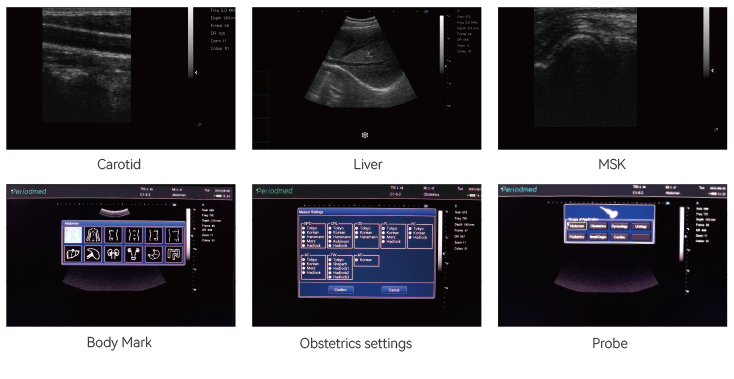

Ultrasound General imaging Images

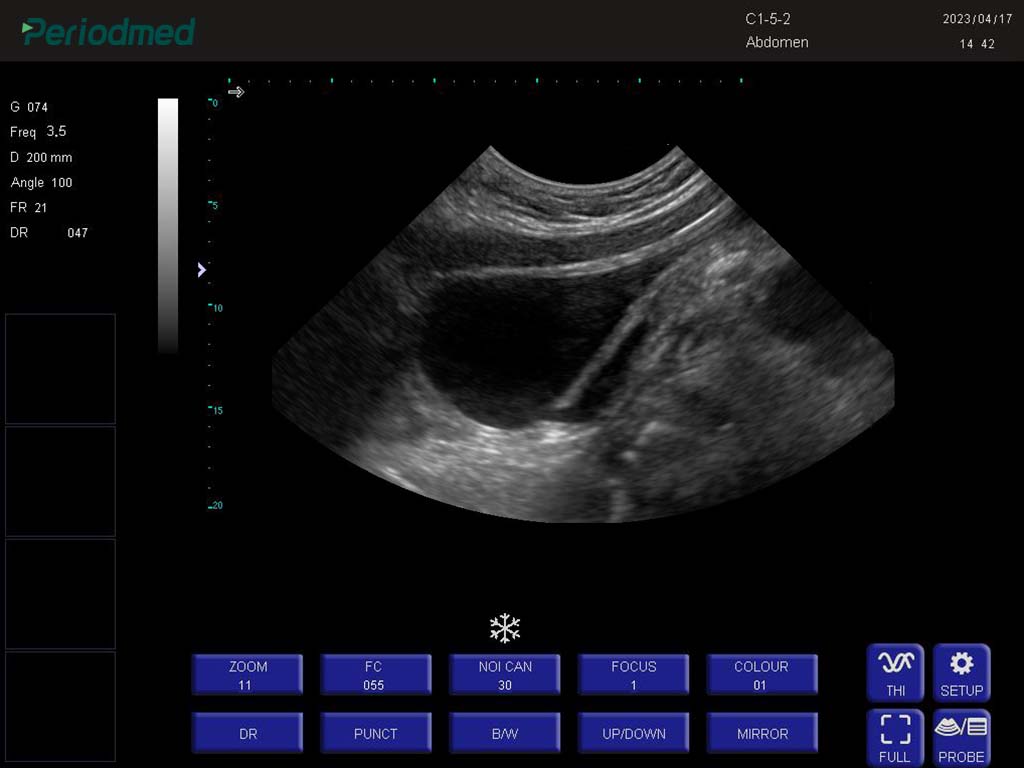

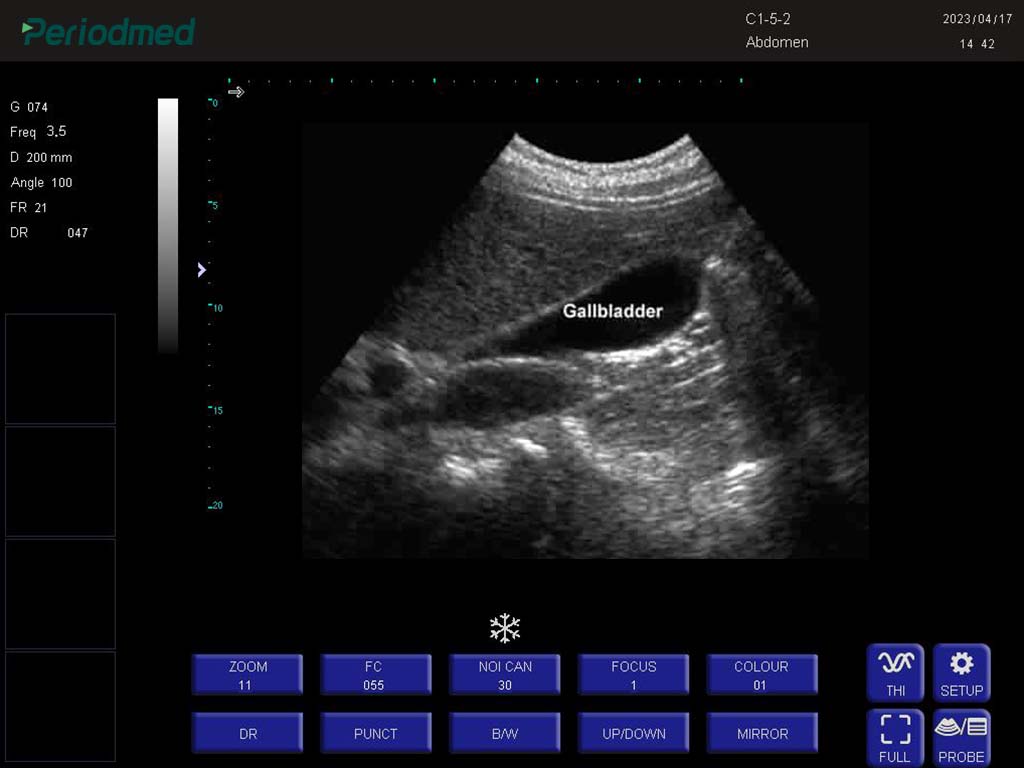

  • Convex Probe-B Mode-Gallbladder2

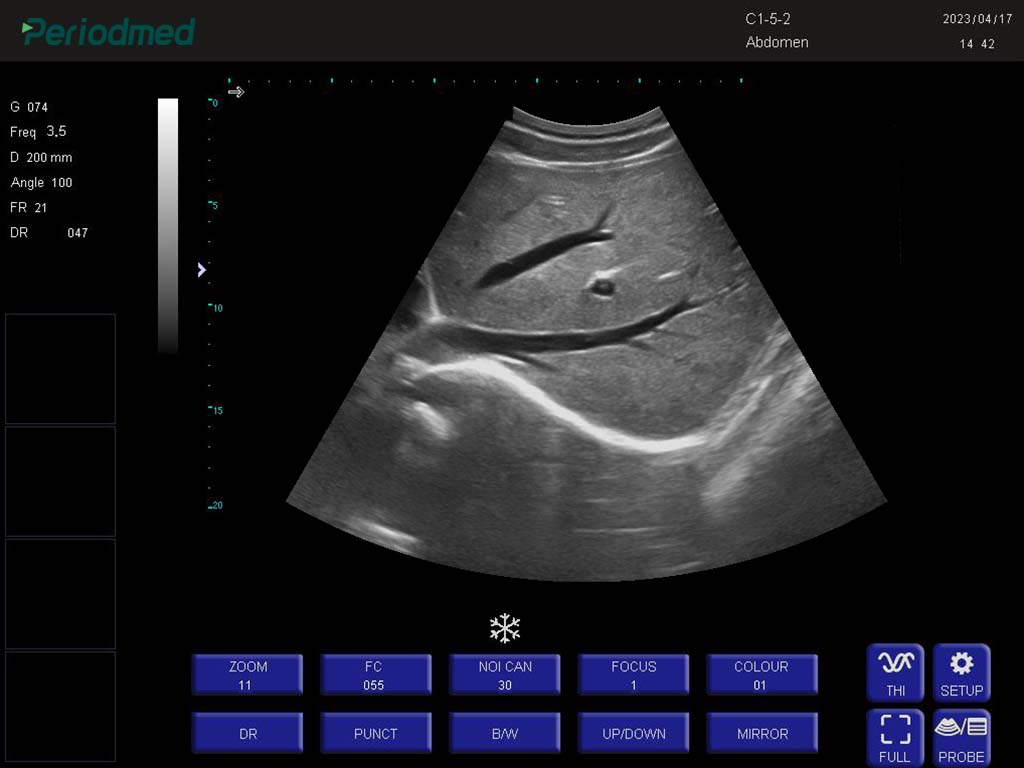

  • Convex Probe-B Mode-Liver5

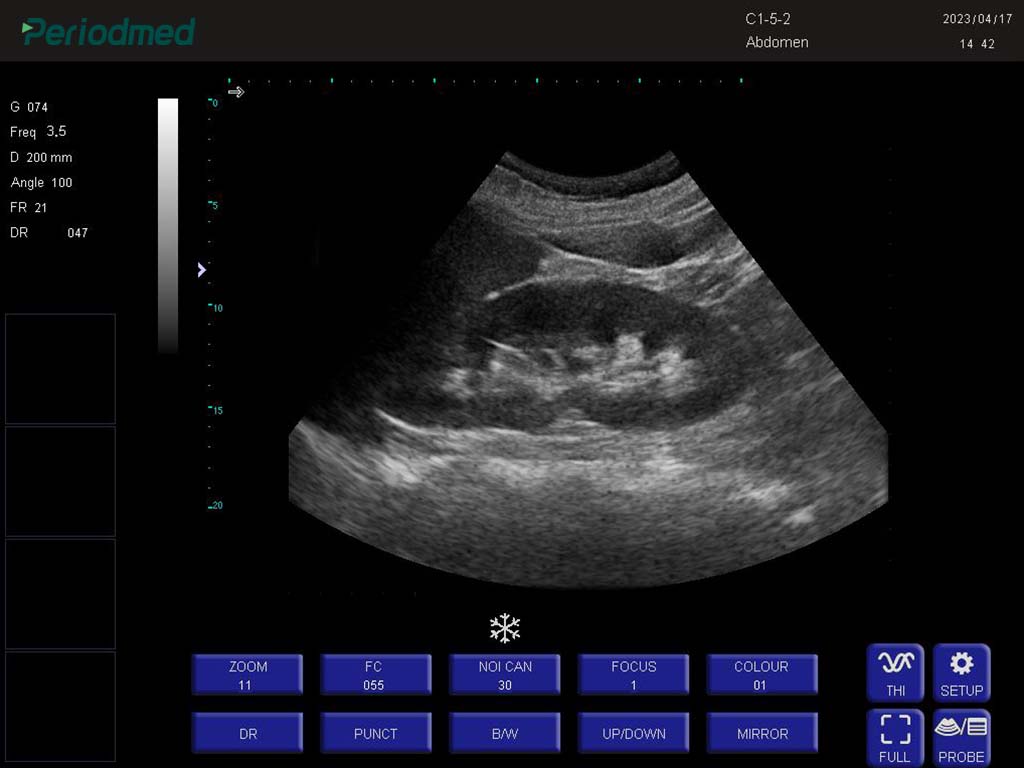

  • Convex Probe-B Mode-Kidney6

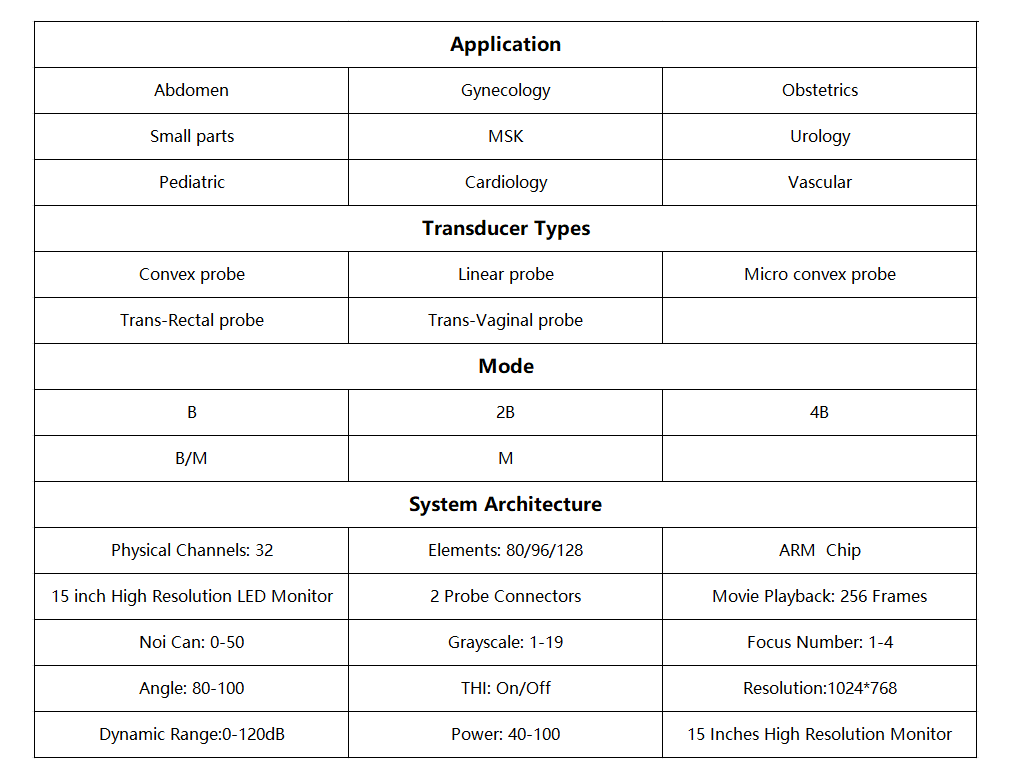

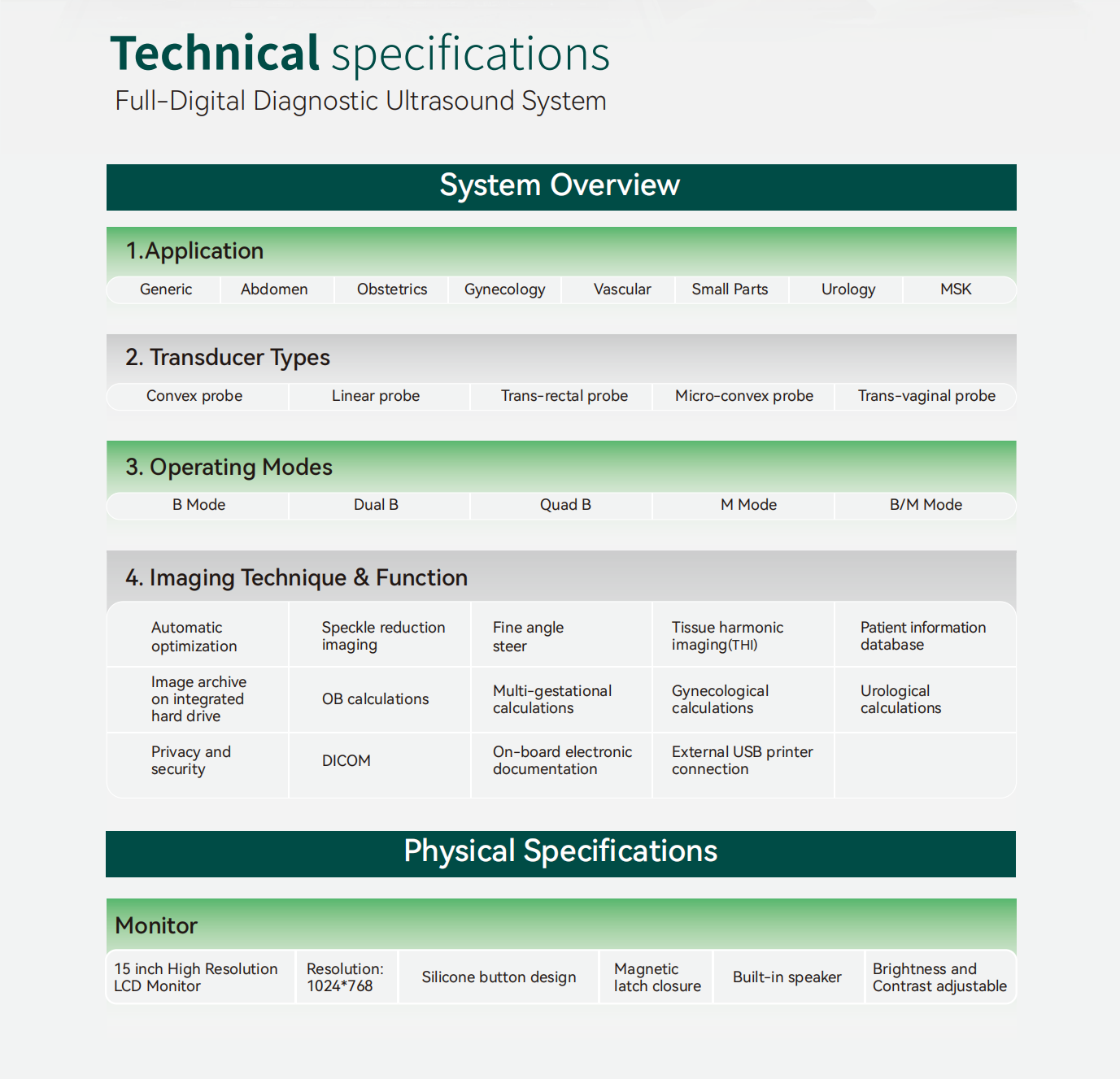

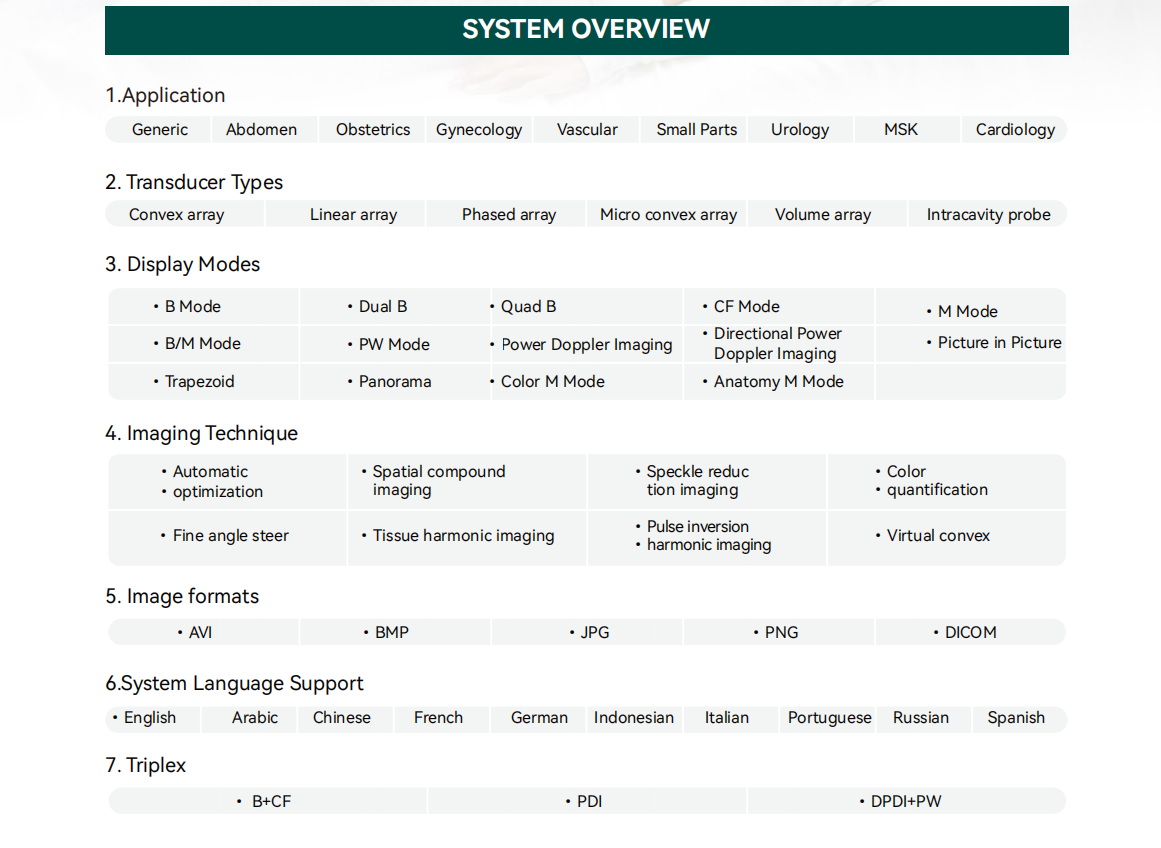

Specification

Application
AbdomenObstetricsGynecologyPediatrics
VascularSmall PartsUrologyThyroid
CardiologyMSK
Image Formats
AVIBMPJPGPNG
DICOM
Transducer Types
Convex probeLinear probeTrans-rectal probe
Micro convex array
Trans-vaginal probe
    Operating Mode
B
2B
4B
MB/M
System Architecture
Physical Channels: 32Elements: 80/96/128THI:On/Off2 Probe connectors
Dynamic range:0-120dbPower:40-10015 Inches High Resolution LED MonitorResolution:1024*768
Physical Specs
Silicone button designMagnetic latch closureBuilt-in speakerBrightness and contrast adjustable

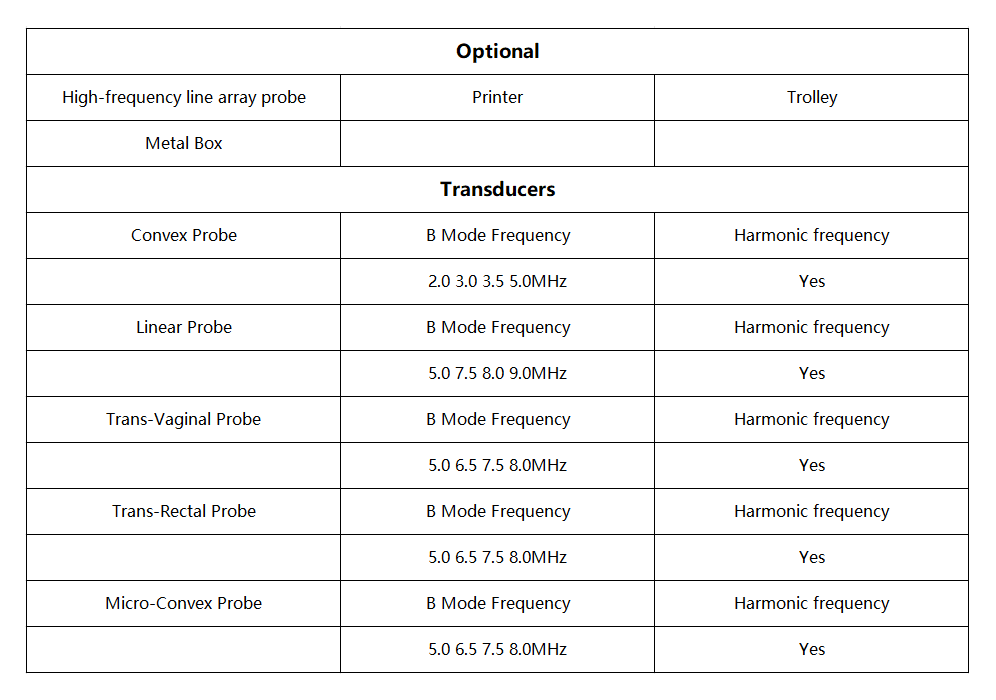

Optional
High-frequency line array probe
TrolleyPrinterMetal box
