Wireless Handheld Ultrasound

Pediatric Physical Exam Handheld Ultrasound Device

PIU1D

Ultra-Portable and Highly Flexible | PIU1D

Pediatric Physical Exam Ultrasound Device

Green line

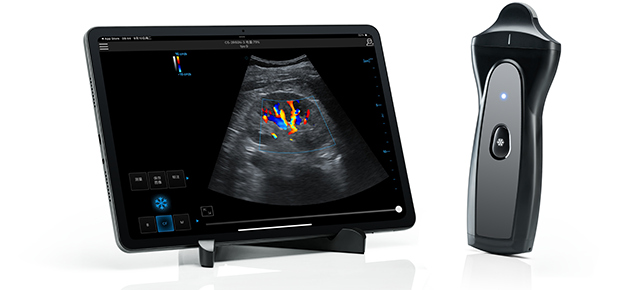

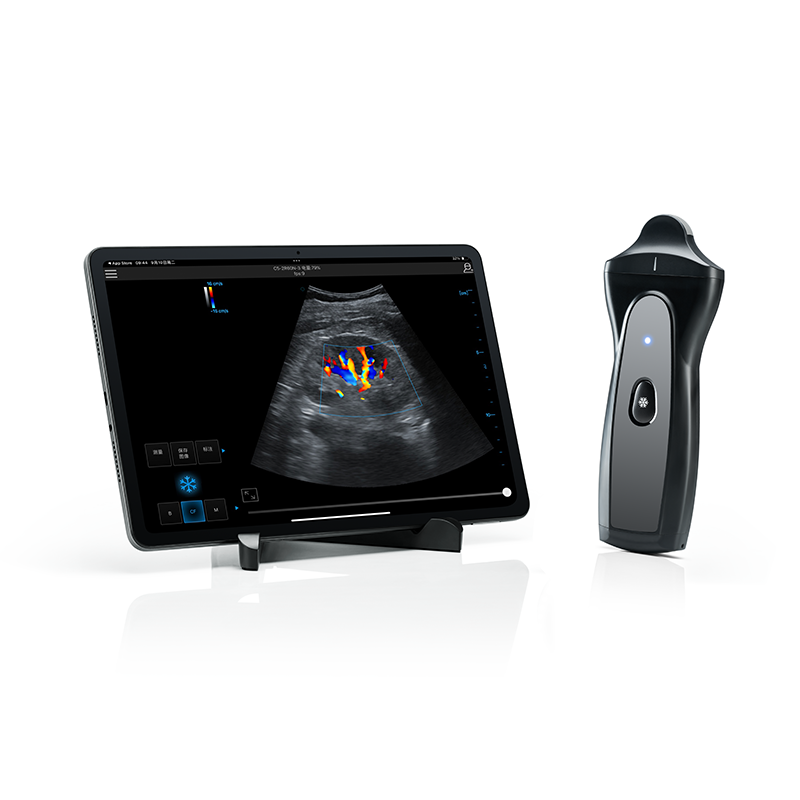

PIU1D is a wireless ultrasound system that enables pediatric doctors to diagnose abdominal pain, identify masses, or evaluate organ enlargement. It not only has an ntuitive interface, but also features enhanced image clarity and diagnostic accuracy backed by advanced imaging algorithms, leading to more accurate assessments and informed decisions.









  • lQLPJw9mgfiA7knNAXvNAt6wi0qvCFGG1WUIqdxthL__AQ_734_379



    Micro Convex Probe for Pediatric Physical Exam

    PIU1D comes with a micro convex probe for targeted area scanning, ideal for pediatric physical examinations, such as children liver or kidney exams, and diagonosis of pediatric conditions such as intussusception, appendicitis, and children joint injuries. Choose various imaging mode you want from B-mode, M-mode, Color Doppler, Power Doppler, and Pulsed Wave Doppler, etc.

    •

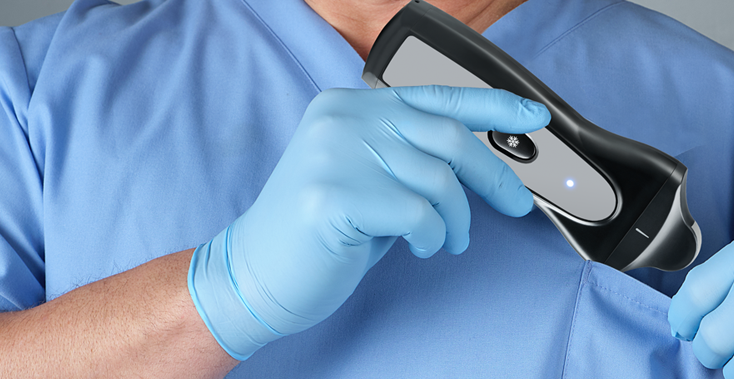

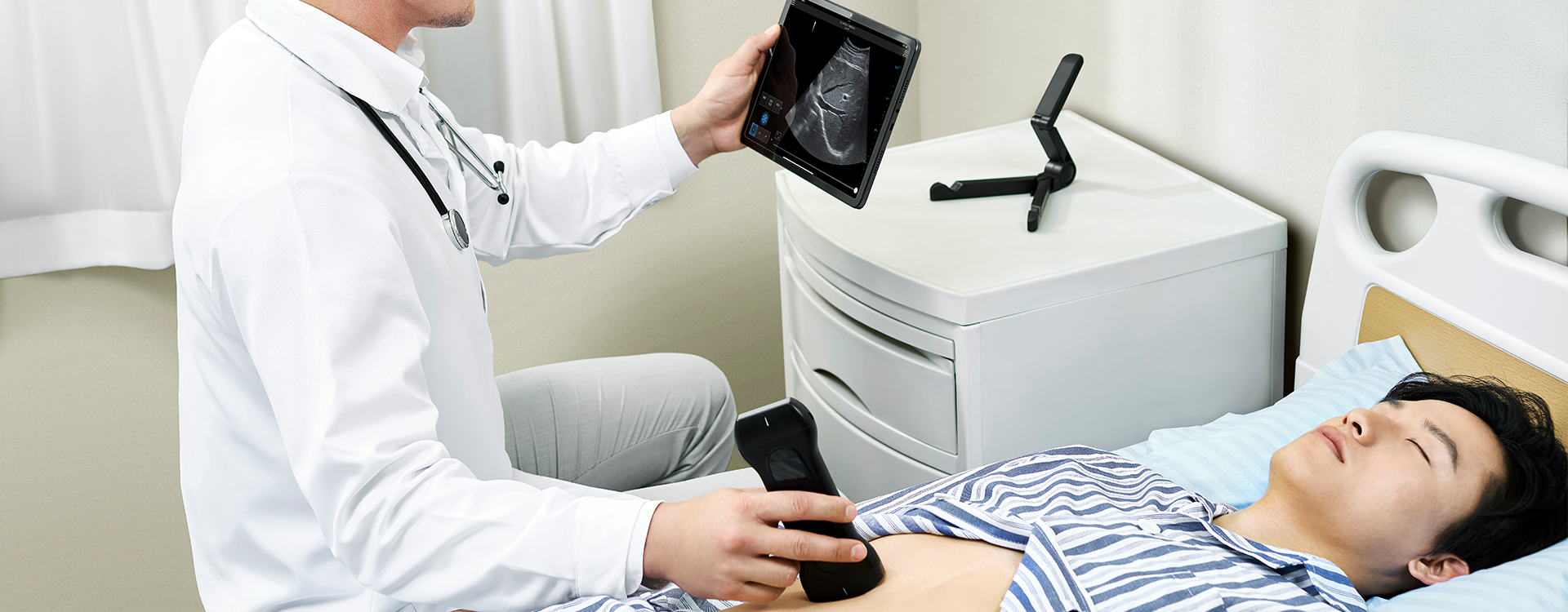

  • Goodbye Wires, Hello Maximum Mobility

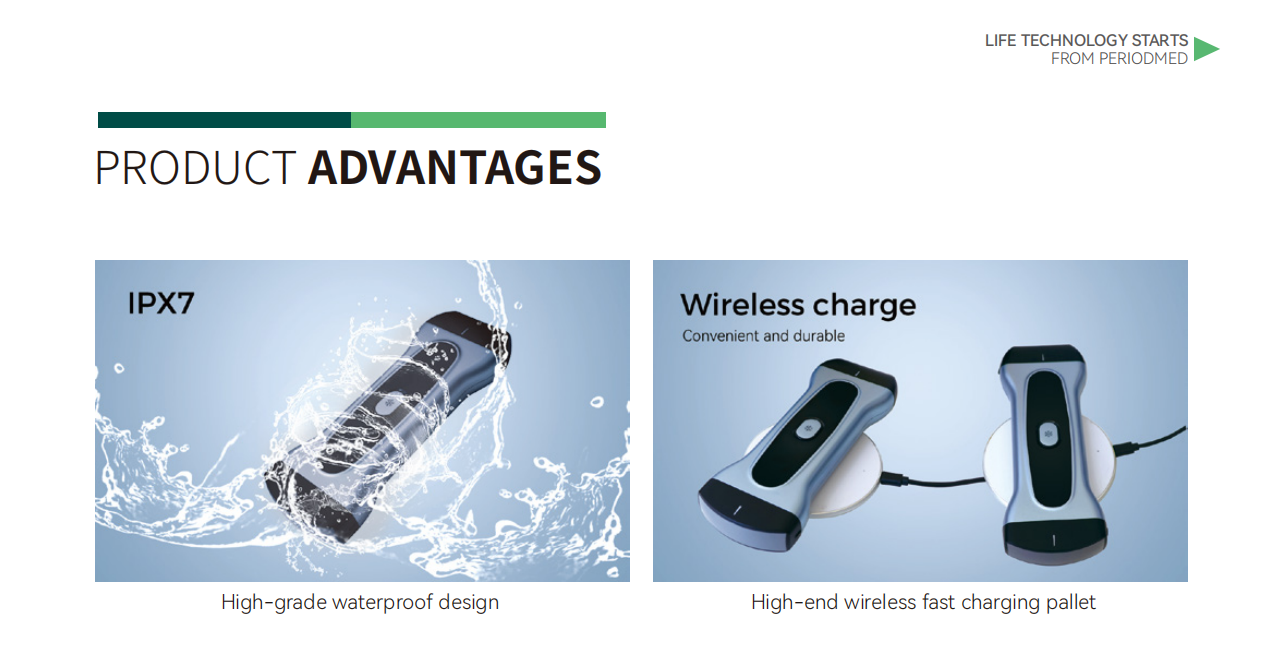

    PIU1D wireless handheld ultrasound machine ensures a reliable direct Wi-Fi connection to mobile devices of pediatricians—no ports, no cables—making practices fully wireless and easy to disinfect quickly. It supports wireless charging, unleashing mobility, and helping to reduce the risk of infection, providing you with the flexibility to conduct scans effortlessly wherever you go.



    lQLPKG1YpTOGPknNAXvNAt6w9mnmD6p75moIqdxthL__AA_734_379

    •

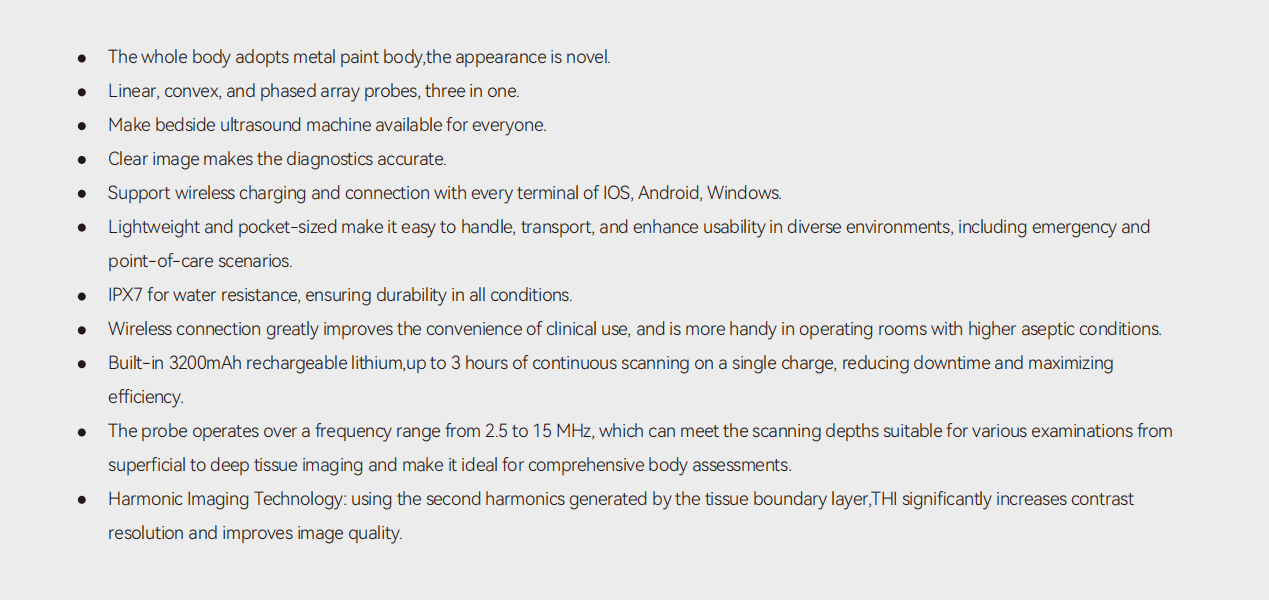

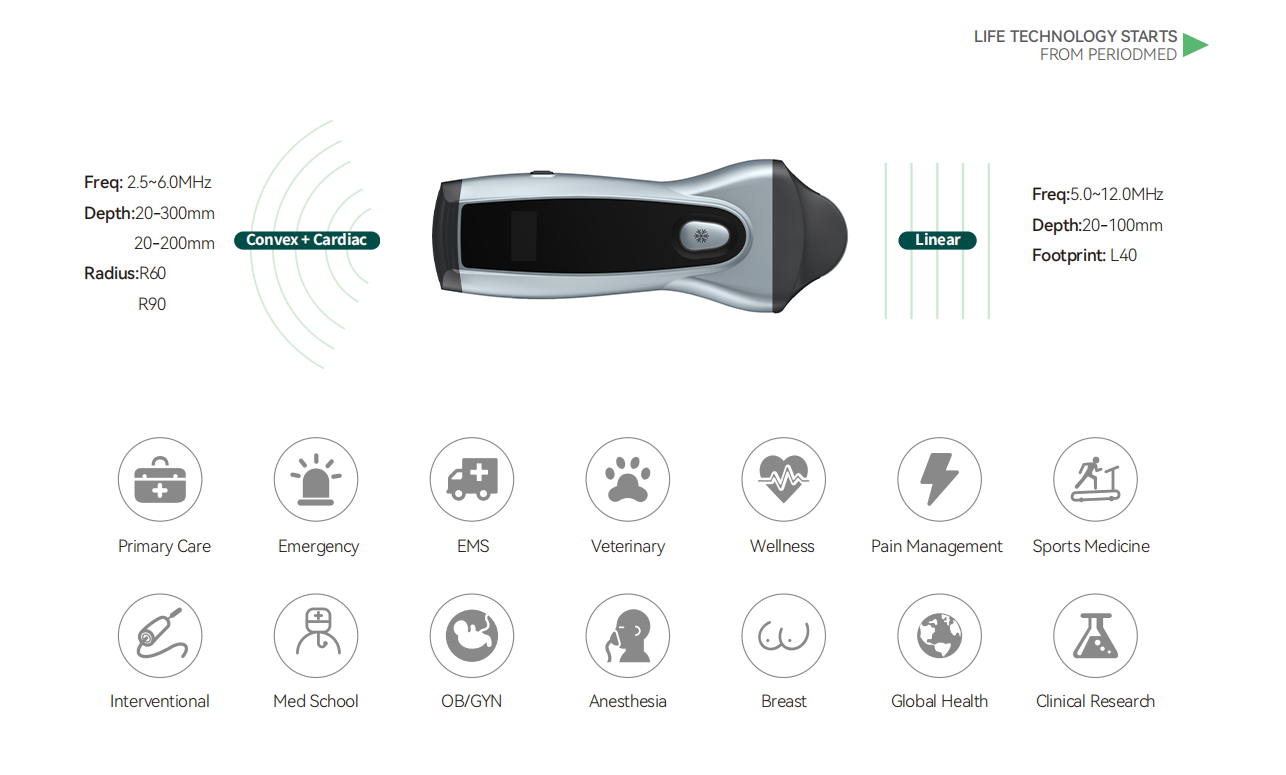

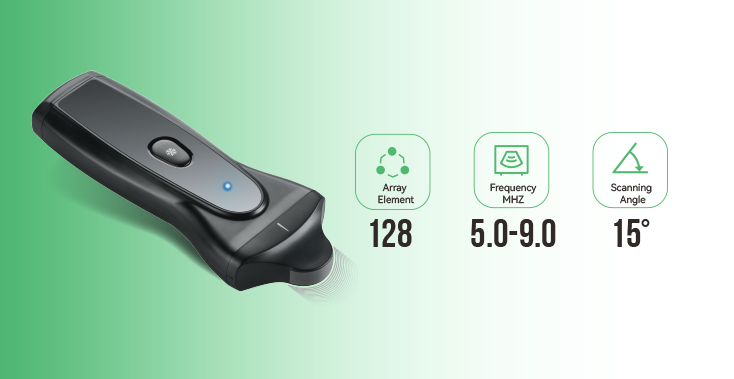

  • PIU1D key features

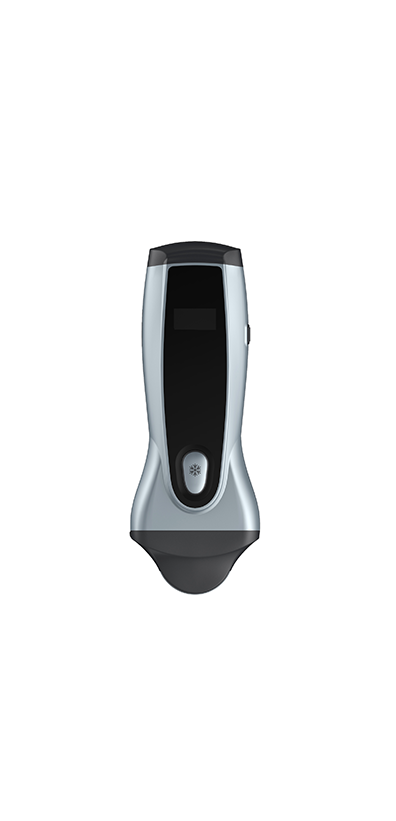

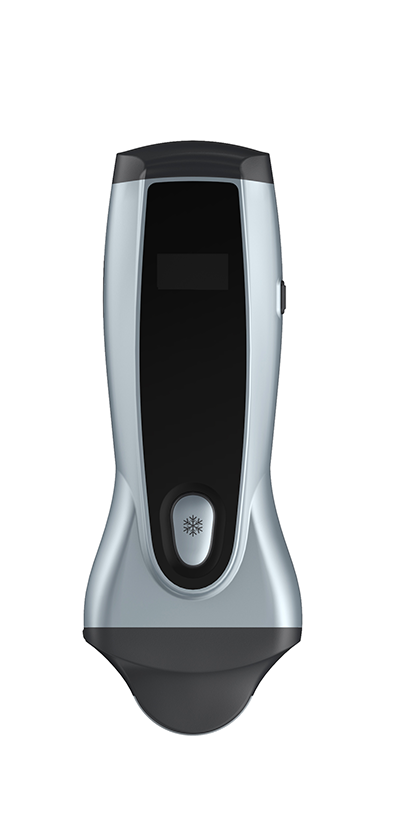

    Light Pediatric Ultrasound Device

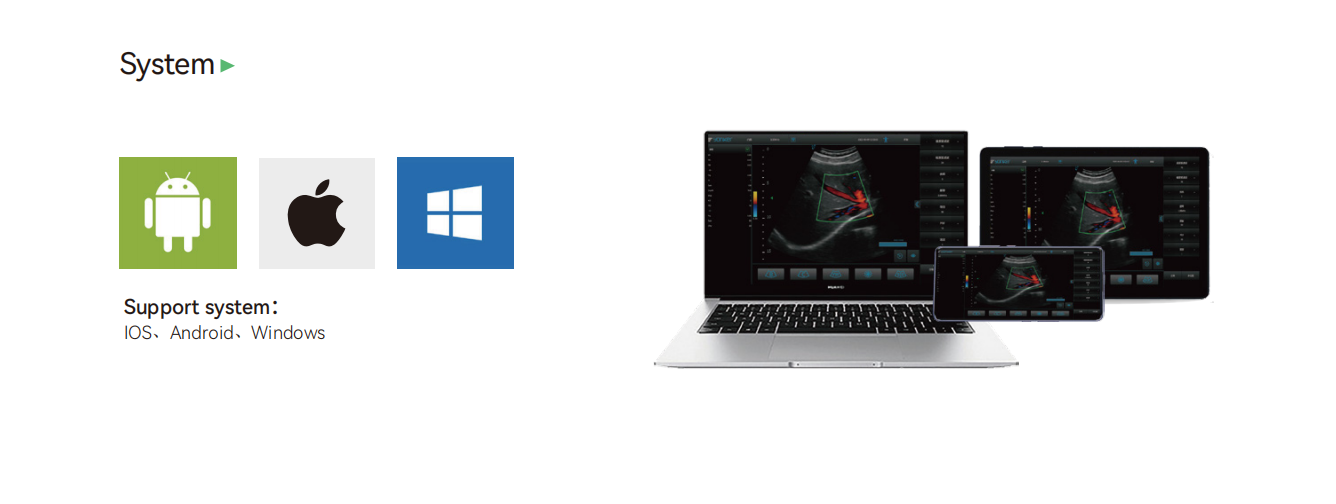

    Lightweight ultrasound is designed with just 212g weight for pediatrics. PIU1D has 128 element channels with robust performance for various clinical environments. Its frequency ranges from 5.0 to H9.0 with scanning depth ranging from 30 to 150 mm. Protection case can also work as wireless fast charger. It supports Windows, Android, and IOS.

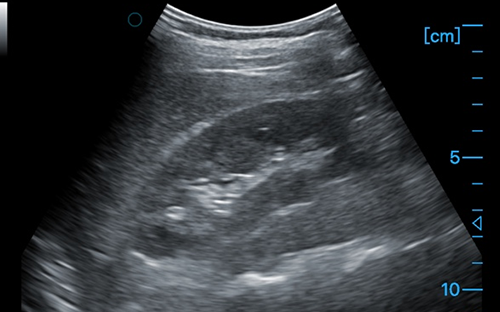

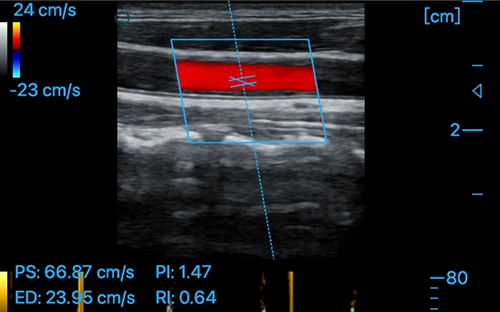

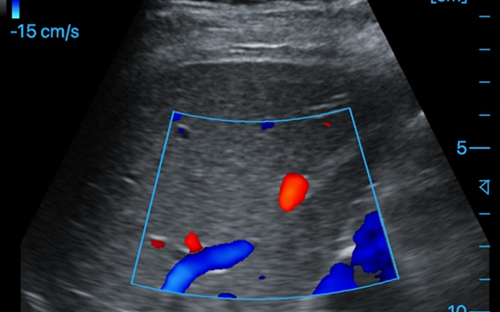

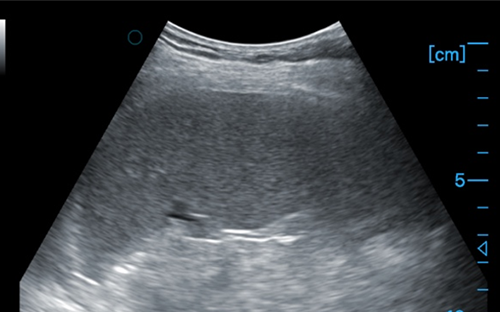

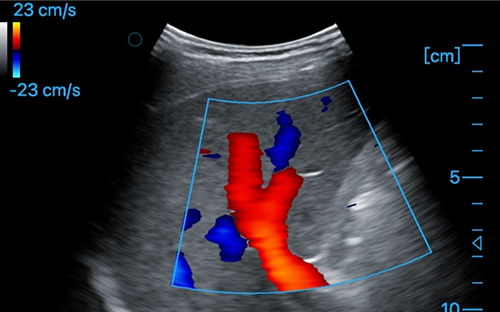

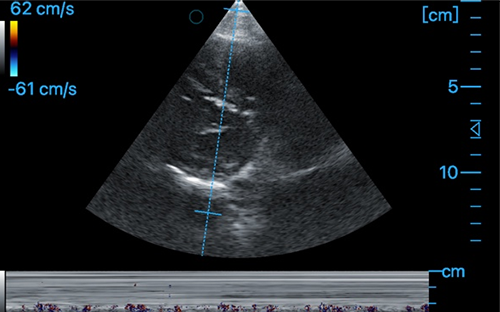

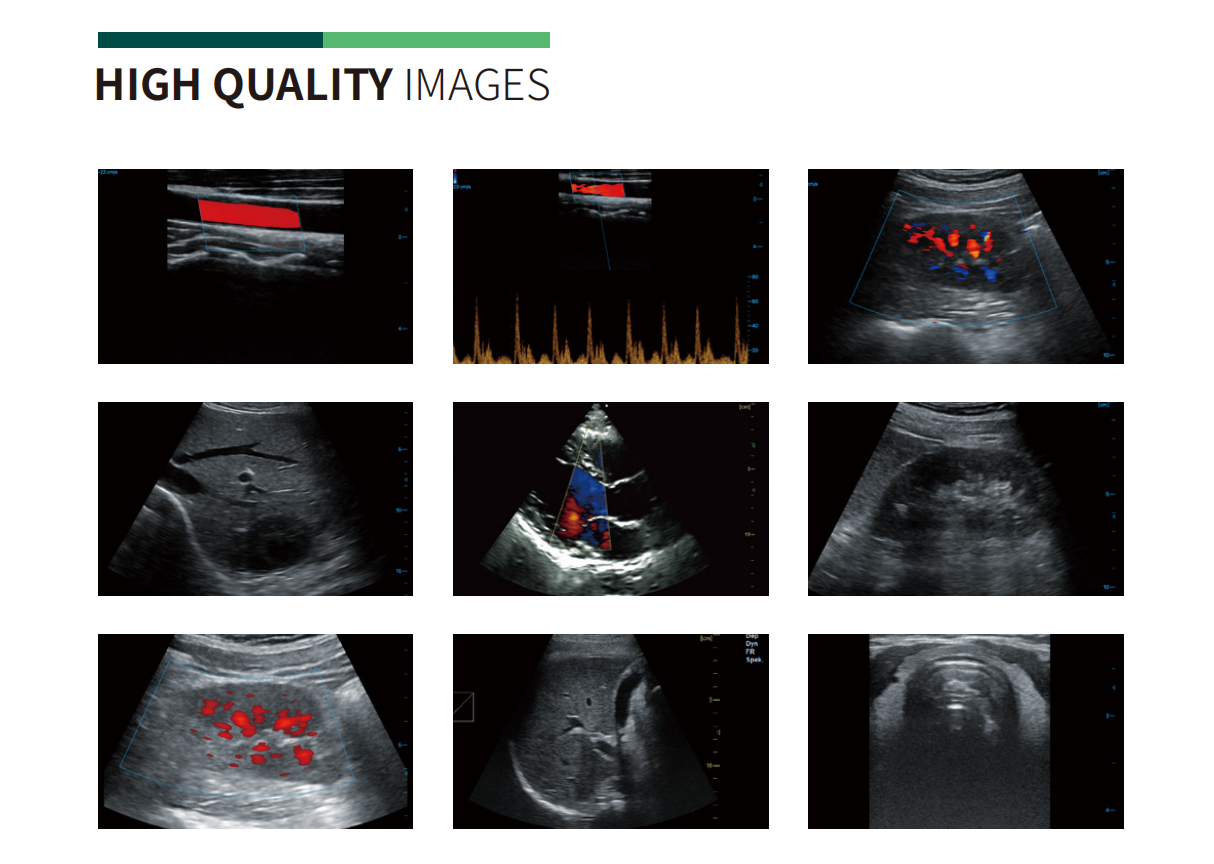

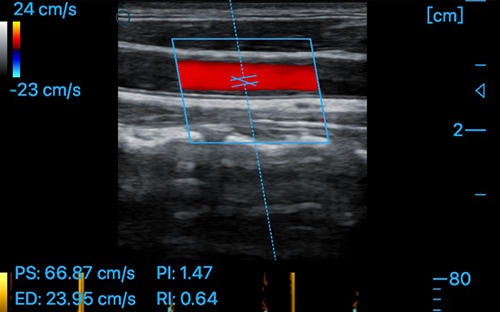

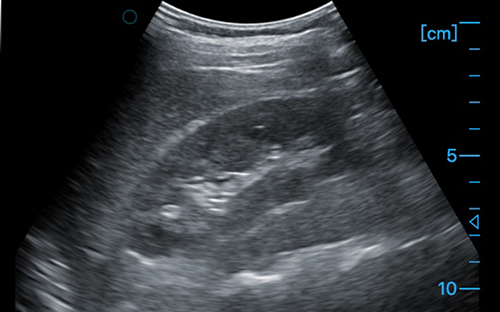

Ultrasound imaging
  • 1d
  • 1d000
  • 1d00
  • 1d0
  • Ultrasound imaging
  • Ultrasound imaging

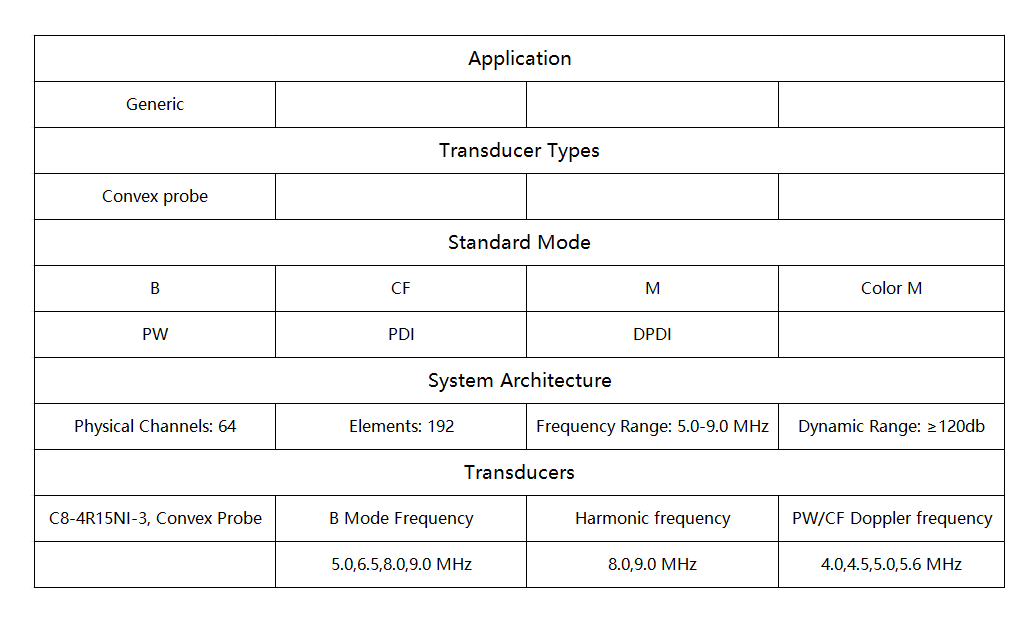

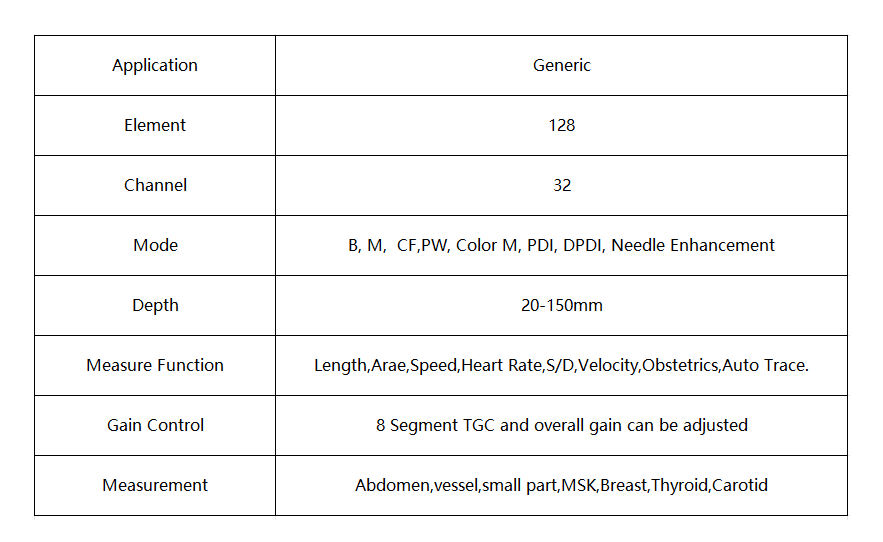

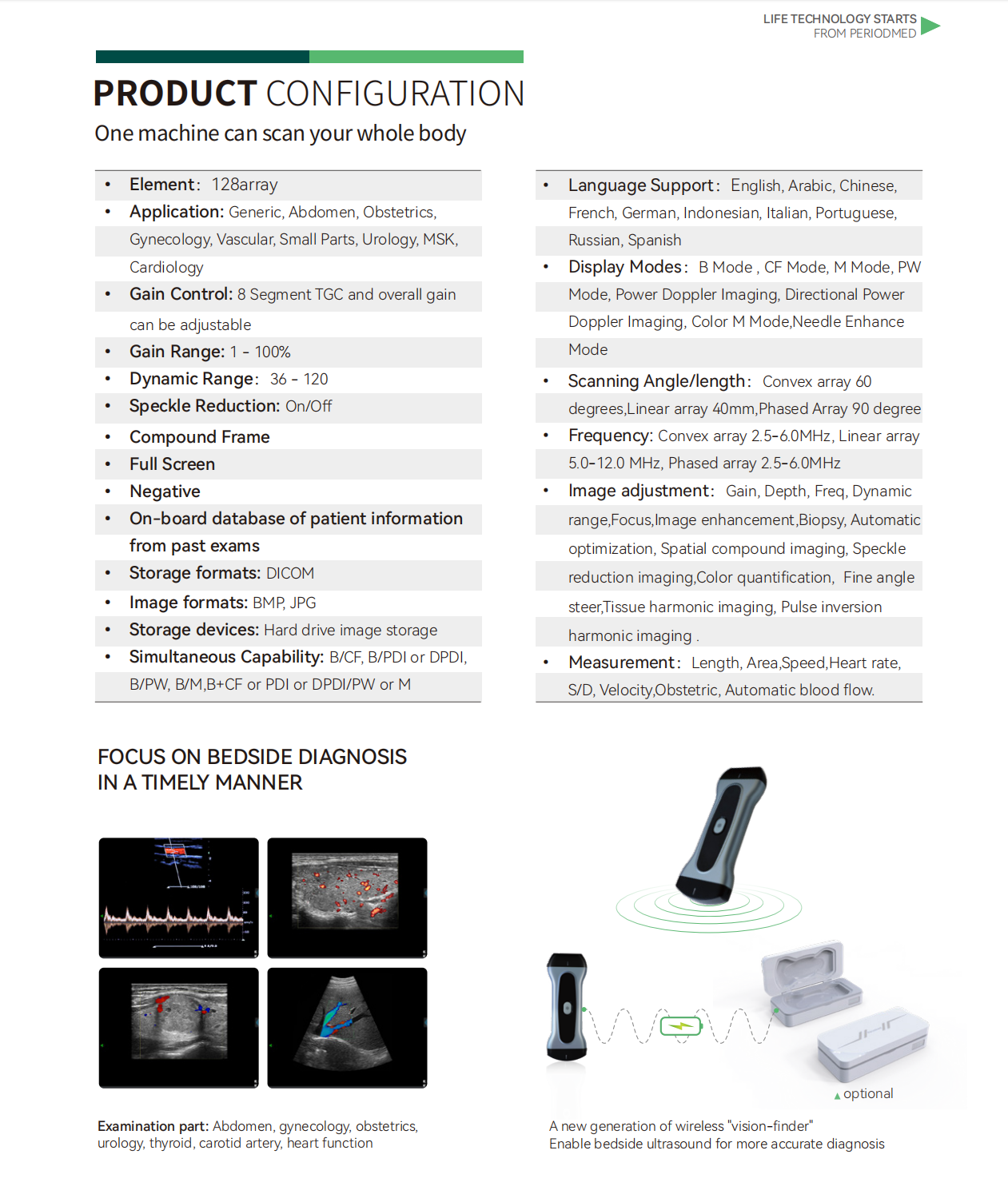

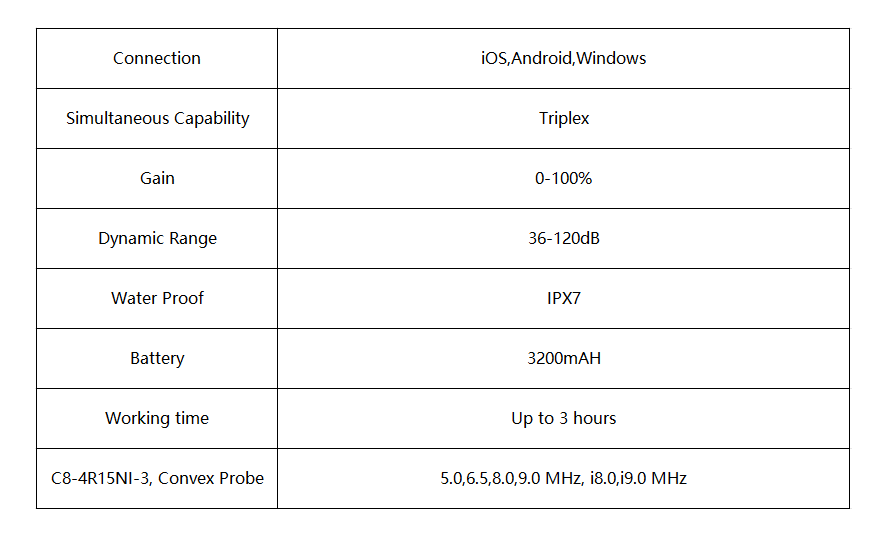

PIU Specification

Element array：

128 64

Transducer types:

Convex probe

Language Support：

English，Arabic， Chinese，French， German，

Indonesian， Italian， Portuguese，Russian，Spanish

Storage formats：

DICOM

Image formats:

BMP, JPG

Storage devices：

Hard drive image storage

Waterproof:

IPX7

Depth:

20-150

Application:Abdomen，vessels，small part，thyroid, carotid MSK, breast.
Mode:B, CF, M, Color M, PW, PDI, DPDI, Needle Enhancement
Gain:1-100%
Dynamic:36db-120db
Focus Number:1
Spot Reduction:-On/Off
TGC:8 Segments
Battery:3200mA
Connection Terminal:Android iOS Windows
Charging Time:30Minutes to 43% / 60Minutes to 100%
Weight:212g

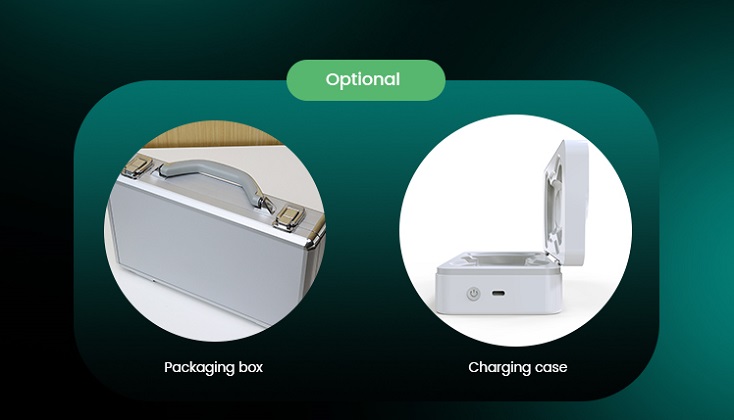

Optional:Wireless charge box
