What's New at A Glance

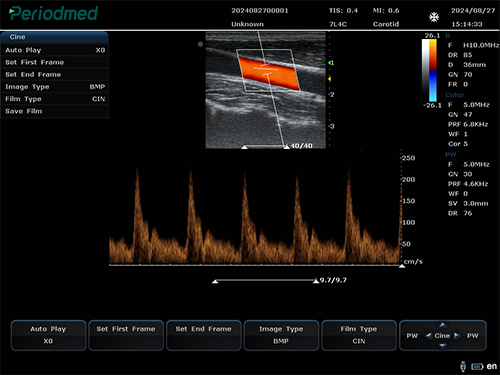

Carotid + CF + PW

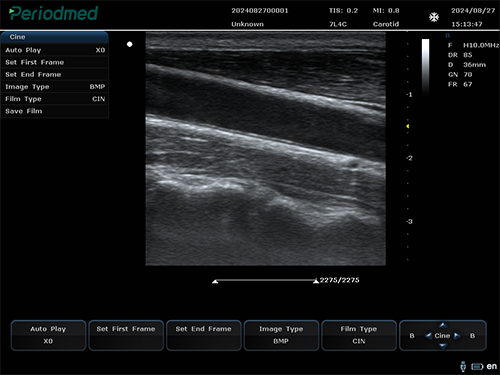

Carotid

Fetal Head

Liver

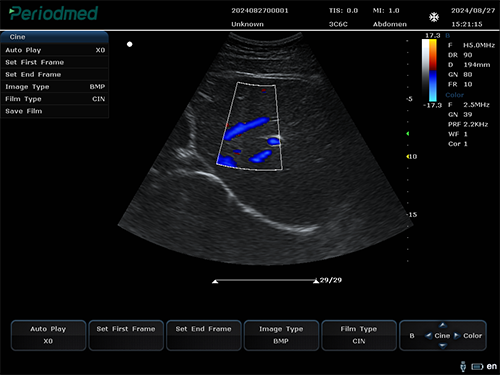

Liver + CF

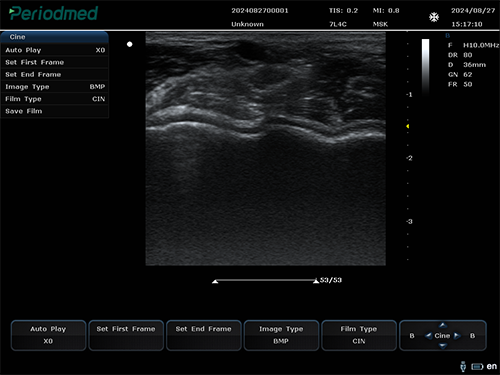

MSK

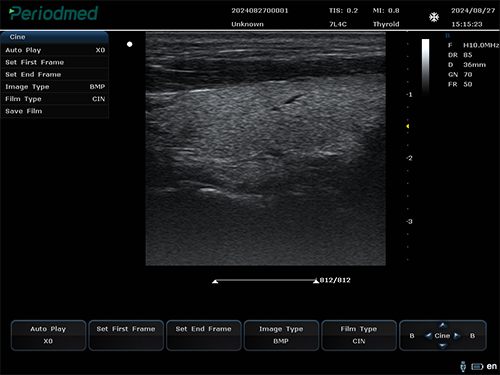

Thyroid

Umbilical Cord + CF

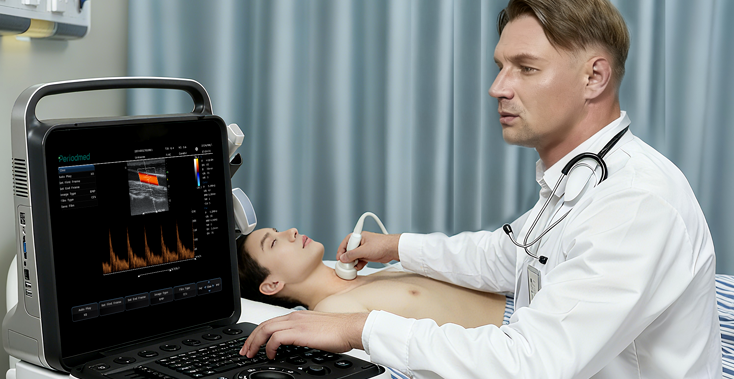

More Comfort for Vascular Ultrasound
PU-P151A Vascular Ultrasound Machine is a powerful tool for doctors to assess blood flow in the arteries and veins. It can be used for noninvasive procedure with high-frequency sound waves that creates real-time images of blood vessels and measure blood flow.

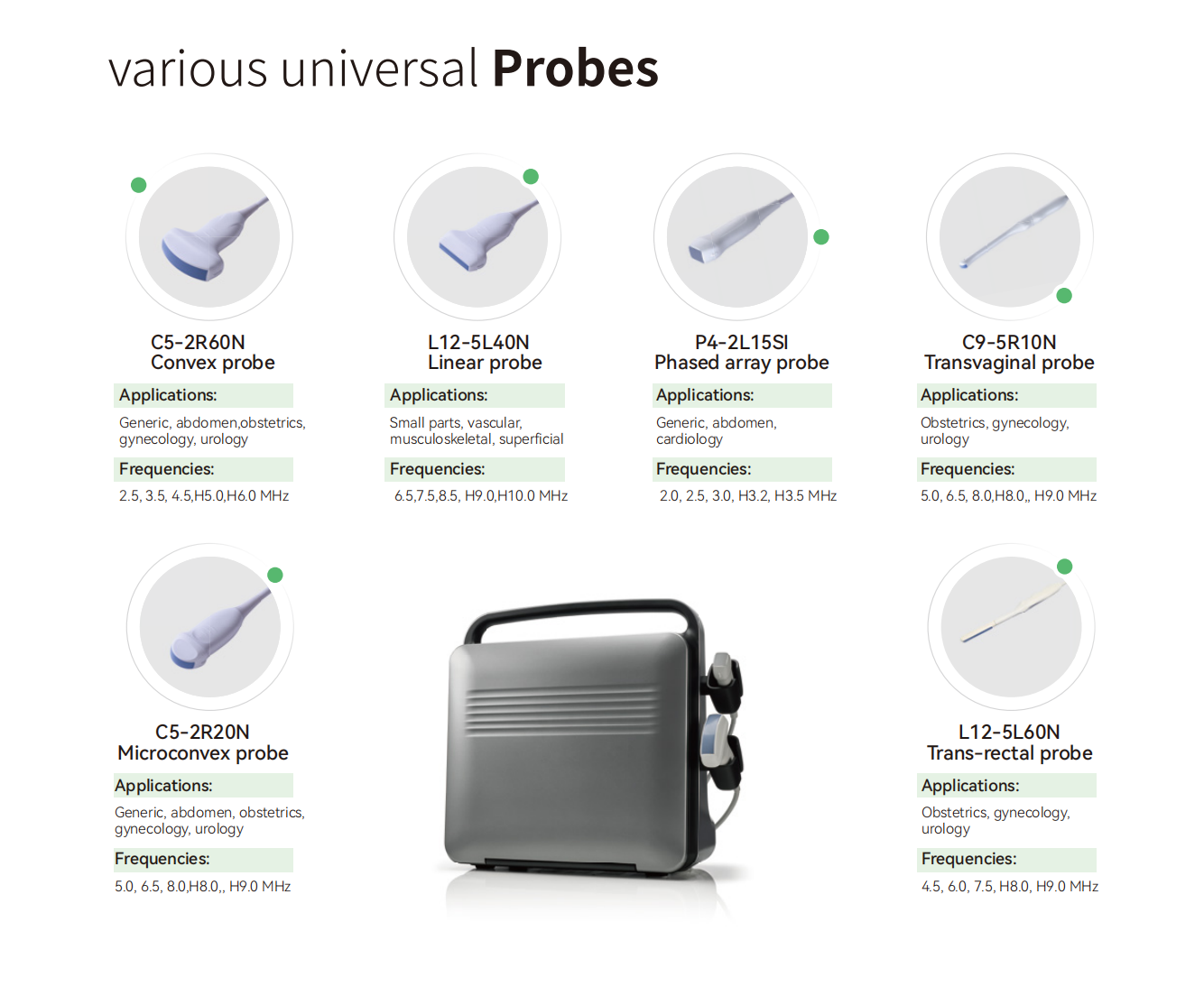

Various Probes with Wide Applications
P151A ultrasound device suits workflow of sonographers or technologists who can apply clear gel on probes to patients' skin over the area of their body being examined and moving a handheld transducer over the region. P151A has various transducers which sends high-frequency sound waves into patients' body. These sound waves echo off blood cells and are sent back to the transducer to be translated into images on a computer screen.

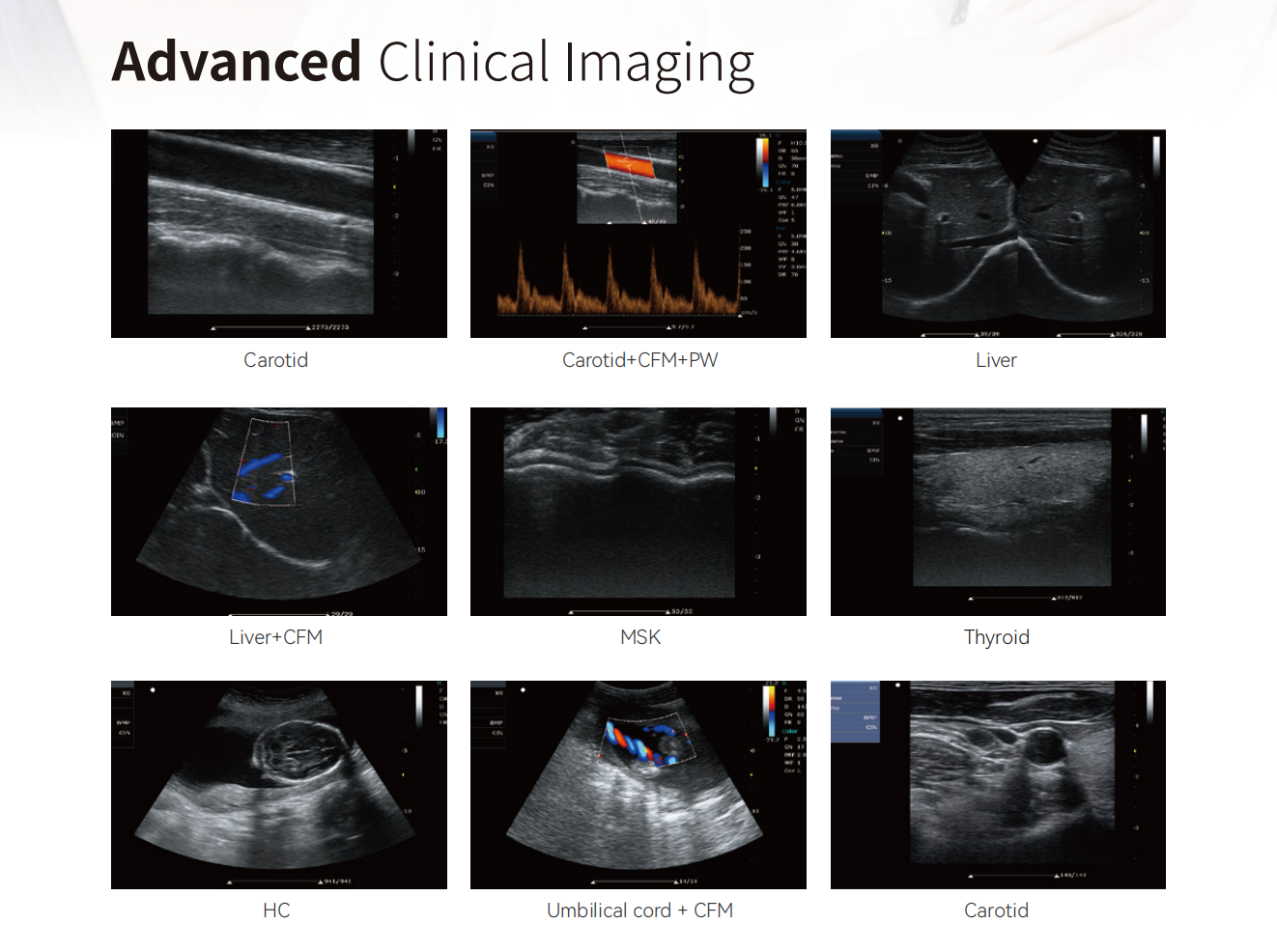

Clear Vascular Ultrasound Imagings
Automatic optimization, Spatial compound imaging, Speckle reduction imaging, Fine angle steer, Tissue harmonic imaging. Graphic and text management system, medical record entry can be classified and searched. Built in workstation,support patient data search and browse. Customized probe parameter settings, one click to call up preset parameters, making operation more convenient.

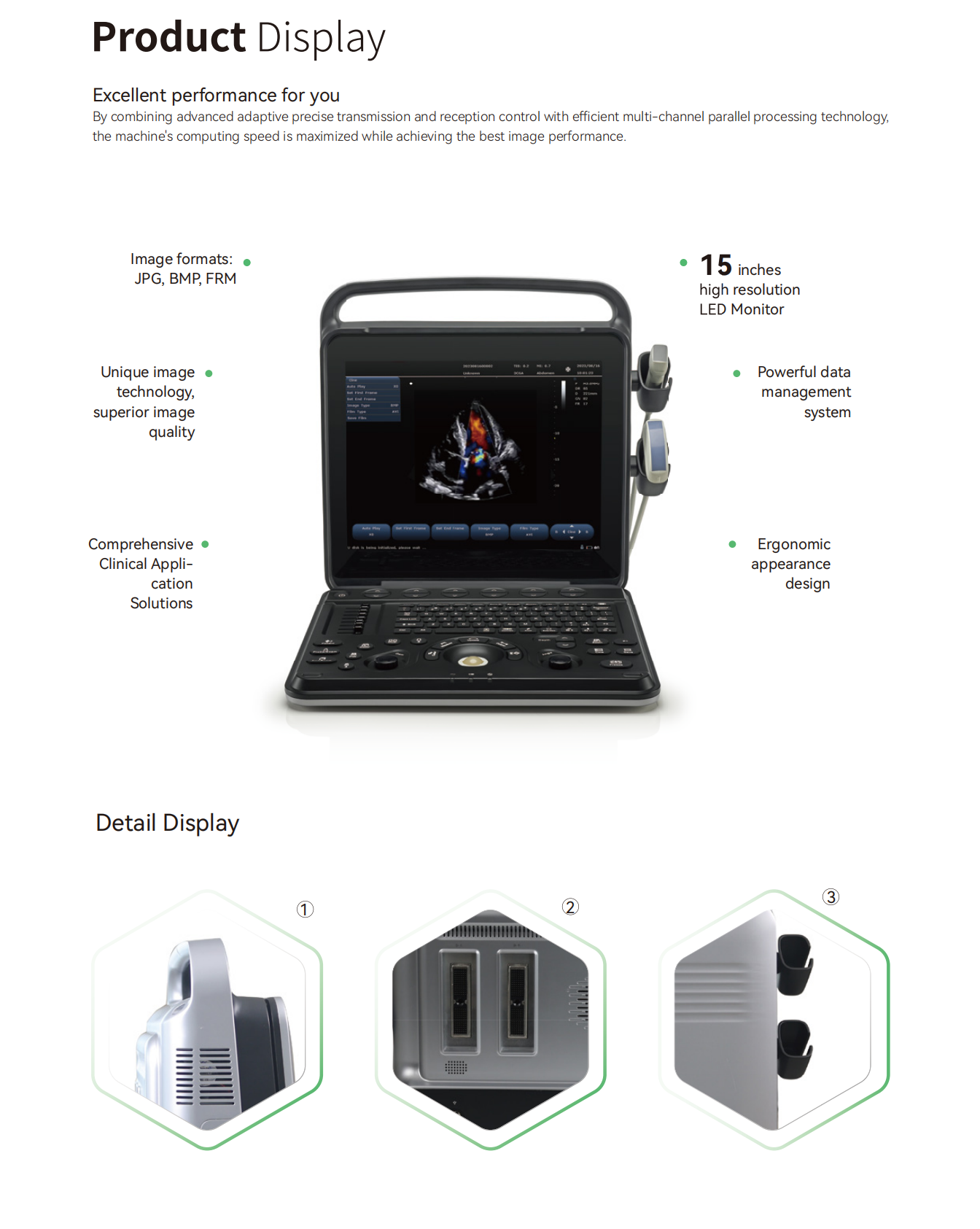

Enhance your work flow with ergonomics

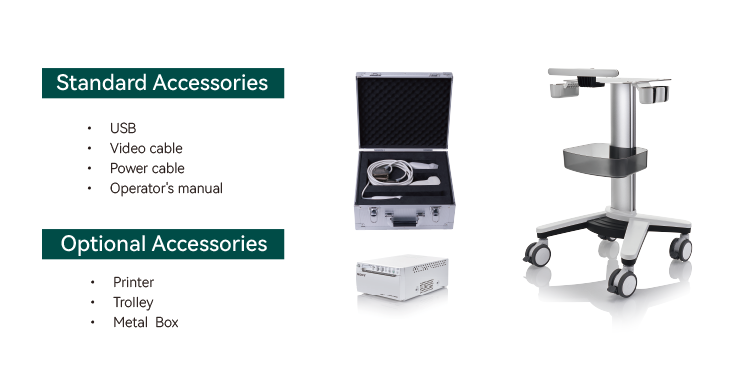

Periodmed PU-P151A ultrasound system is designed to make your imaging task simple and quick while allowing you to scan in a comfortable, patient-engaging position. The system with accessories provides a host of intelligent workflow support and automation tools, helping you to achieve rapid results with consistent high quality regardless of the patient’s condition.

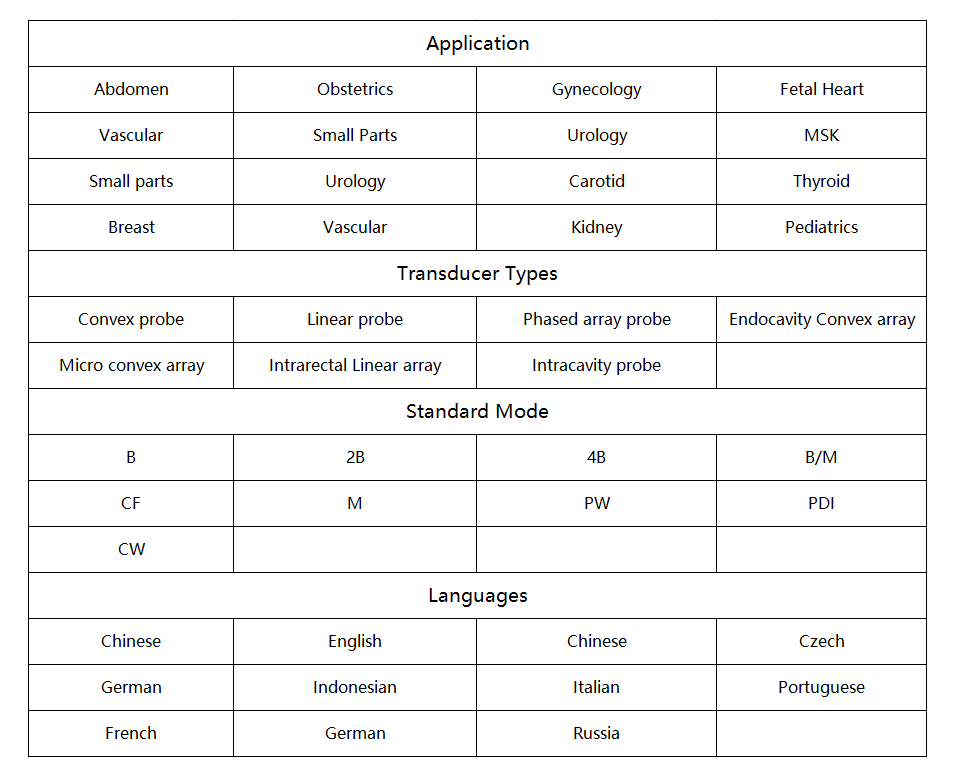

Application
Generic	Obstetrics	Gynecology	Abdomen
Vascular	Small Parts	Urology	Thyroid
Fetal Heart	MSK	Carotid	Breast
Kidney		Pediatrics

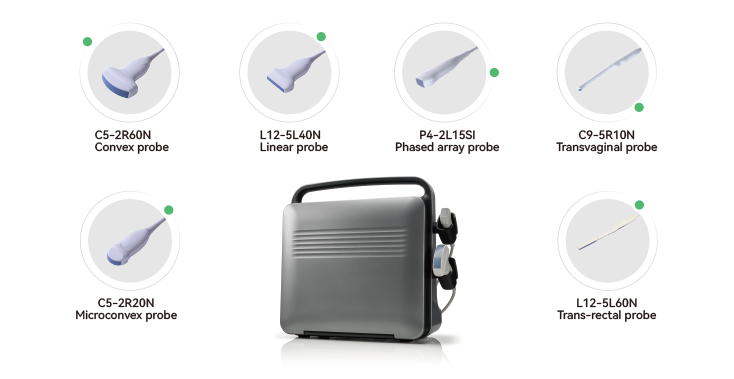

Transducer Types
Convex probe	Linear probe	Endocavity Convex array	Phased array probe
Micro convex array	Intrarectal Linear array	Intracavity probe
Standard Mode
B	2B	4B	B/M
PW	CF	M	PDI
CW

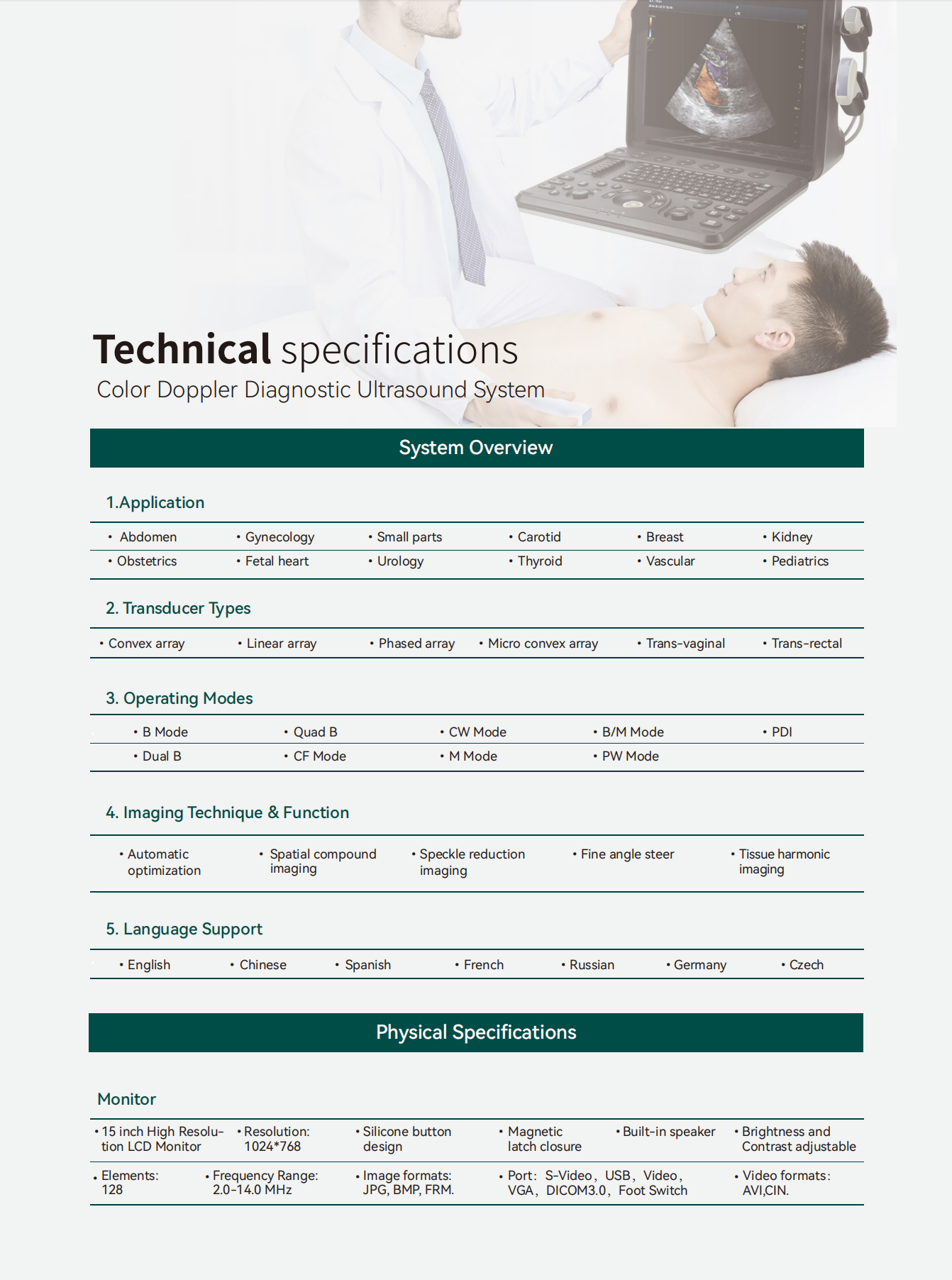

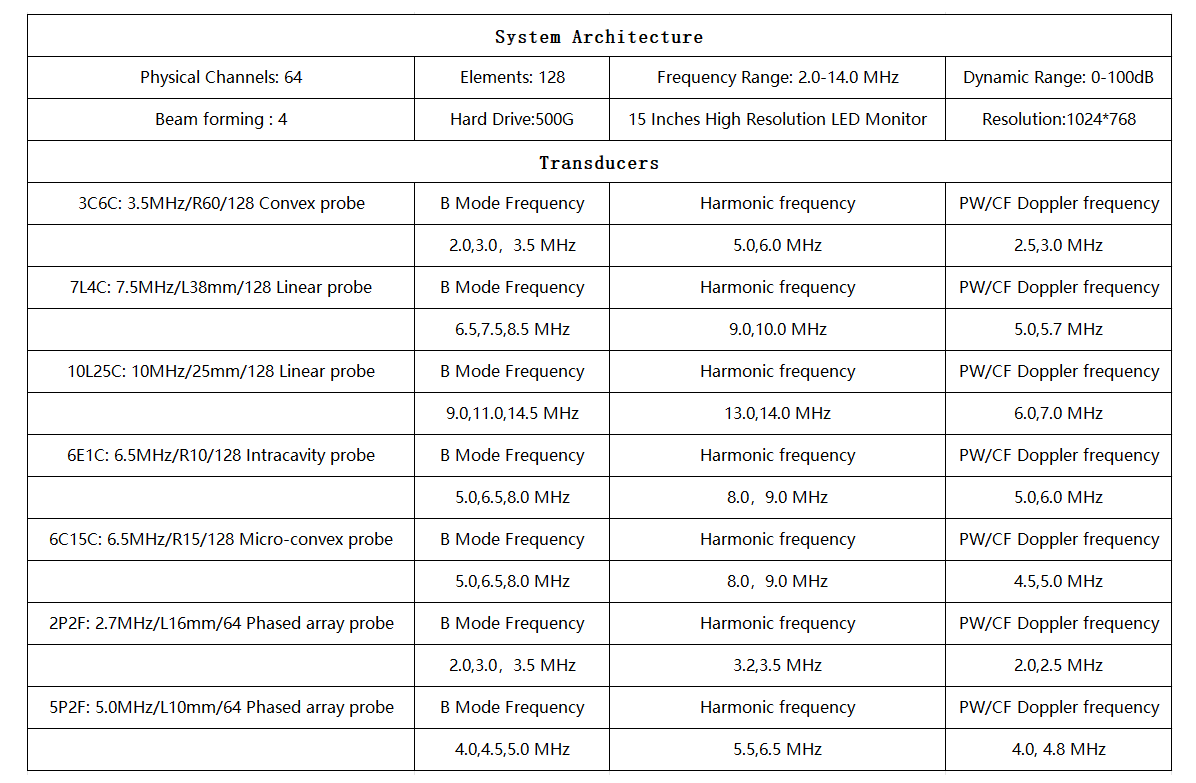

System Architecture
Physical Channels: 64	Elements: 128	Frequency Range: 2.0-14.0 MHz	Dynamic Range: 0-100dB
Beam forming : 4	Hard Drive:500G	15 Inches High Resolution LED Monitor	Resolution:1024*768
Languages
English	Chinese	French	Czech
Spanish	German	Portuguese	Indonesian
Russian	Italian
Transducers
B Mode Frequency	Harmonic frequency	PW/CF Doppler frequency
2.0,3.0，3.5 MHz	5.0,6.0 MHz	2.5,3.0 MHz
B Mode Frequency	Harmonic frequency	PW/CF Doppler frequency
6.5,7.5,8.5 MHz	9.0,10.0 MHz	5.0,5.7 MHz
B Mode Frequency	Harmonic frequency	PW/CF Doppler frequency
9.0,11.0,14.5 MHz	13.0,14.0 MHz	6.0,7.0 MHz
B Mode Frequency	Harmonic frequency	PW/CF Doppler frequency
5.0,6.5,8.0 MHz	8.0，9.0 MHz	5.0,6.0 MHz
B Mode Frequency	Harmonic frequency	PW/CF Doppler frequency
5.0,6.5,8.0 MHz	8.0，9.0 MHz	4.5,5.0 MHz
B Mode Frequency	Harmonic frequency	PW/CF Doppler frequency
2.0,3.0，3.5 MHz	3.2,3.5 MHz	2.0,2.5 MHz
B Mode Frequency	Harmonic frequency	PW/CF Doppler frequency
4.0,4.5,5.0 MHz	5.5,6.5 MHz	4.0, 4.8 MHz

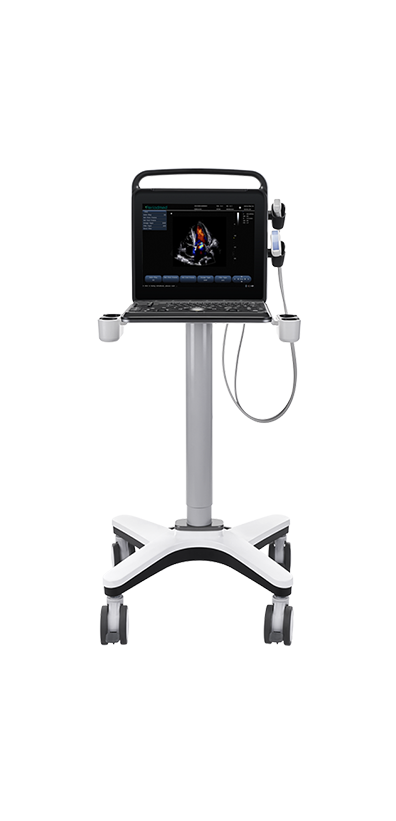

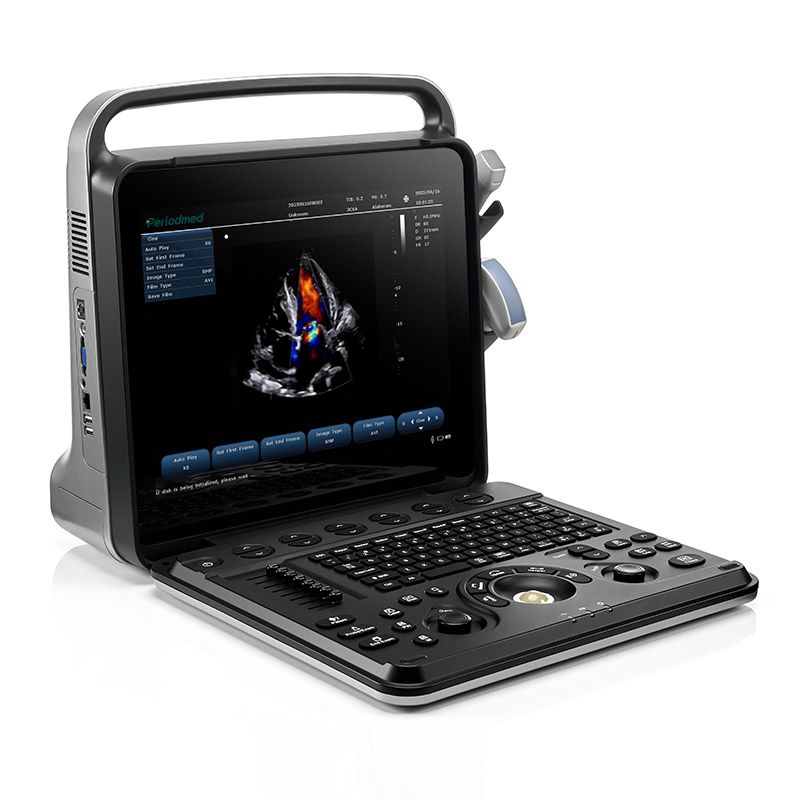

Portable Vascular Ultrasound System PU-P151A
